Fully Automatic Jumbo Roll Wet Wipes Making Machine 30-200 Pieces per Pack

Fully Automatic Jumbo Roll Wet Wipes Making Machine 30-200 Pieces per Pack

This is baby wet wipe production line to produce 30-200 pieces per pack, there are also different models for option according to your actual requirements.

CW-WPZ-12 Fully Automatic Jumbo Roll Wet Wipes Making Machine 30-200 Pieces per Pack

1. Product Parameters

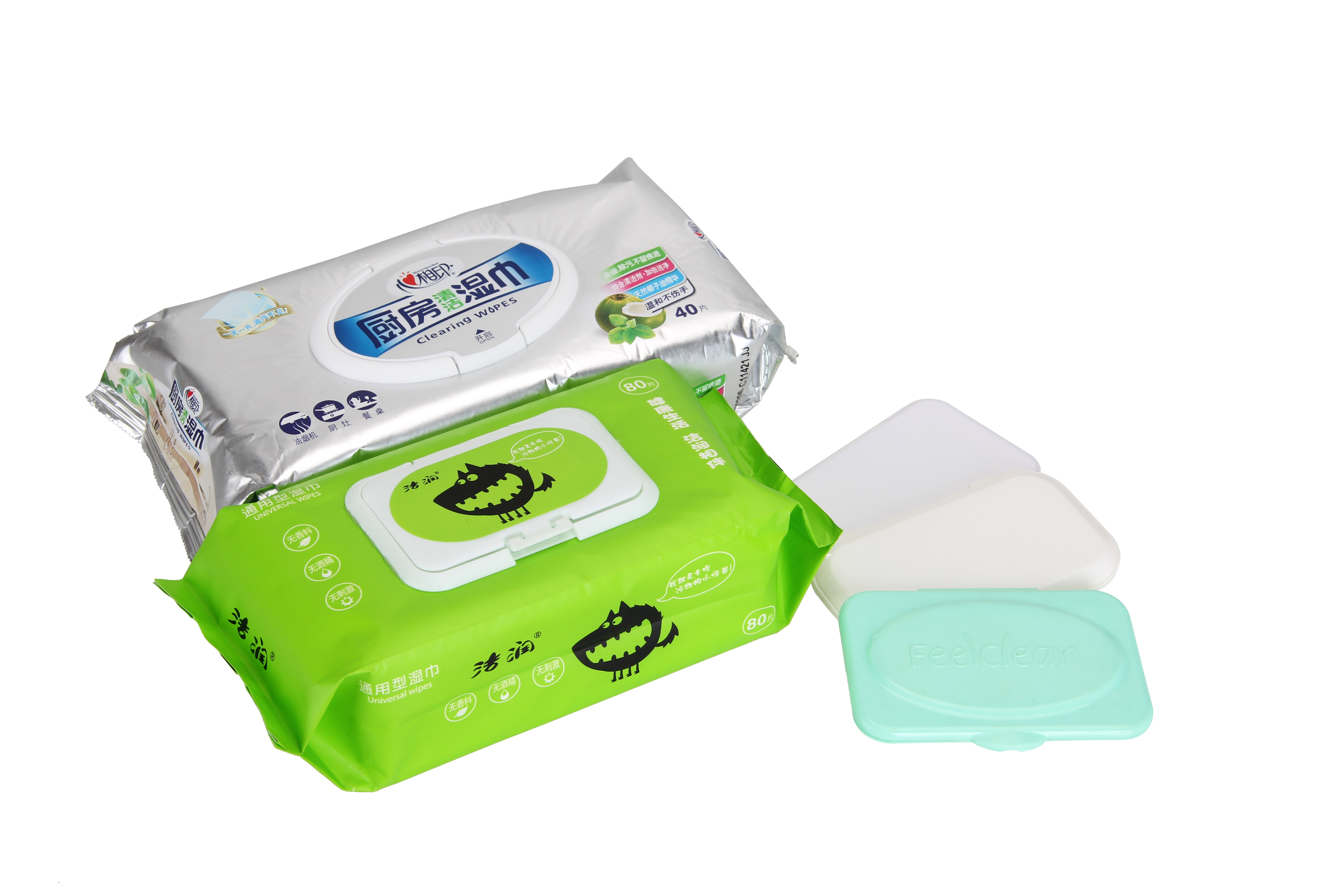

Product type	Baby wipes, dress up wipes, lady wipes, cleaning wipes
Product speed	400-500cuts/min
Suitable materials	Spunlace non woven; Hot-rolled fabric
GSM	40 - 80g/m2
Working voltage	380V 50HZ
Power	20KW
Raw material width(mm)	1000-1320
Slitting line	6,12,16,20 lines
Unfolded size(mm)	(120-300)×(150-300)(L×W)
Folded size (mm)	(120-300)×(90-120)(L×W)
Folded type	"Z","C""N" Pop up or Non-Pop up(adjustable)
Counting mode	Counting automatically,automatic adjustable stacking system

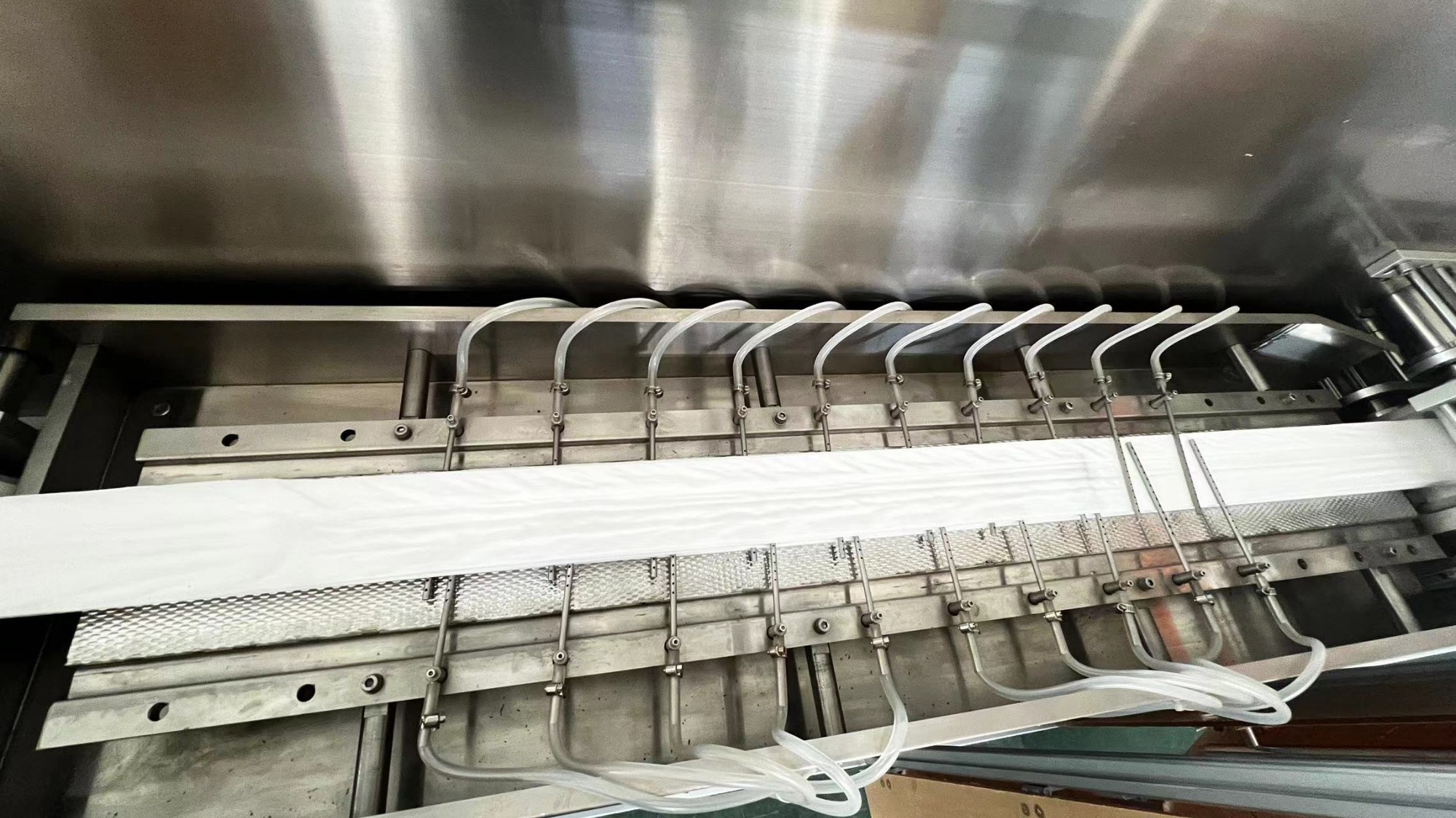

Wetting system	Double tanks with agitators

2. Product Description

1- Drive mode:Adopted step motor , Servo motor and frequency conversion combination.

Main drive shaft adopted couple jointer.
Rear driving by time belt and time wheel.
Adopted widen time belt for high tension suffered parts.

2- Control system:

Delta PLC control system.
Auto control function.

3- Operation mode: adopted operating interface. To press the programmable menu for every operation. Every dates can be easily adjusted, recorded and seek.

Auto checking for product convey, when any of the raw materials lacking or breaking off, the machine can be shut off automatically at the shortest time to decrease the defective.
Product conveying: Adopted imported convey belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation.

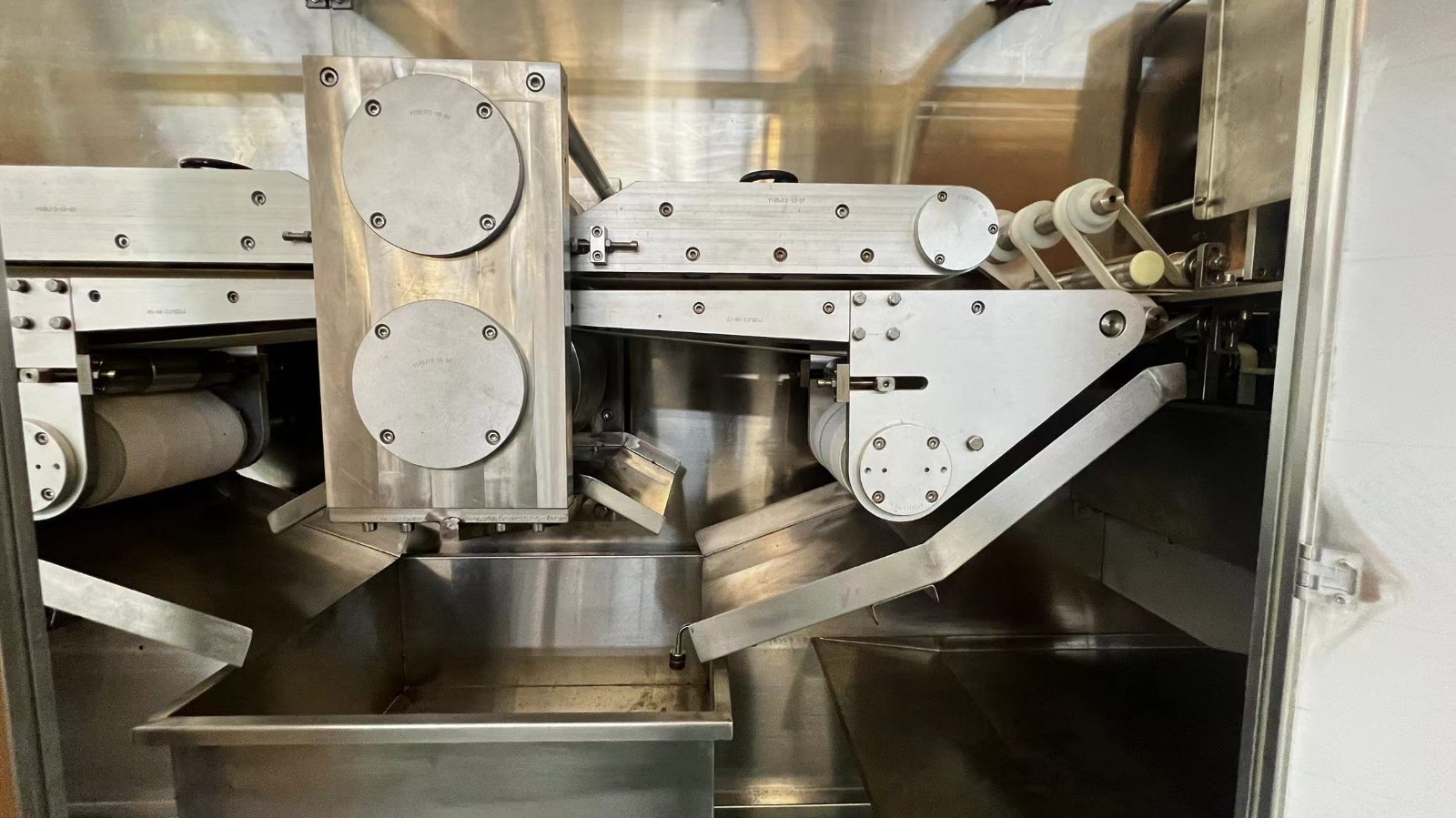

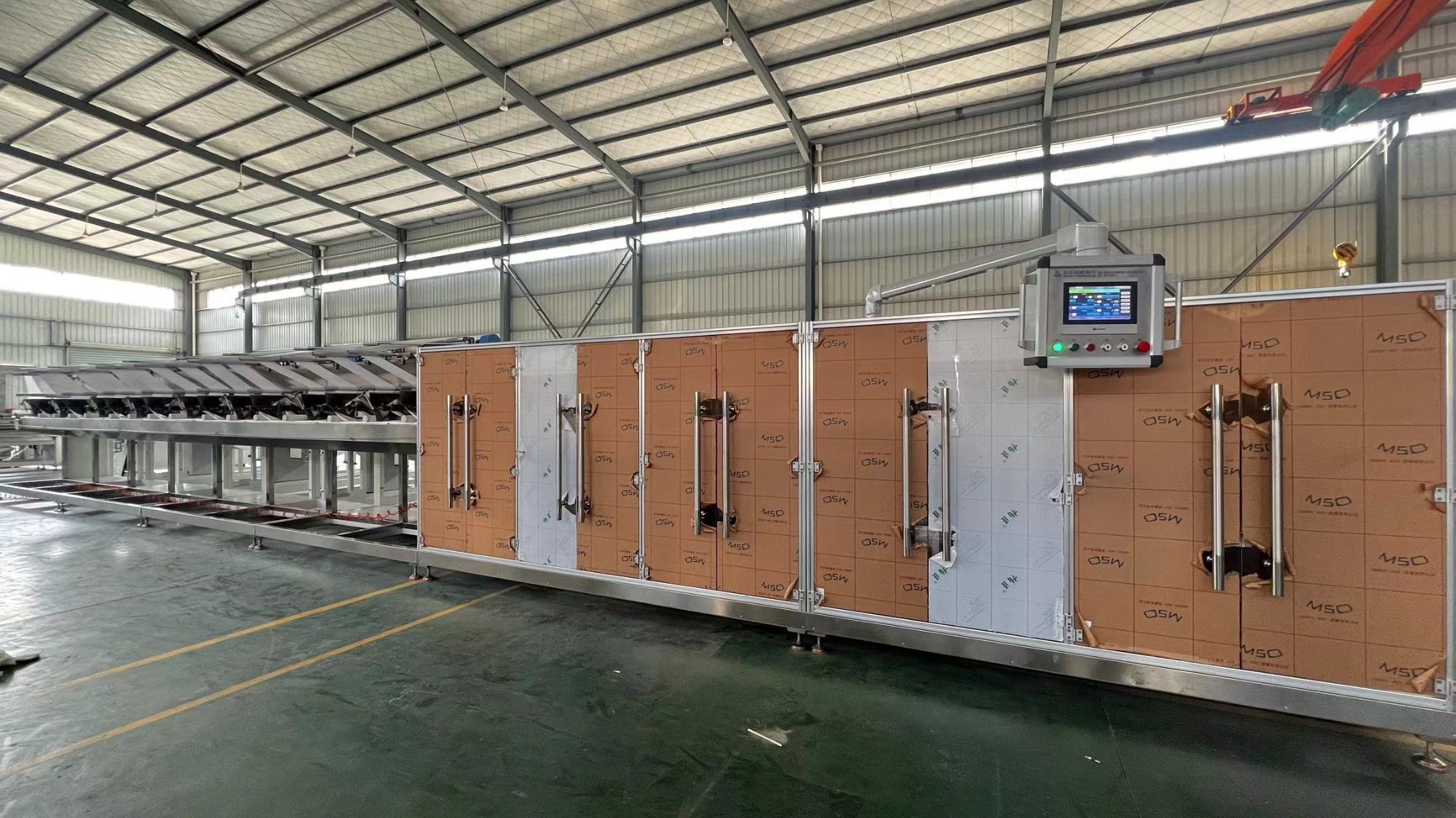

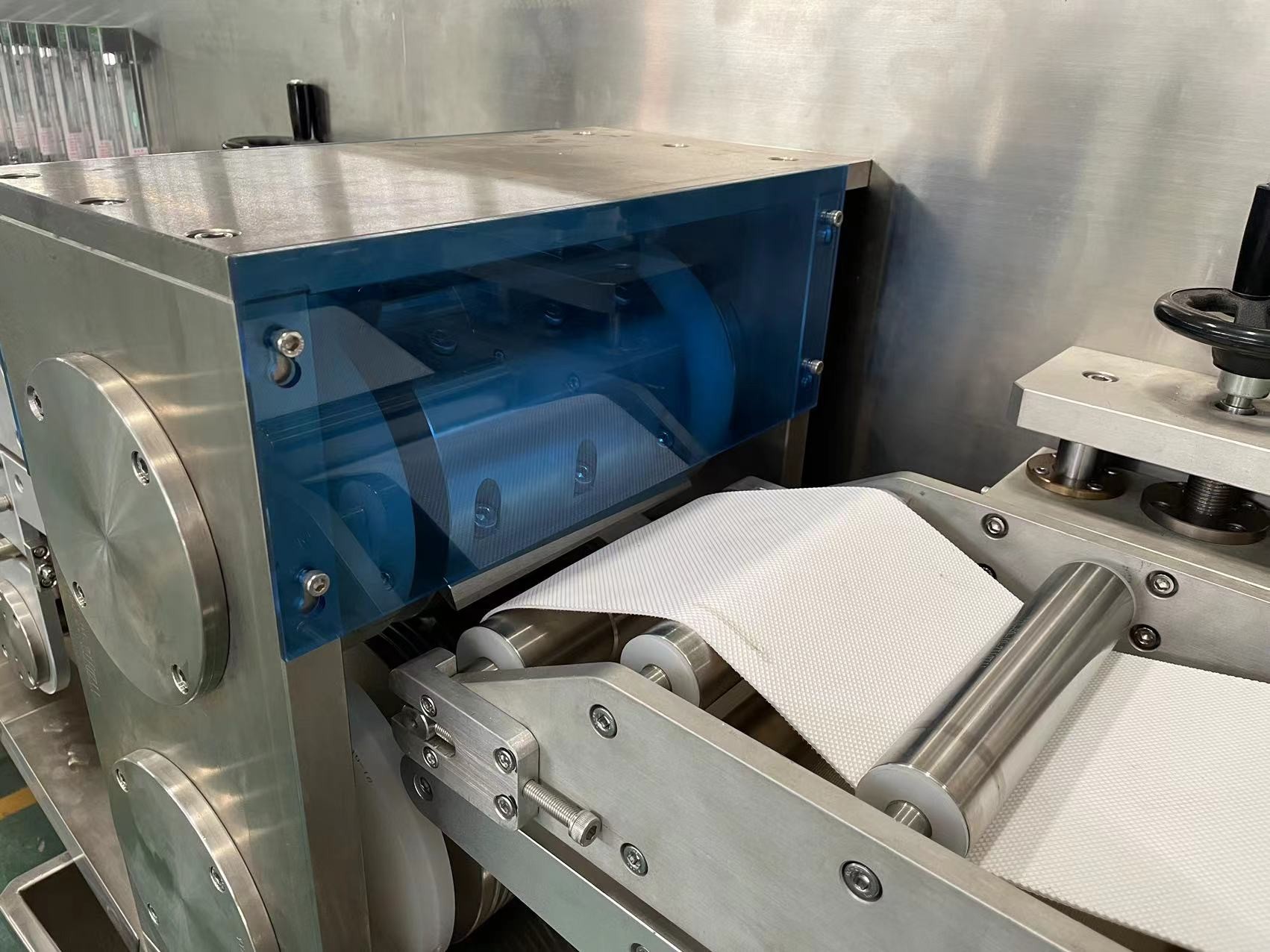

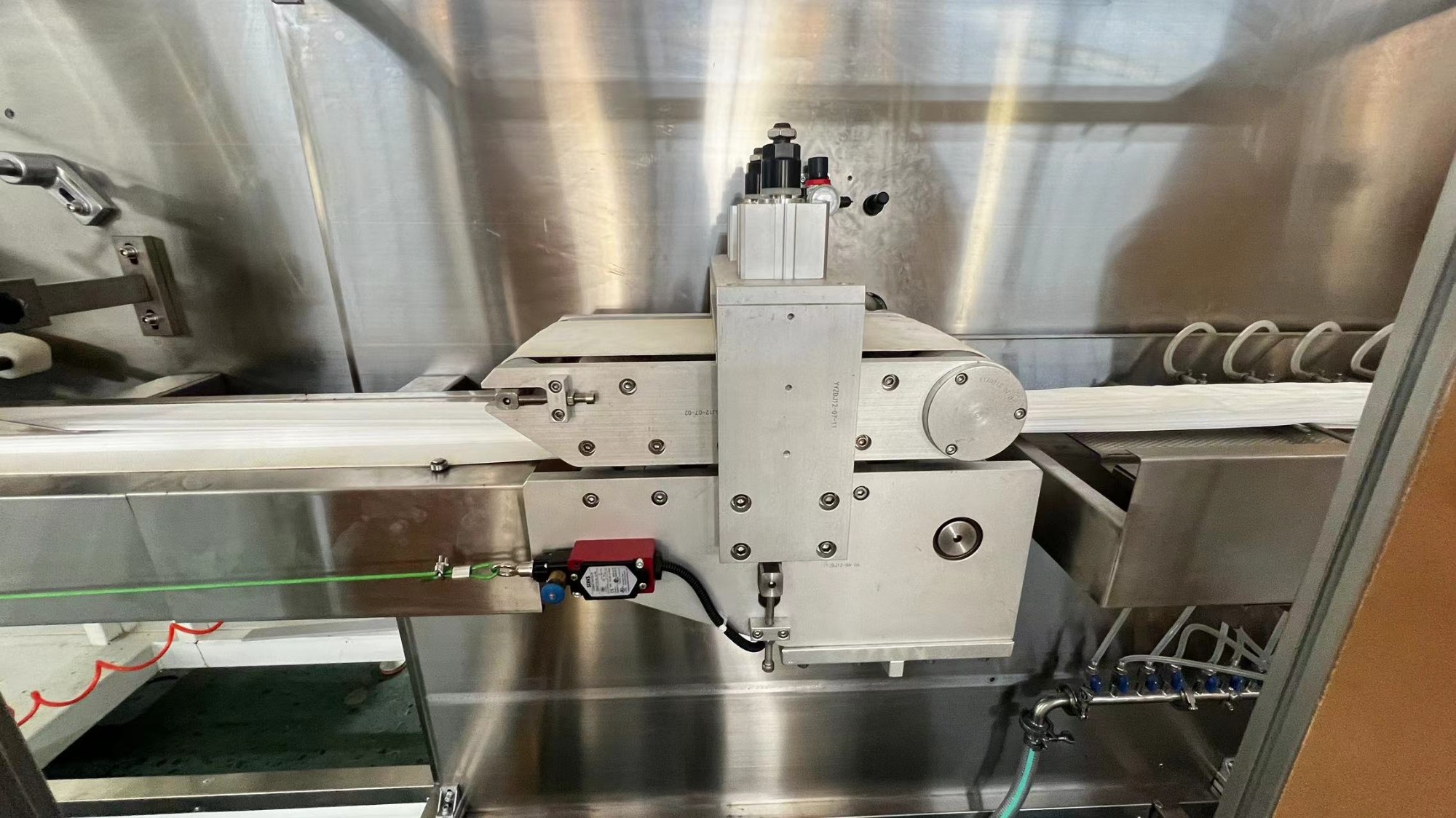

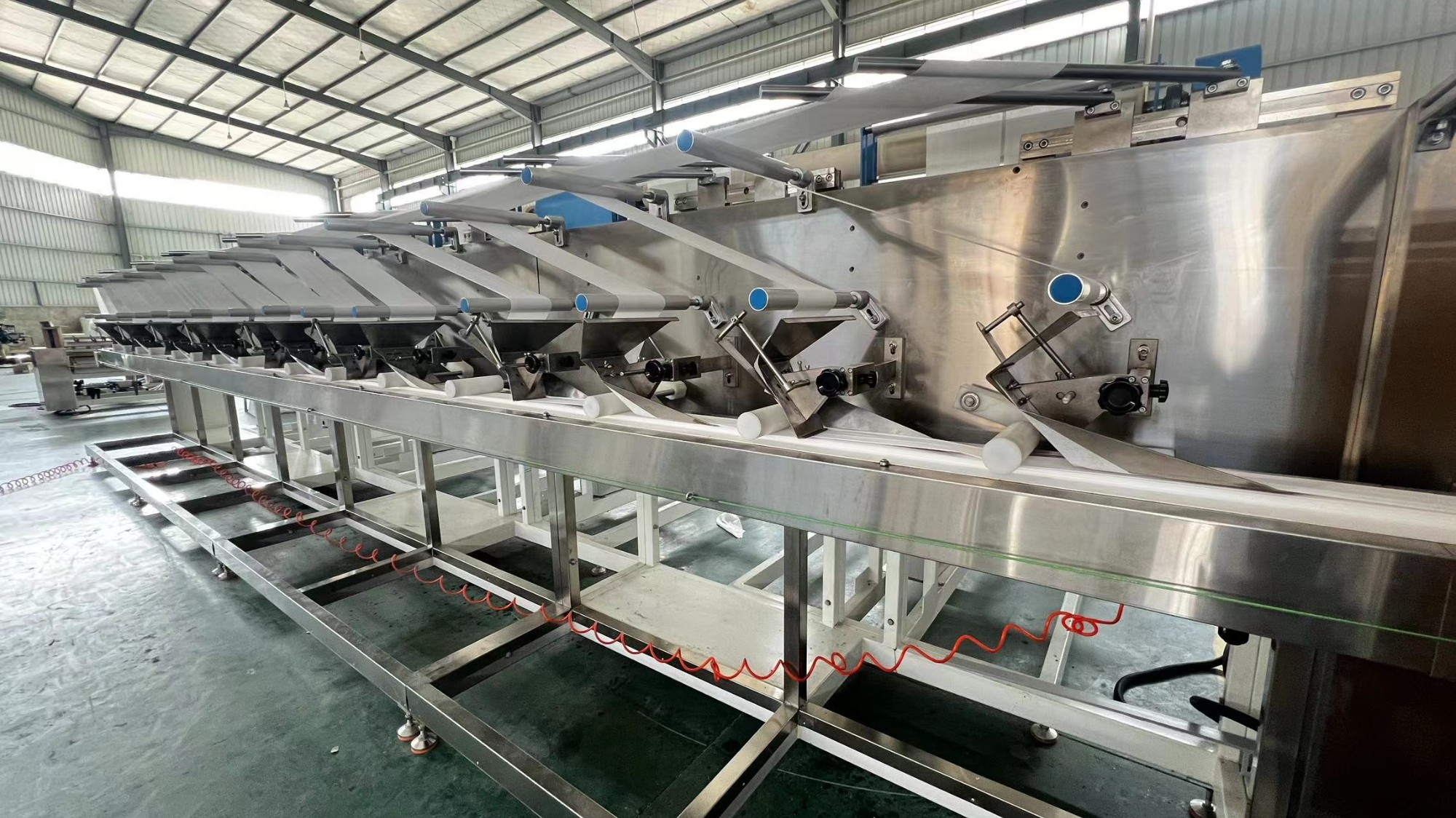

3. Detailed photos
