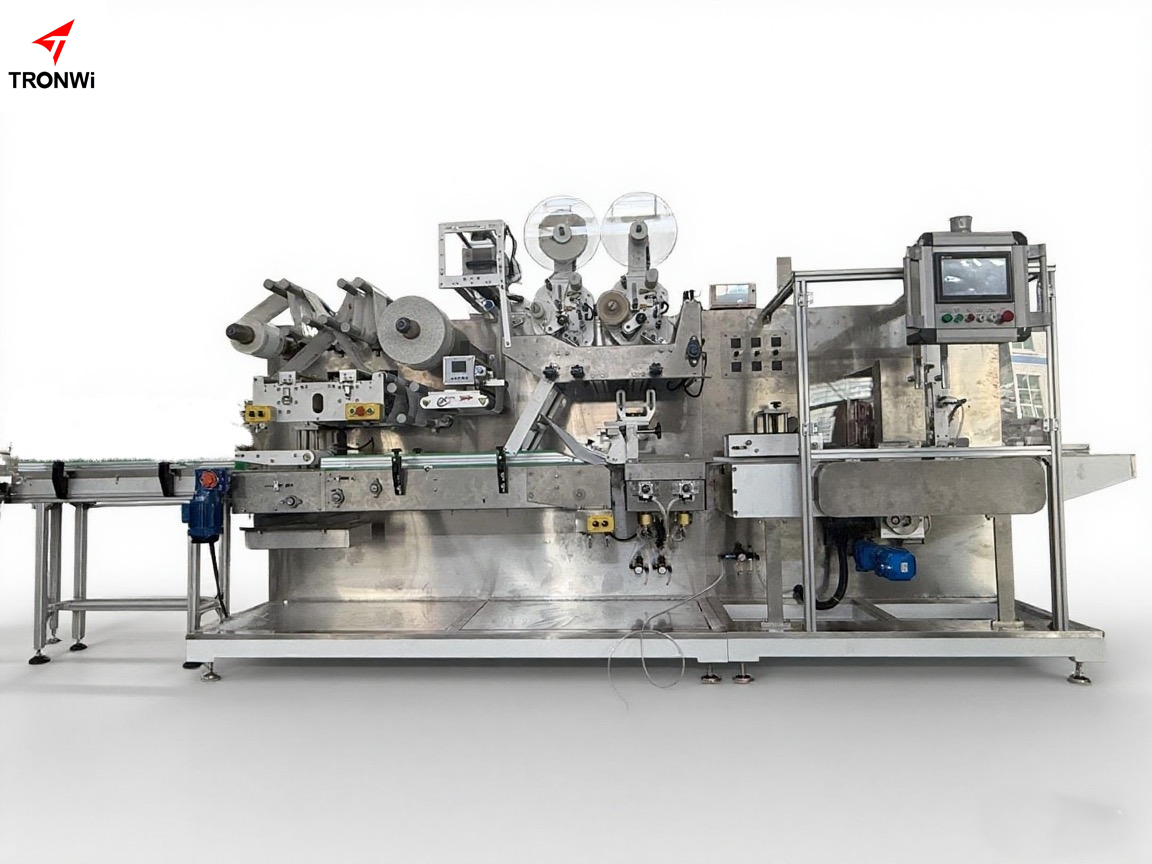

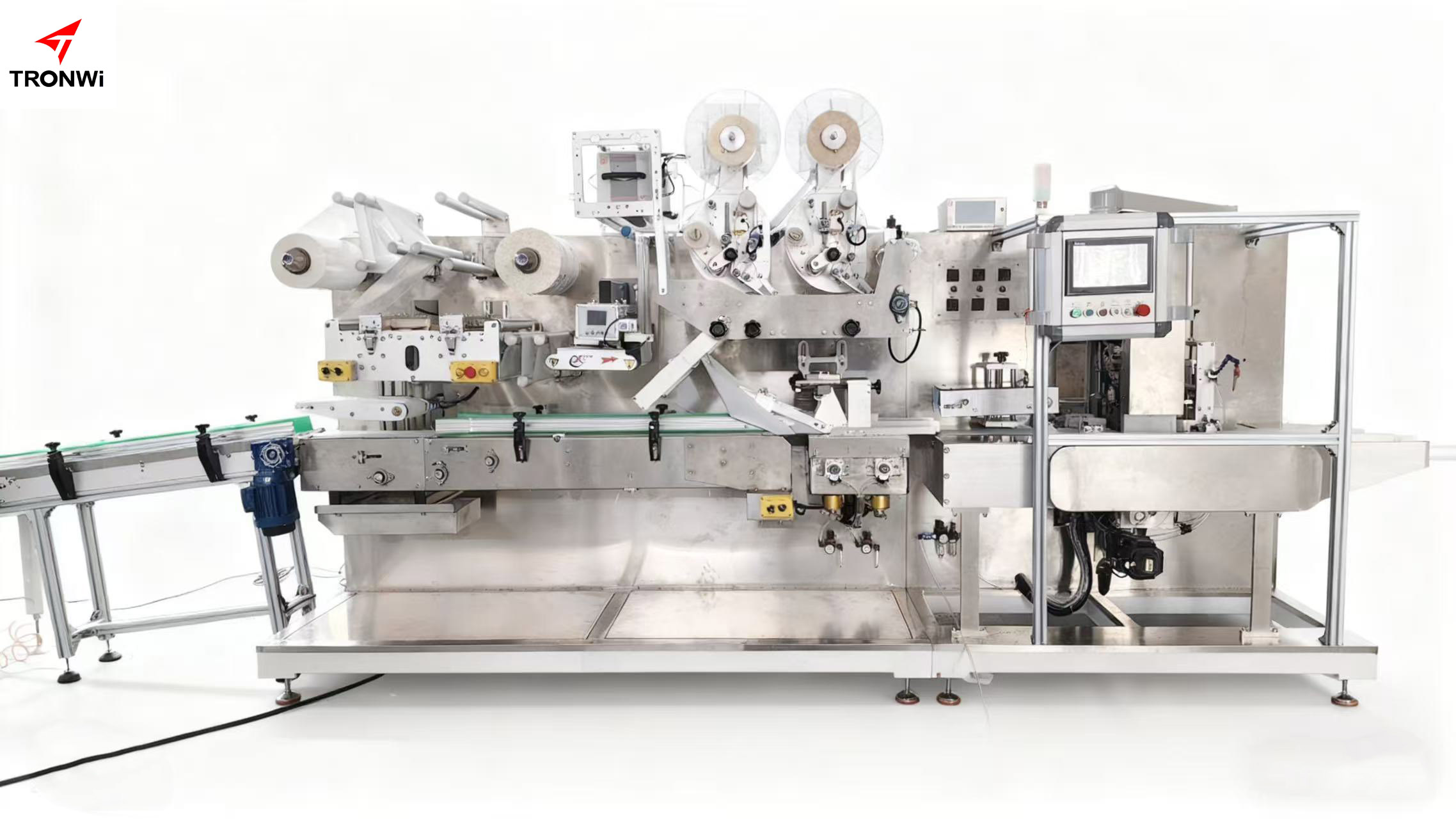

Fully automatic baby wet wipes packing machine

CW-WF80 Fully automatic wet wipes packaging machine

Main technical parameters

1. Packaging materials: ET/PE BOPP PET/AL/PE and other heat-sealing materials.

2. Film core diameter: 3" (76.2mm) international standard.

3. Film roll number setting: 2 film rolls. One roll is running and the other is on standby.

4. Film specifications: maximum width 450mm, roll diameter <360mm

5. Packing size: L150-380mm W80-140mm H10-100mm

6. Applicable labels: transparent labels, untransparent labels (metal foil labels are optional)

7. Roll number setting: 2 labeling devices (can run at the same time or automatically switch running)

8. Label size: L50-150mm W20-90mm

9. Naked eye size: L10-70mm W10-50mm

10. Design speed: 80 packs/minute

11. Production speed: 40-75 packs/minute

12. Working voltage:  AC380V, 50/60HZ

13. Power: 28KW

14. Air consumption: 0.6-0.8Mpa

15. Machine size: L5045mmx W1211mmx H2116mm

16. Machine weight: about 15,000 kg

17. Electronic control: Delta full servo drive

18. System: Delta motion control system

19. Date: ink wheel printer

20. Deviation corrector
