Fully Automatic Baby Wet Wipes Production Line with Auto Splicing System

Fully Automatic Baby Wet Wipes Production Line with Auto Splicing System

This is baby wet wipe production line in same paper core with twin spunlace non-woven, auto raw materials splicing, to save labor cost and improve efficiency.

CW-SL-12 Fully Automatic Baby Wet Wipes Production Line (30-200 pieces)

1. Product Parameters

Product type	Baby wipes, dress up wipes, lady wipes, cleaning wipes
Product speed	400-500cuts/min
Suitable materials	Spunlace non woven; Hot-rolled fabric
GSM	40 - 80g/m2
Working voltage	380V 50HZ
Power	28KW
Raw material width(mm)	Max W220mm x 2, <D1200mm,two independent rolls in one reel shaft
Slitting line	12,16,20 lines
Unfolded size(mm)	L100-360mm W160-220mm
Folded size (mm)	L100-200mm, W80-150mm H20-120mm
Folded type	"Z","C""N" Pop up or Non-Pop up(adjustable)
Counting mode	Counting automatically,automatic adjustable stacking system
Packaging materials	PET/PE BOPP PET/AL/PE and other hot sealable materials
Film specifications	Max W450mm, <360mm
Package size	L150-380mm W80-140mm H10-100mm
Label size	L50-150mm W20-90mm
Open hole size	L10-70mm W10-50mm
Wetting system	Double tanks with agitators
Dimension	L20000mm W3600mm H2300mm
Weight	About15000KG

2. Product Description

Raw materials rolls loading -> Automatic unwinding- Auto-splicing Auto-tension control -> Folding fabric - Traction conveying- Wetting ->Traction conveying- Cutting - Stacking Diversion -> Conveying -Automatic packing- Automatic - Automatic labeling -> Heat sealing and cutting -» Automatic angle insert -> Automatic exhaust -> Final product output- Lid applicator

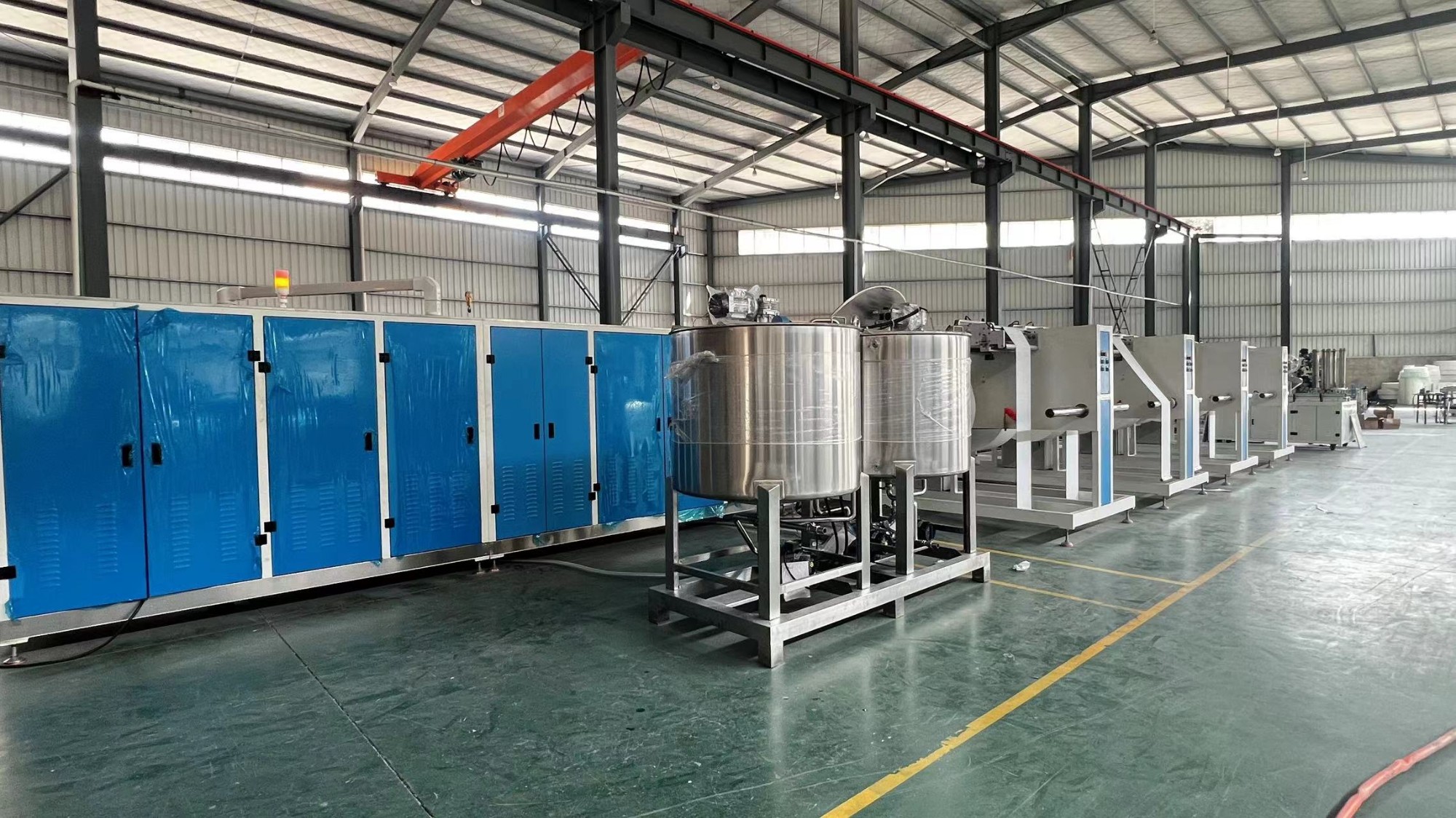

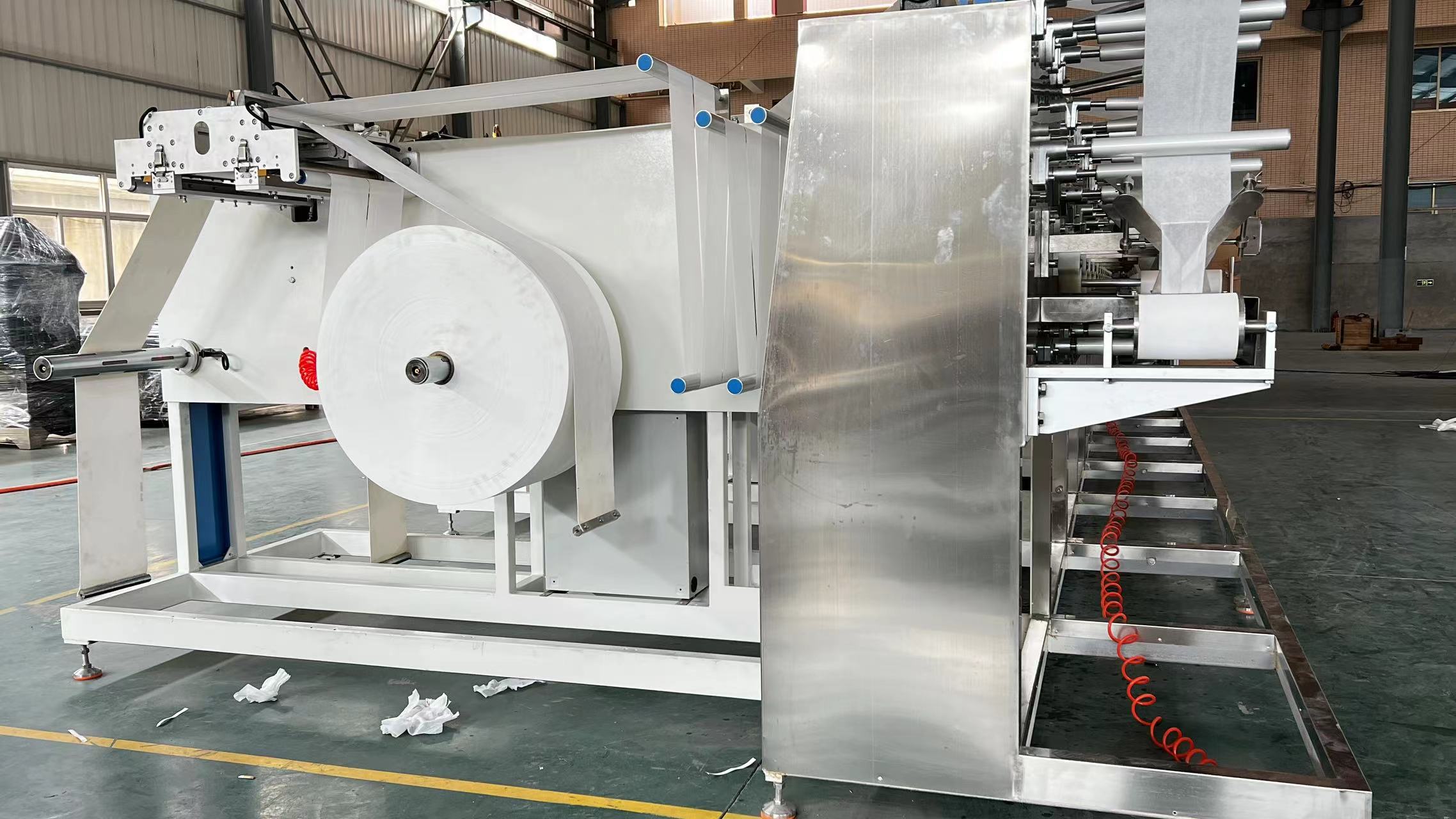

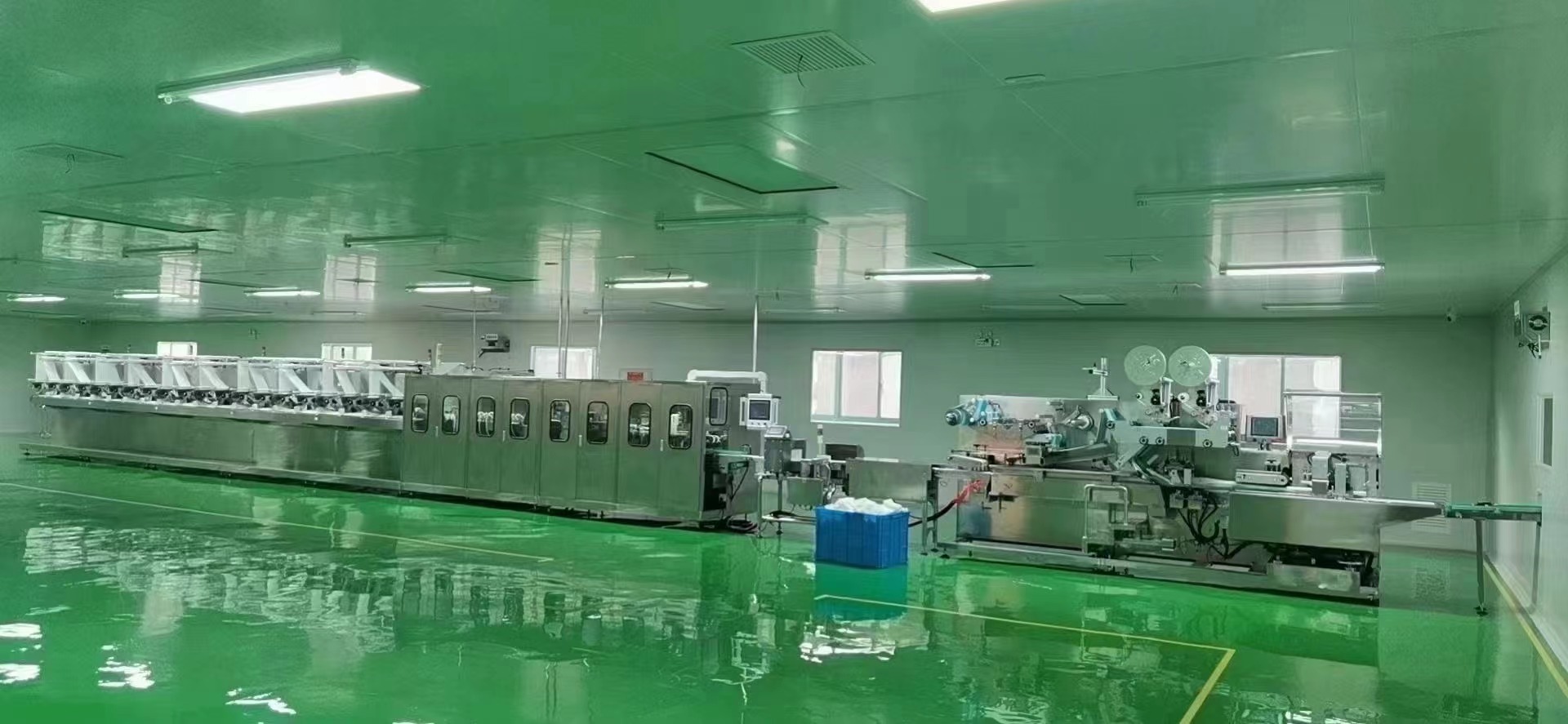

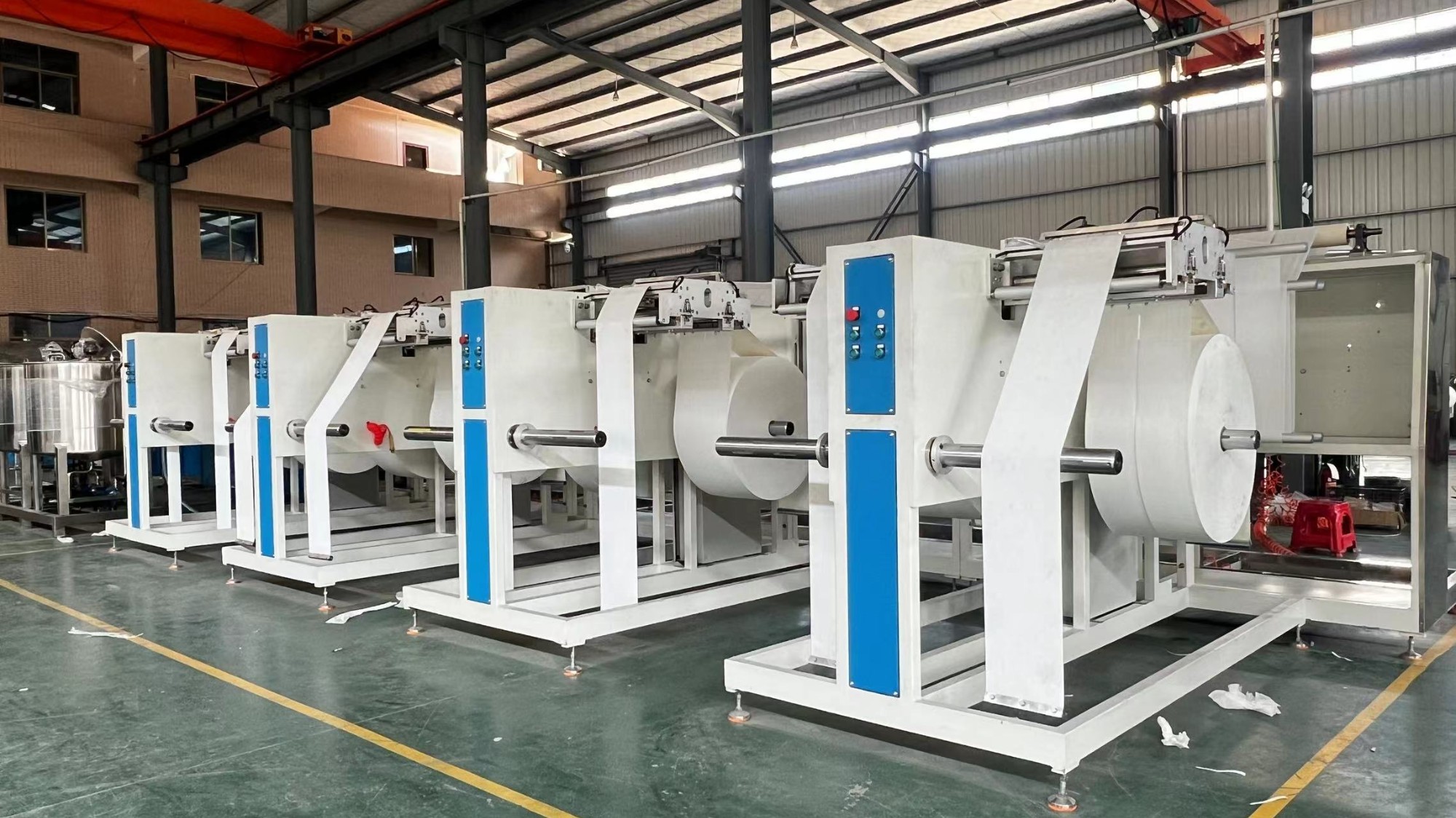

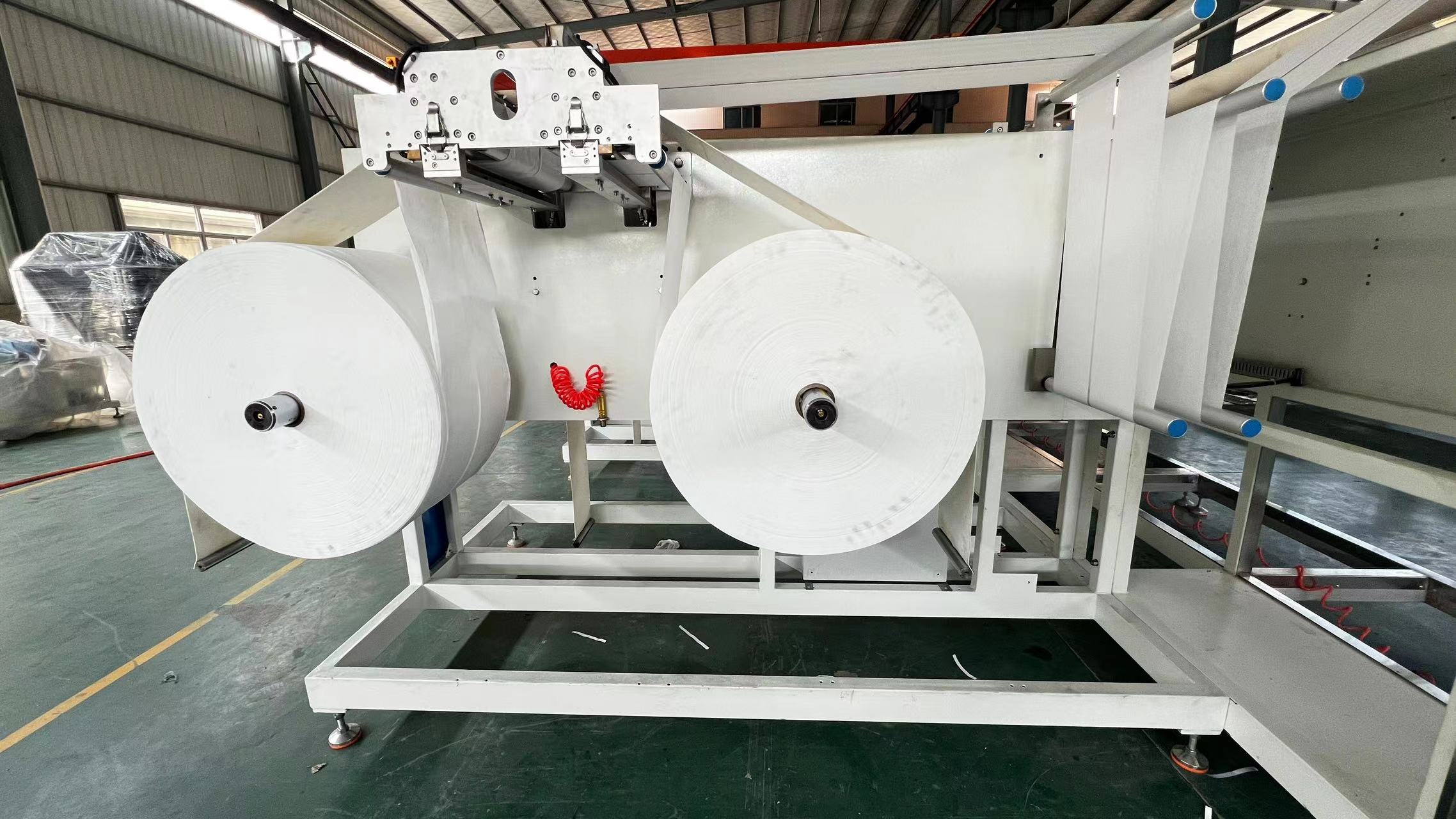

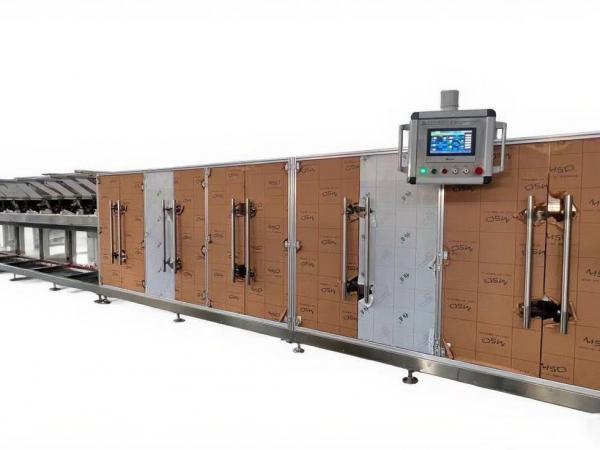

3. Detailed photos
