1 Low Electric Consumption, high efficiency and productivity, easy to operate.
2 Linear movement design.
3 Reliable electrical and pneumatic parts.
4 The squeegee works in two modes---front stop and back stop.
4 The printing speed is adjustable as your requested.
5 Machine with air blow.
CW- SAM Single Working Stations Semi-Auto Balloon Printing Machine
1. Product Parameters
| Item Number: | HS1515 |
| Max printing Size: | 150x 150mm |
| Standard Screen Frame size | 210x 360mm |
| Max screen Frame size | 280x 360mm |
| Worktable size | 250x 250mm |
| Worktable stroke of Down/up | 70mm |
| Support plate Diameter | 150mm |
| Workable squeegee | 5x 25mm |
| Standard Squeegee holder | 100mm |
| Printing Speed | 1400 pcs/ hour |
| Power | 50W |
| Voltage of source | 220V/ 1 phase 50/ 60 HZ |
| Net Weight | 90Kg |
| Dimension | 90x 60x 132 cm |
2. Product descriptions
1 Low Electric Consumption, high efficiency and productivity, easy to operate.
2 Linear movement design.
3 Reliable electrical and pneumatic parts.
4 The squeegee works in two modes---front stop and back stop.
4 The printing speed is adjustable as your requested.
5 Machine with air blow.

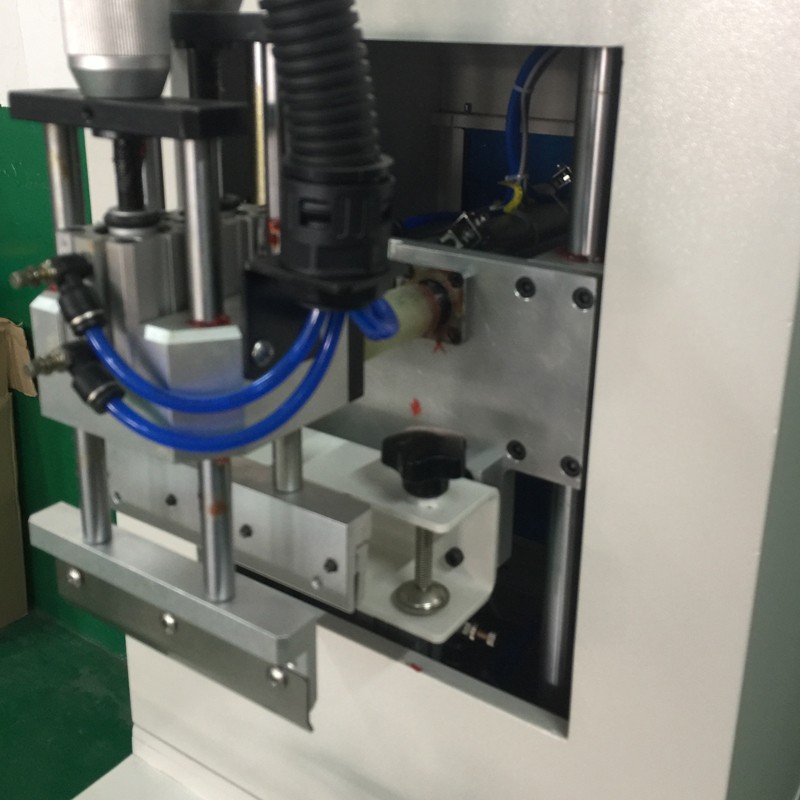

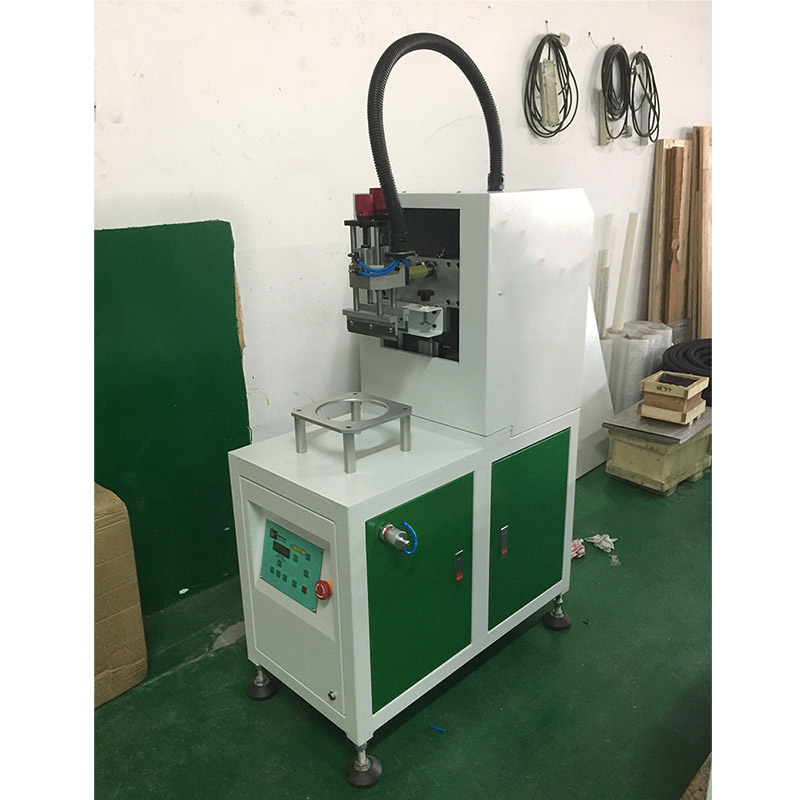

3. Detailed photos

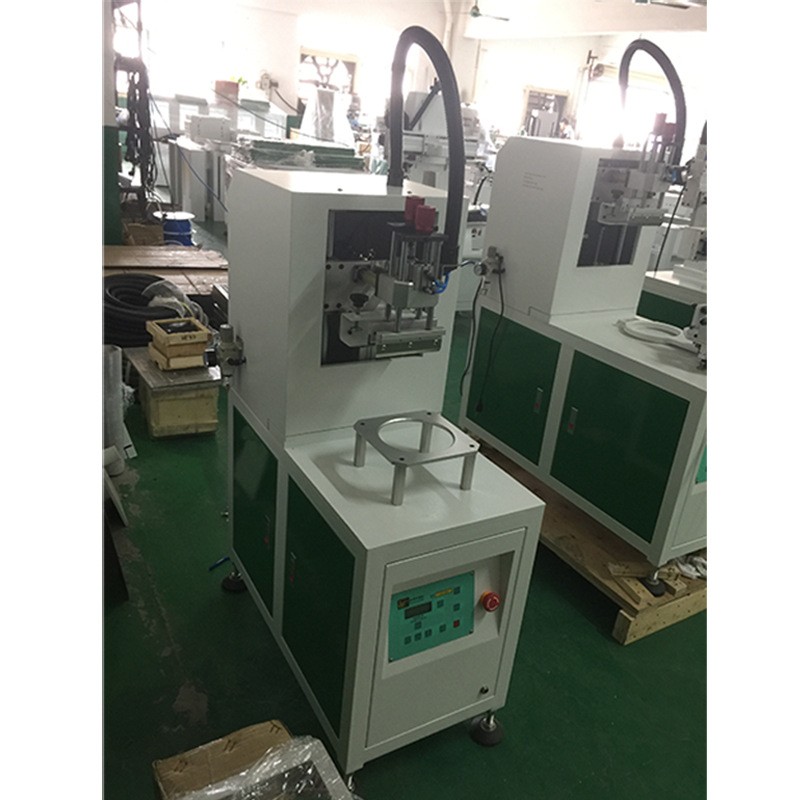

4. Factory shows
