Automatic Wet Wipes Canister Liquid Filling Machine

Automatic Wet Wipes Canister Liquid Filling Machine

This is a model automatically to fill the liquid to the canister wipe, low cost, easy to operate.

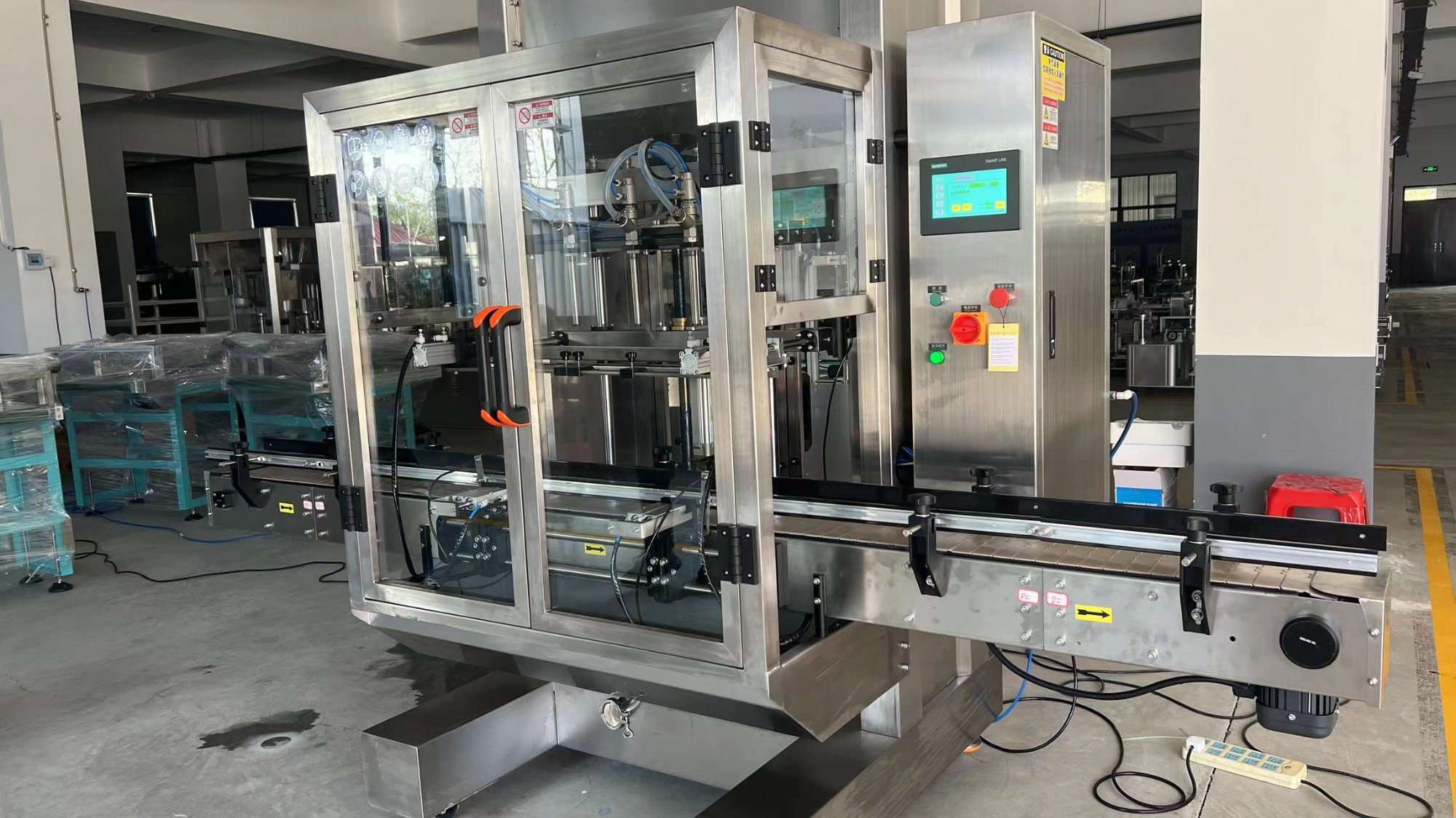

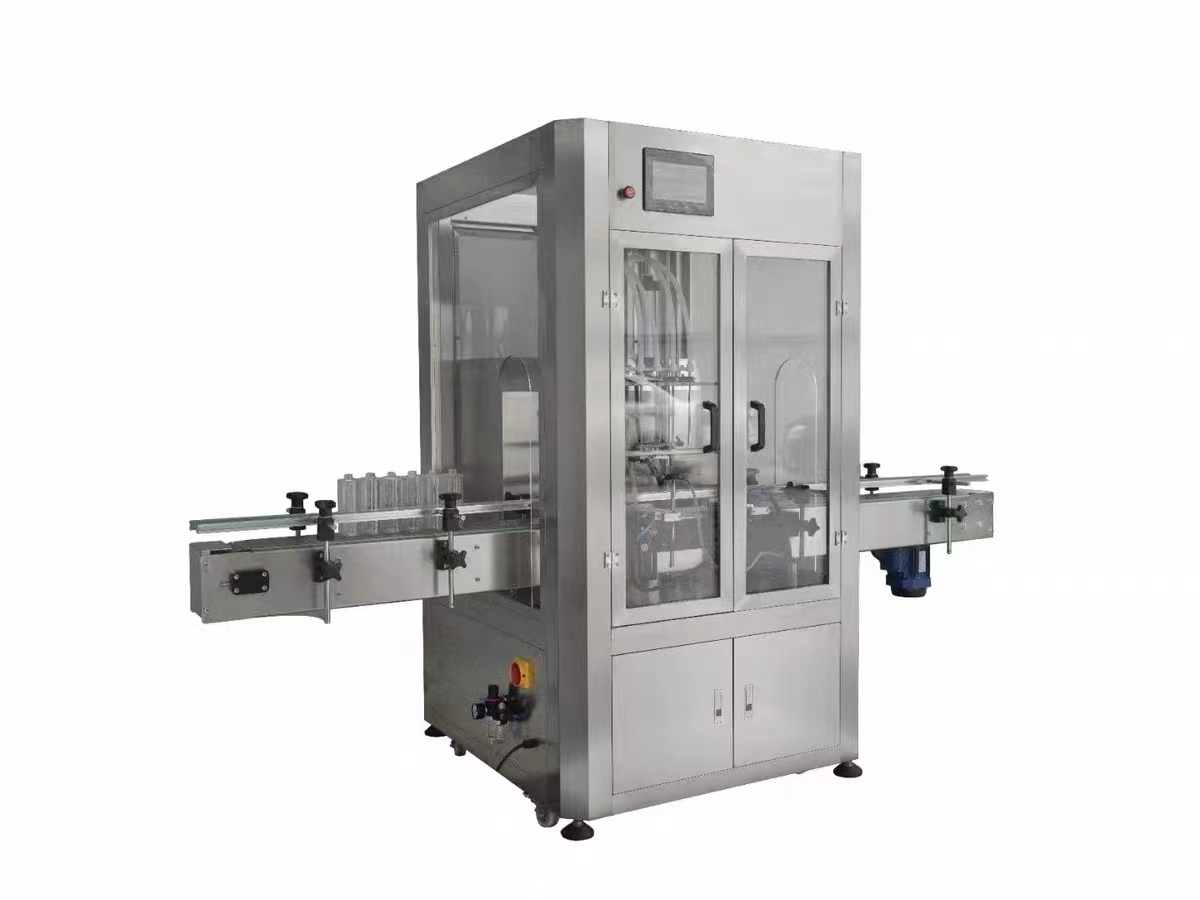

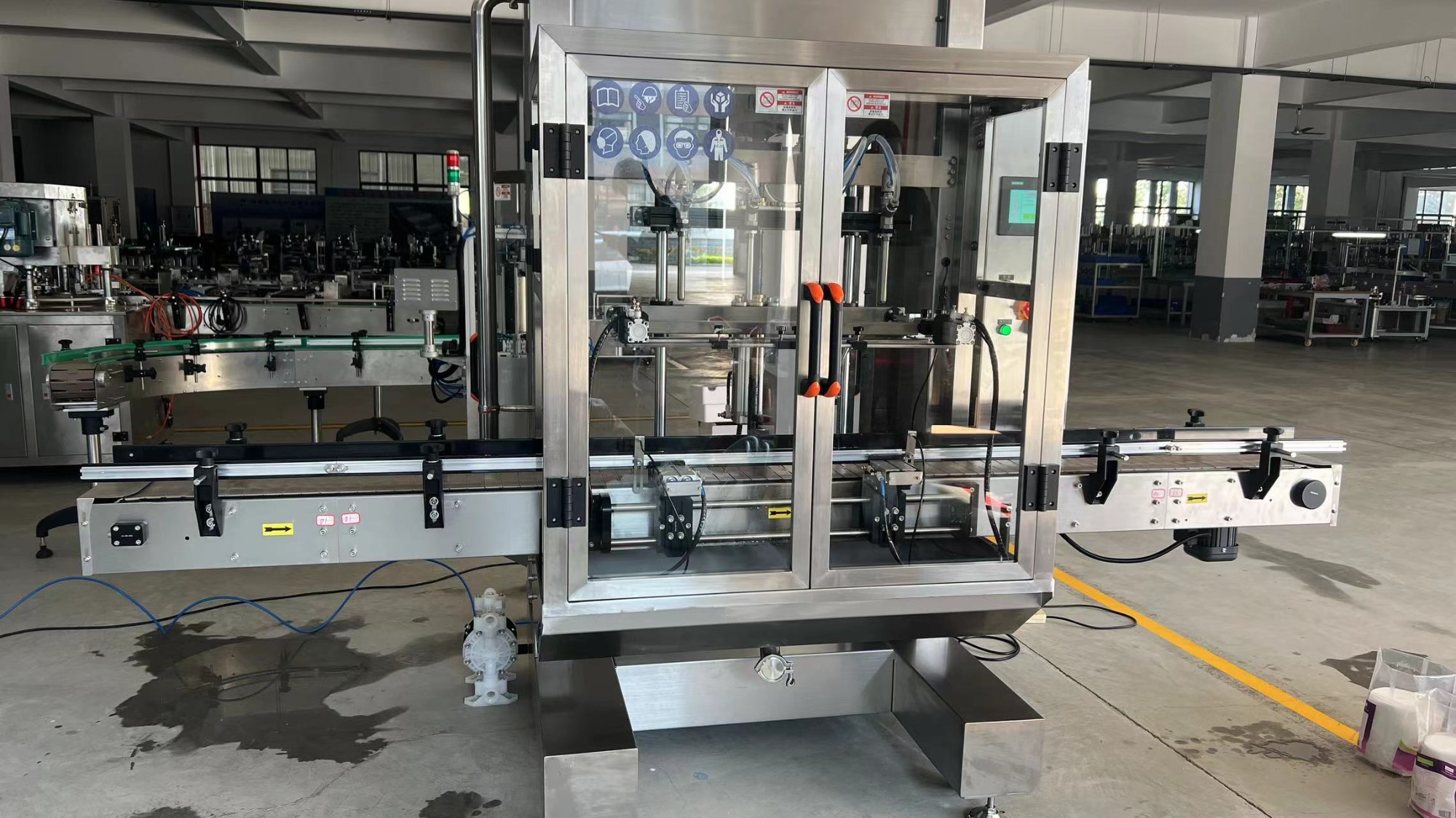

CW- CFM Automatic Wet Wipes Canister Liquid Filling Sealing Feeding Machine

1. Product Parameters

Filling volume(ML)	50-500ml
Filling speed(BPM)	16-24Bottles/min
Voltage(VAC)	220V
Motor power(KW)	2.0
Air consumption(MIN)	4KGS×30LITER
Dimension	2000x1300x2100
Weight(KG)	300

2.Product description
The automatic piston filling machine adopts the principle of plunger quantitative filling. The bottle feeding, positioning, filling and bottle output are all automatically controlled by PLC and meet the GMP standard. It is suitable for liquid filling of medicine, food, daily chemical, pesticide and fine chemical industry.

3. Mian features
1: Touch screen operation interface.

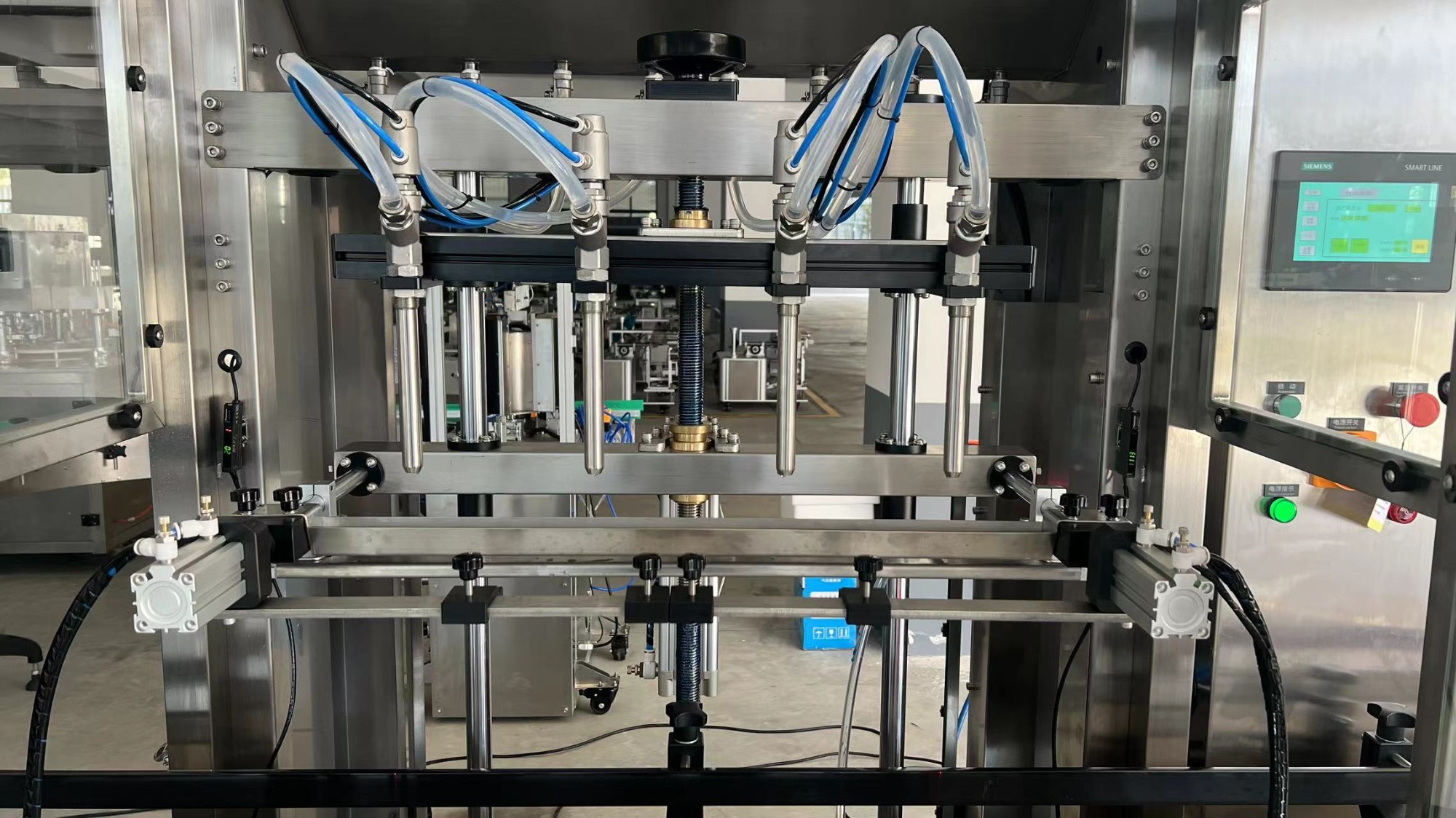

2: 4 pieces up and down motion filling unit, effectively prevent foam happening.
3: Filling accuracy can reach ±1%.
4: The filling cylinder is treated and ground with hard chrome, and the unique filling valve design prevents dripping.
5: Attached no bottle and no canister machine photo.
6: Design different positioning devices according to the actual situation of the bottle.
7: The equipment is easy to clean, can be folded and assembled without tools, and can also be cleaned online or sterilized at high temperature
8: PLC programmable control, adopting Japan's Mitsubishi.
9: Pneumatic components adopt Taiwan AirTAC.
10: The material contact of equipment adopts SUS304 stainless steel.
11: Equipped with a glass protective cover that meets hygiene and safety standards.
