The balloon screen printing machine adopts advanced microcomputer control system which is stable and easier operation.

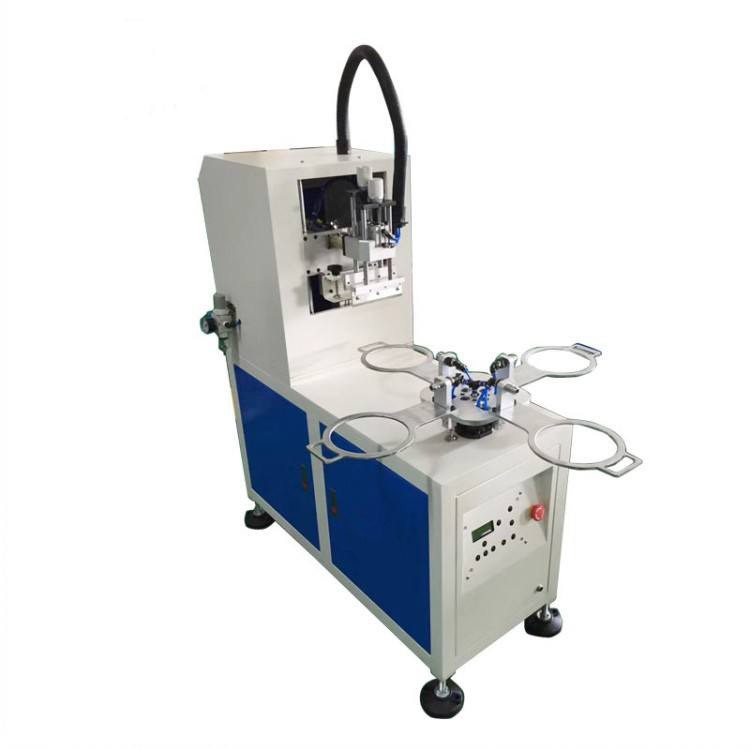

CW- SAM 4 Working Stations Semi-Auto Balloon Printing Machine
1. Product Parameters
No. | Item | Paramters |
1 | Max printing area | 150mmx150mm |
2 | Max screen frame size | 350mmx280mm |
3 | Products height | 150-250mm |
4 | Workbench size | 170mmx170mm |
5 | Conveyor diameter | Dia:680mm |
6 | Front/back stroke | 220mm |
7 | Screen frame lifting strocke | 100mm |
8 | Scraper Stroke | 25mm |
9 | Printing Speed | 1200pcs/ hour |
10 | Conveyor driving | Manual turning, auto position |
11 | Screen frame lifting drive | Cylinder |
12 | Printing head driver | Cylinder |
13 | Blower balloons way | Automatic |
14 | Working cycle | About 2S |
15 | Machine Weight | 150Kg |
16 | Power | 220V 50/60Hz |
17 | Machine Dimension | 1030x 500x 1220mm |
18 | Package Size | 1100x 580x1350mm |
2. Product descriptions
The balloon screen printing machine adopts advanced microcomputer control system which is stable and easier operation.
1- The conveyor adopts hand turning, high precision position, automatic blow balloons and the air flow is controlled.
2- The screen plate lifts automatically and which height is adjustable.
3-The screen air is single clamp, saving space and more conveniently turning.
4- Innovative structural design with the cylinder drive and guidance system, fast, stable and smooth, accurate positioning, energy conservation, to ensure the quality of printing.

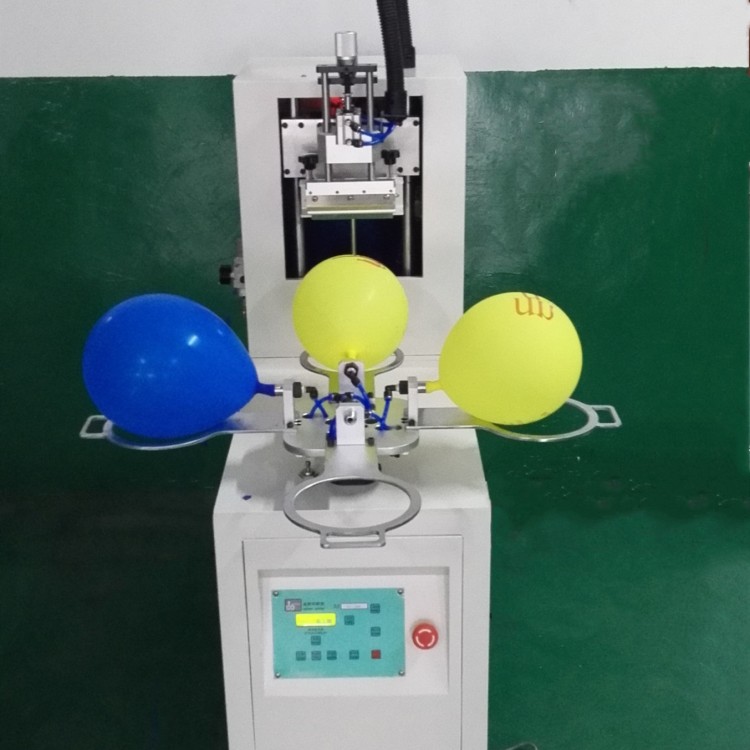

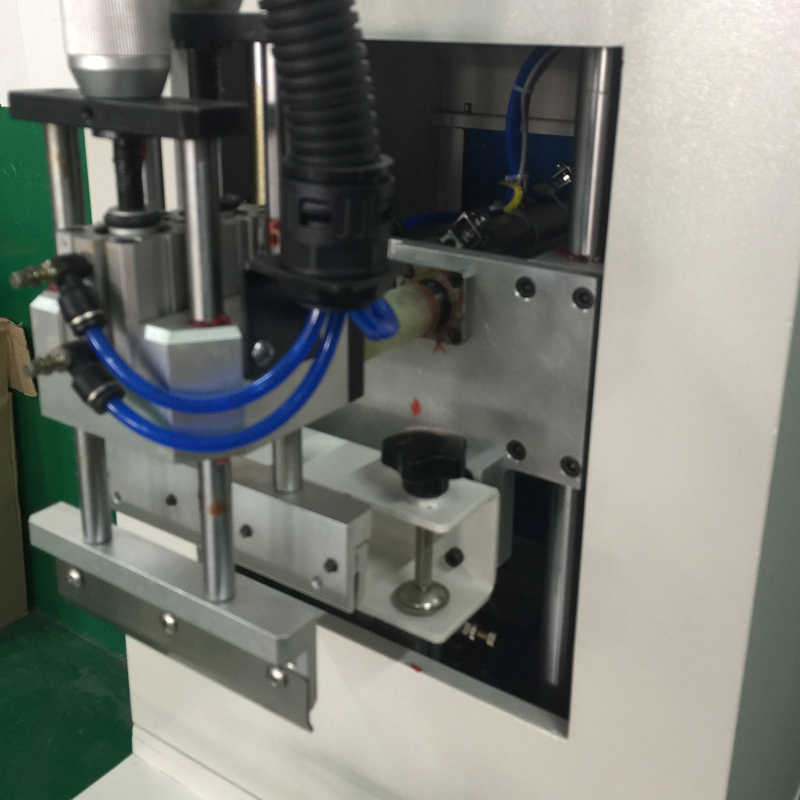

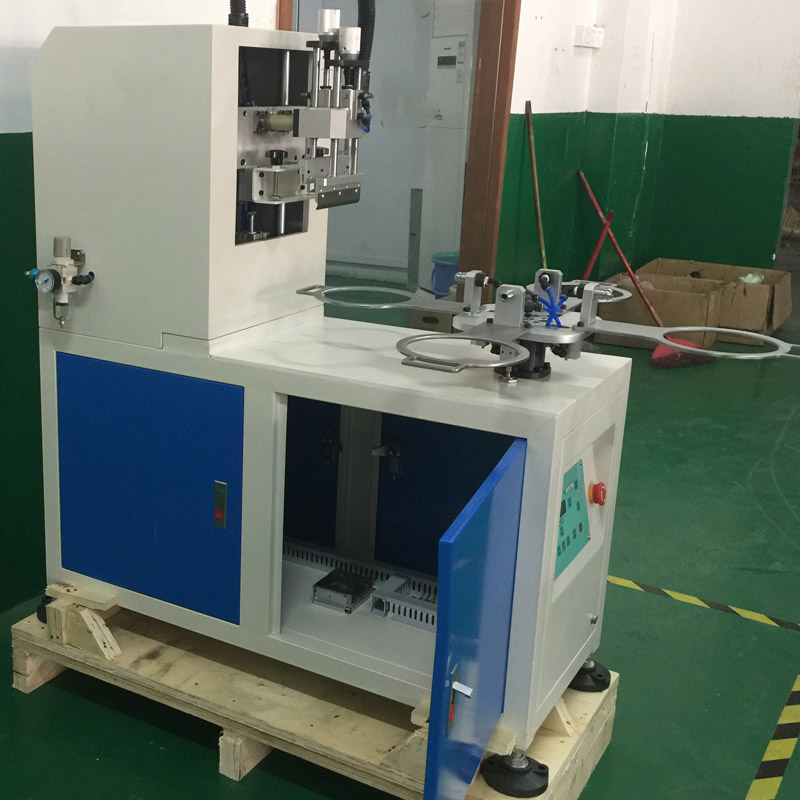

3. Detailed photos

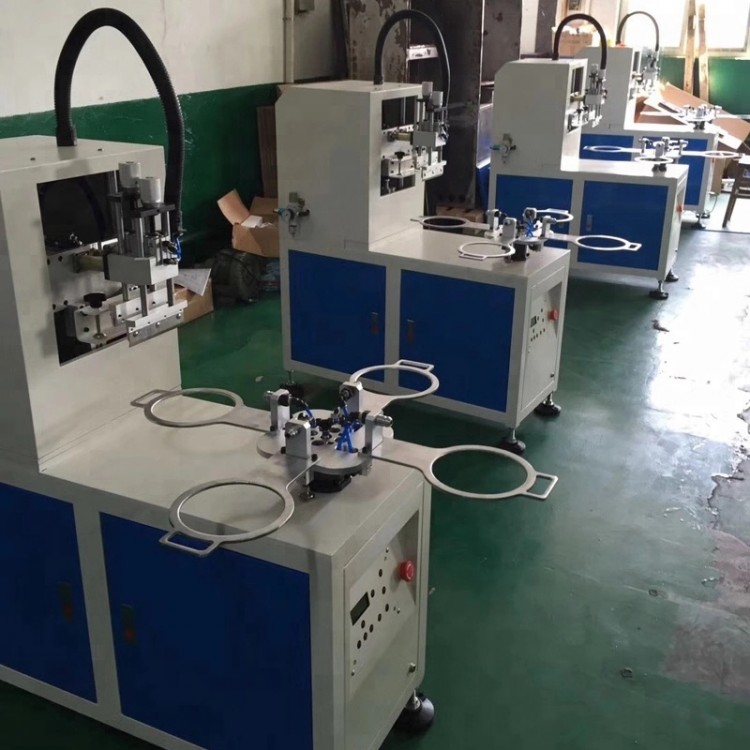

4. Factory shows
