Fully automatic upgraded version new system smoking paper folding machine

Fully automatic upgraded version new system smoking paper folding machine

High speed, stable working performance,high benefit.

Design speed: 600 sheets per minute.
Production speed: 400-500 sheets per minute.

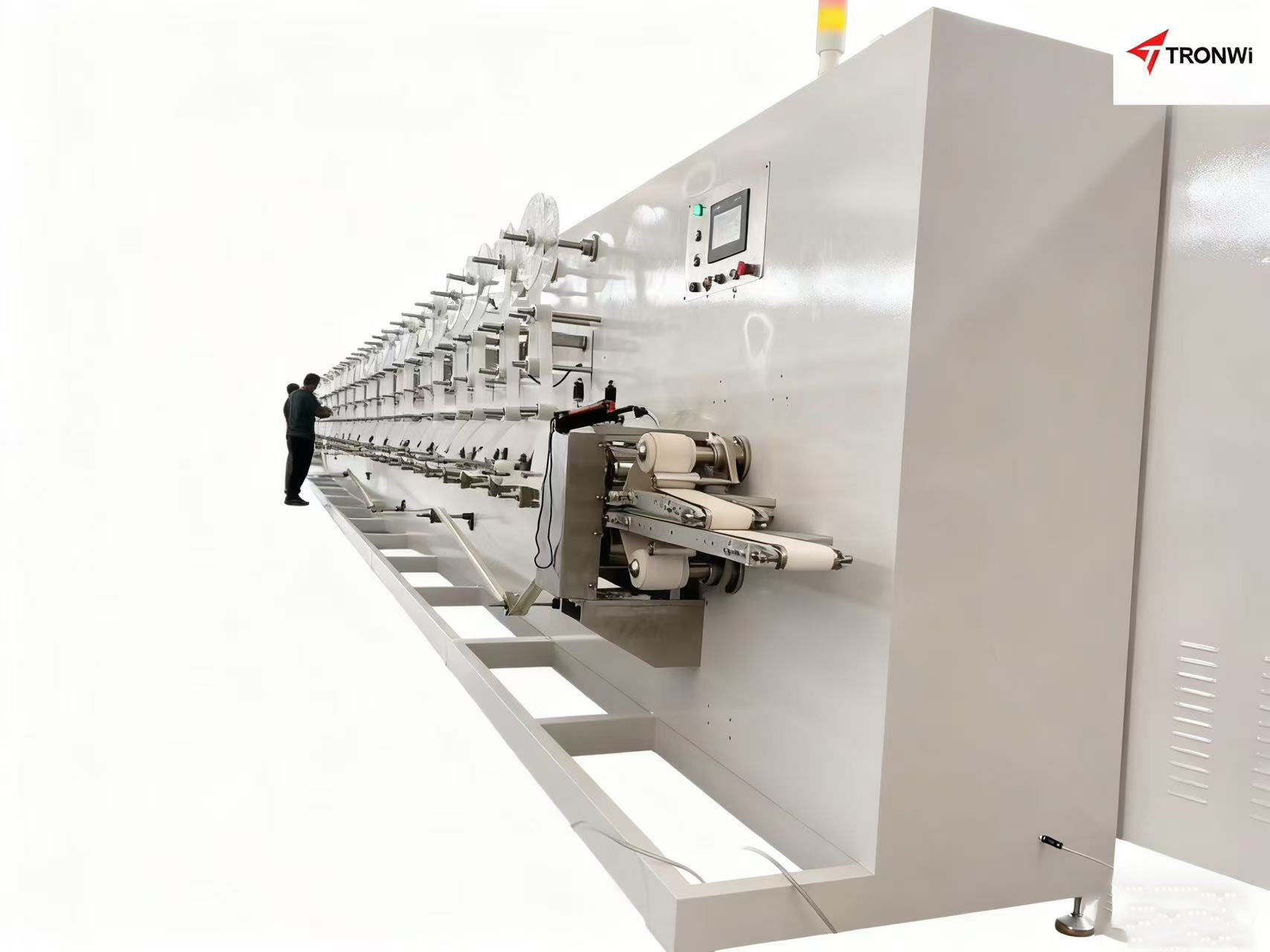

CW-300 Fully automatic cigarette paper folding and cutting machine

(1)Main Technical parameters

1. Net weight of the machine: about 4T.

2. Voltage: 380V 50HZ.

3. Power: about 5KW.

4. Overall size of the machine: 25 lanes, length 14125MM*width 1000MM*height 1400MM.

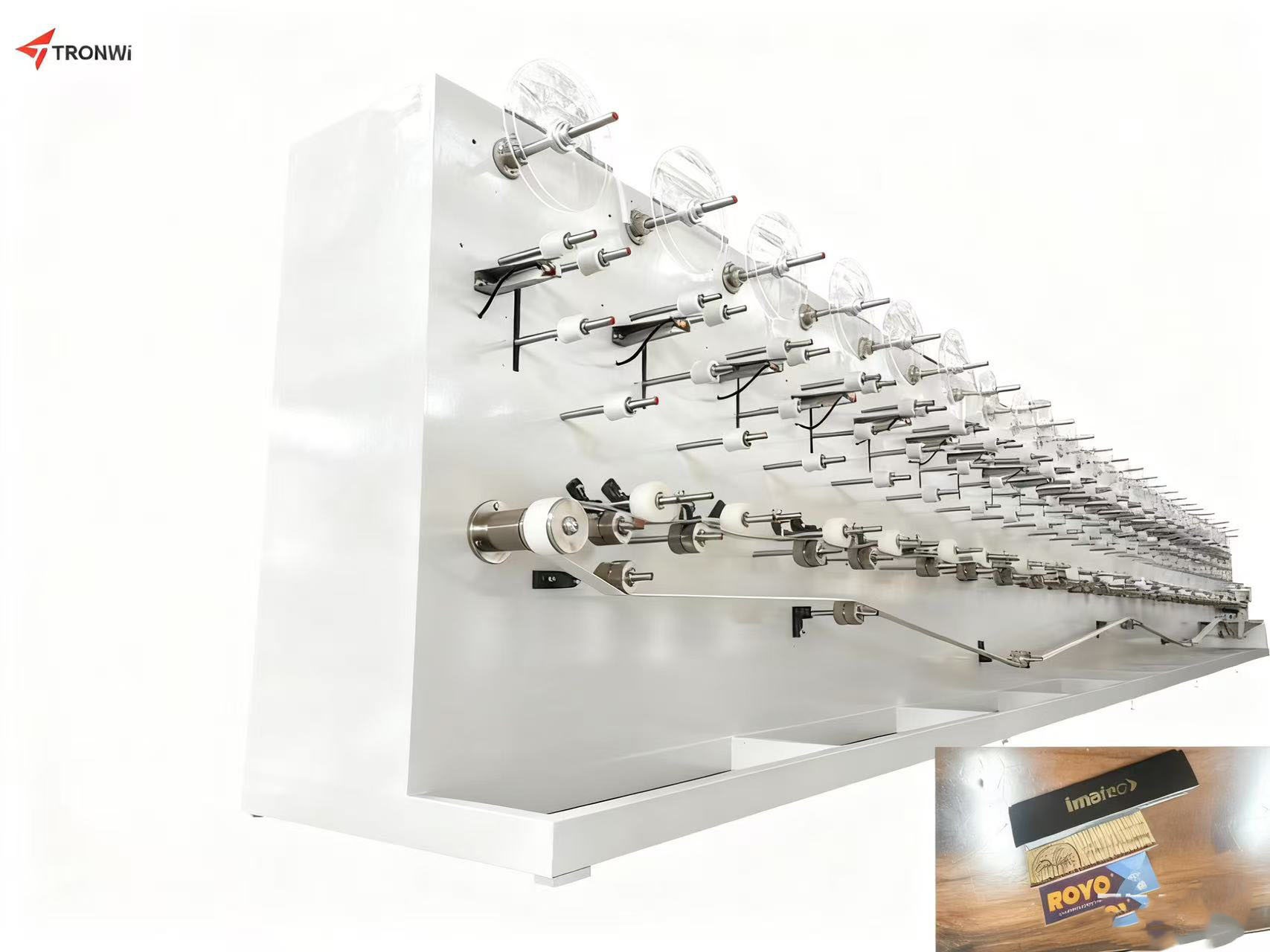

5. Raw material rolls: 25 raw material suspension mechanisms, which use mechanical floating brakes to ensure tension control of large and small rolls of materials.

6. Folding wheels: PE nylon wheels.

7. Folding plates: 304 stainless steel is used for the folding plates.

8. Folding method: V-shaped interlocking continuous draw type.

9. Cutter mechanism: 4-knife combination cutting is used, which is faster and has high production capacity. The blade is made of high-speed steel material and is controlled by a servo motor, which can ensure accurate length and an error of -+1.

10. Folding conveyor: The folding conveyor is controlled by a servo motor, which can ensure the synchronization of the conveyor and the cutter mechanism.

11. Control screen: Siemens 7-inch touch screen is used to control the machine.

12. Material cut-off shutdown and alarm.

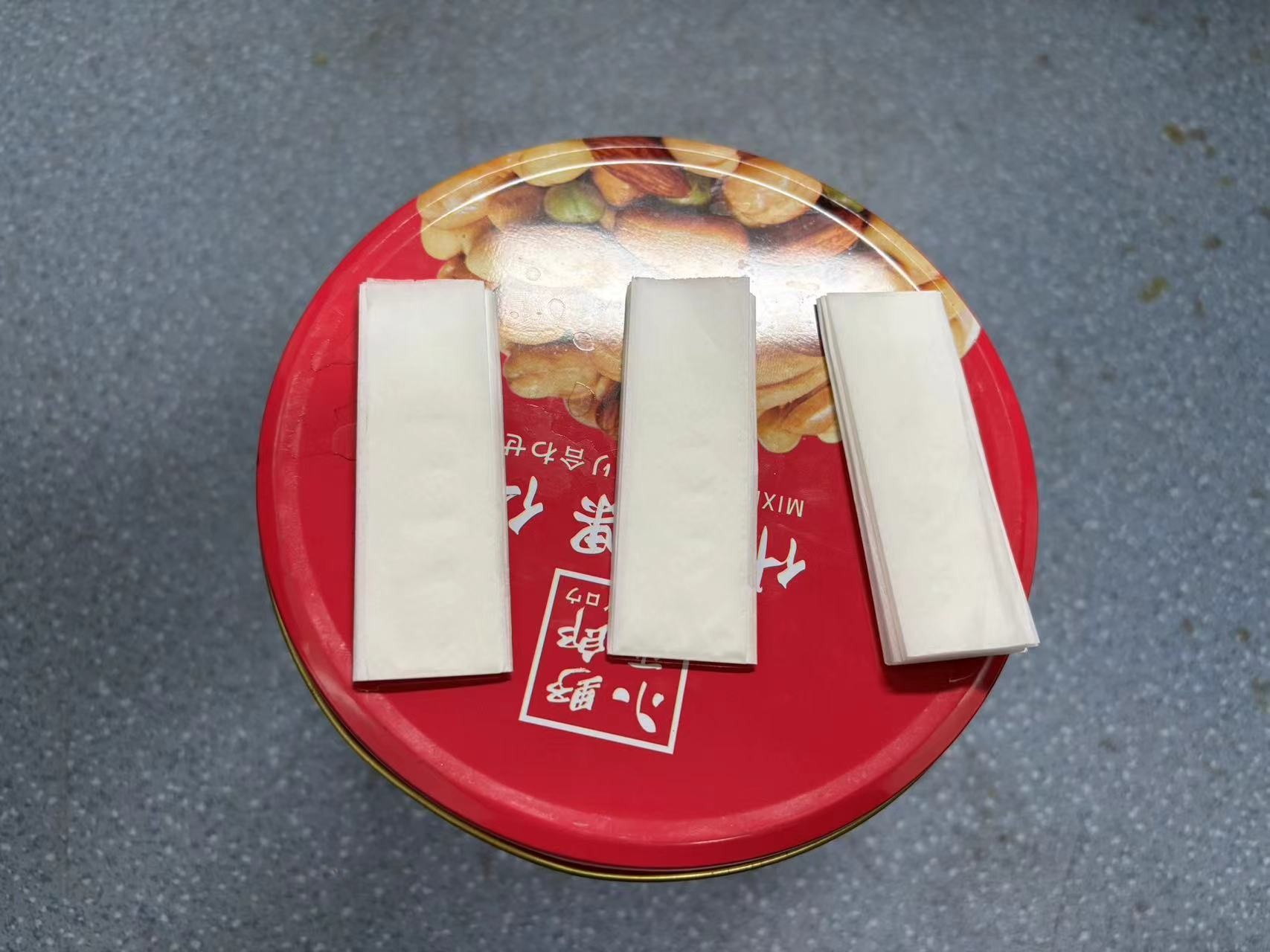

13. Folded size: 20MM-25MM.

14. Cutting length: 70MM-120MM.

15. The whole machine is fully servo-controlled, and the selected electronic control components are all brand electrical.

16. Design speed: 600 cuts/minute.

17. Production speed: 400-500 cuts/minute.

(2). Factory shows
