Automatic Smoking Rolling Paper Folding Slitting Machine

Automatic Smoking Rolling Paper Folding Slitting Machine

This model is used to make hand-rolling cigarette paper which has many sizes available, low cost , easy to operate.

CW- 300 Automatic Smoking Rolling Paper Folding Slitting Machine

1. Product Parameters

Working voltage	380V,50HZ
Power	2.2kw
Folding quantity	16pcs;25pcs (other customized)
Speed	400-500cuts/min; Max.60m/min
Raw material width	360-540mm
Finished size	Width:36-55mm; Length:68-110mm
Machine dimension	7200x1100x1800mm (LxWxH) (it is up to folding quantity)
Machine weight	2000kg
Machine dimension(gluing machine)	4500x1640x1660
Machine weight(gluing machine)	1200kg

2. Product descriptions

1-This machine is to used to do a production of special extraction type cigarette/tobacco paper second lane equipment, the production of each product hinges on each other, once the upper one out, the next paper at the same time exposed to the packaging.
2- The folding machine adopts frequency conversion speed regulating motor control, automatic folding function, low noise,less waste,safety and easy operation.

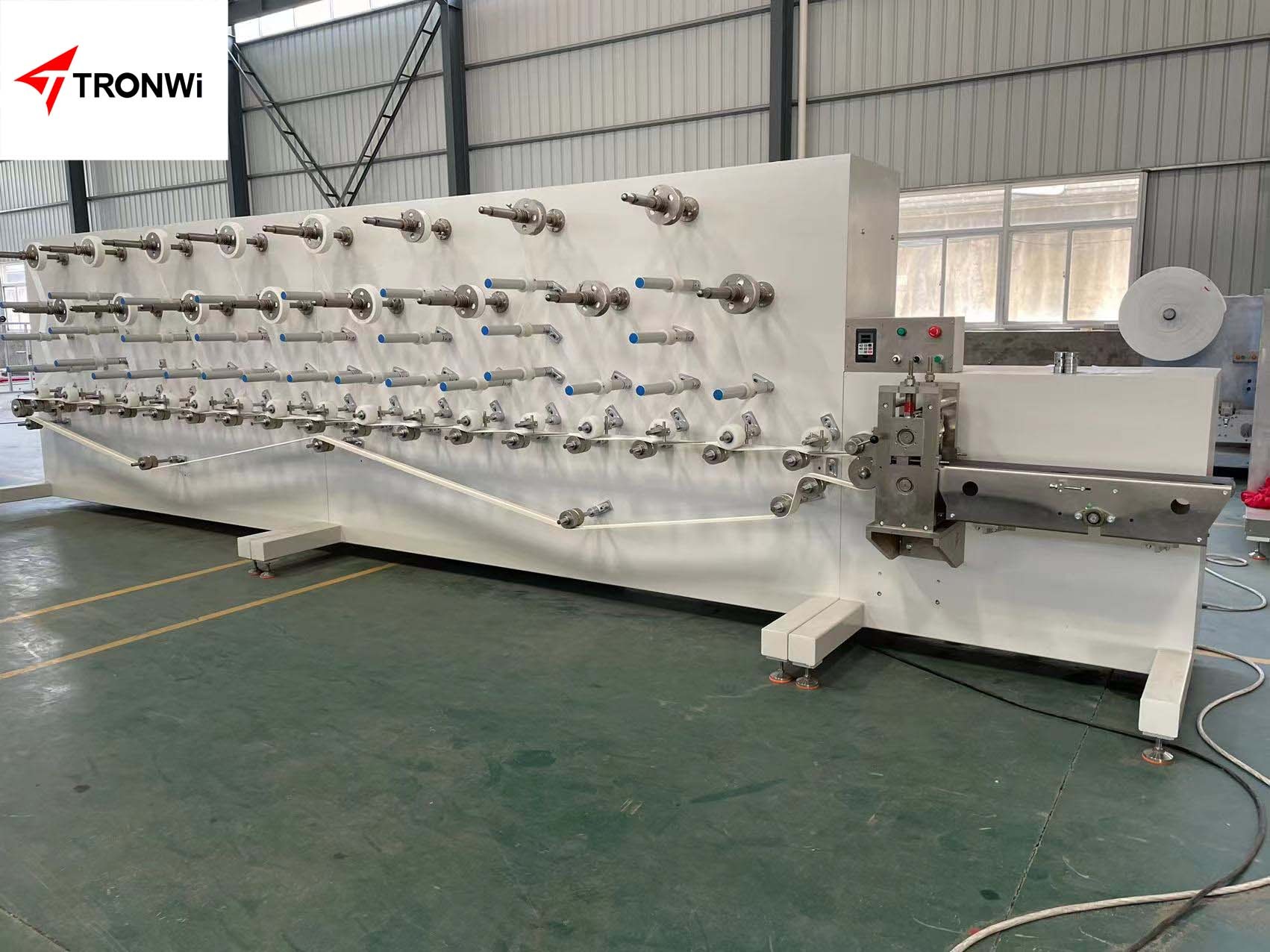

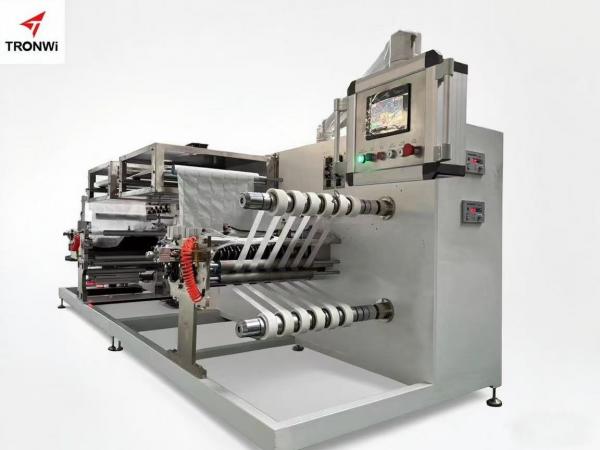

3. Detailed photos

Tobacco machine.jpg
