Fully Automatic High Speed Double Lanes Wet Wipe Packing Machine

Fully Automatic High Speed Double Lanes Wet Wipe Packing Machine

This model has been upgraded with automatic fabric splicing, automatic film splicing, and automatic label switching, which greatly reduces downtime and improves production efficiency. It is an ideal equipment for the production of small packages of wet wipes. The speed can reach 1000-1200 pieces per minute.

CW-AWL-66 Fully Automatic High Speed Double Lanes Wet Wipe Packing Machine

1. Product parameters

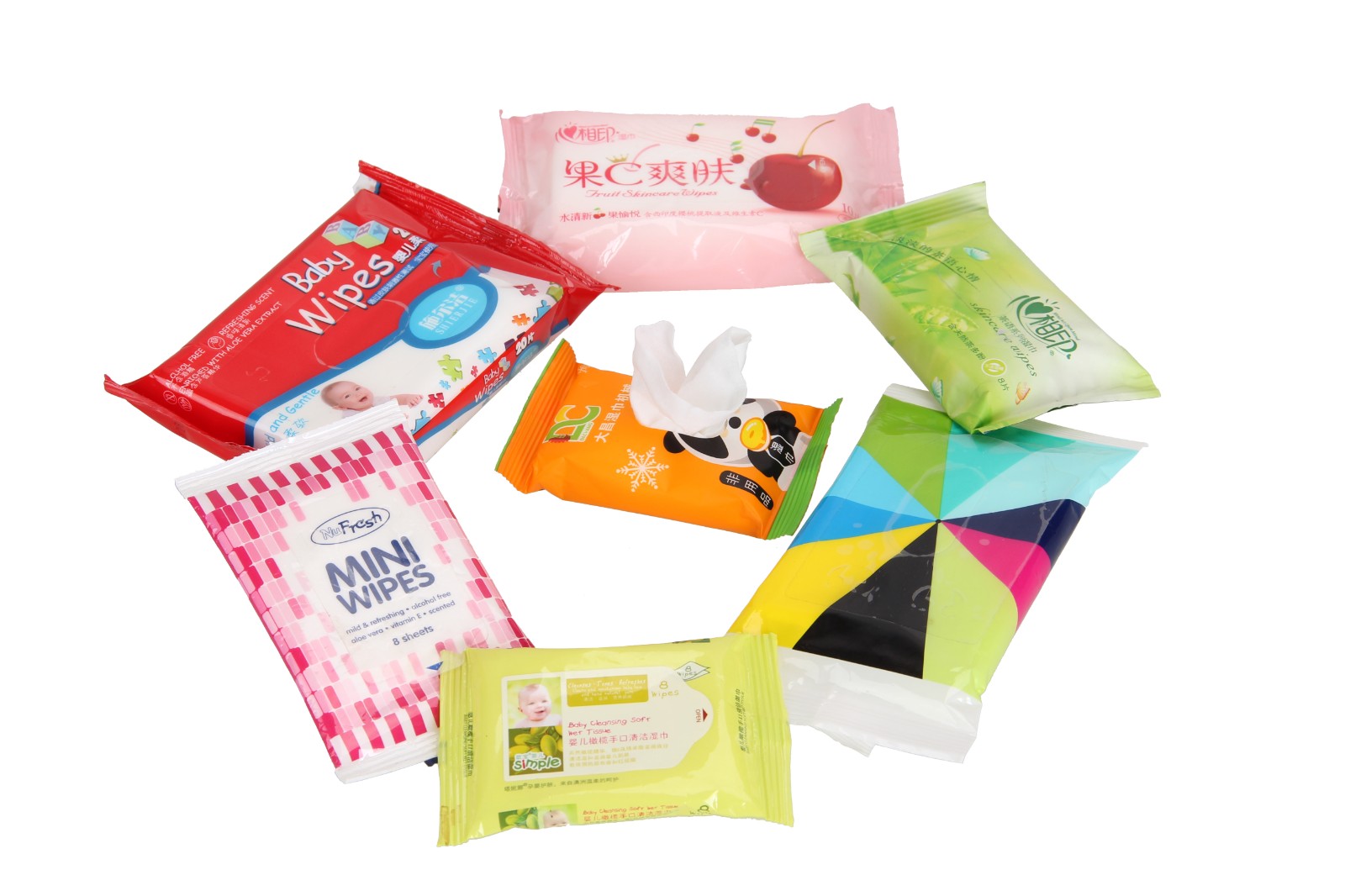

Product type	Baby wipes, dress up wipes, lady wipes, cleaning wipes
Product speed	1200pcs/min
Suitable materials	Spunlace non woven; Hot-rolled fabric
GSM	40 - 80g/m2
Working voltage	380V 50HZ
Power	20KW
Raw material width(mm)	Max W210mm(single roll),Φ1200mm double rolls with same core
Slitting line	2 lanes
Unfolded size(mm)	L140-200mm ,W120-200mm
Folded size (mm)	L70-100mm , W 40-100mm
Folded type	Roller Crossfolding
Counting mode	Counting automatically,automatic adjustable stacking system
Wetting system	Double tanks with agitators

2. Production flow chart

Raw materials are placed on shelves→Auto unwinding→ Auto splicing → Auto tension control → Width folding → Dry non woven drawing and conveying→ Quantitative wetting →Wet non woven drawing and conveying→Selected length cut → Stacking counting(Double press non woven) → Wet wipes convey →Auto packing;Roll film unwinding→ Auto opening mouth→Auto labeling → Heat-seal cut → Auto angle insertion → Automatic exhaust → Finished product output

3. Production description

This machine is used to produce portable wet wipes, the number of that can be adjusted from 5 to 30 pieces per pack, to meet the needs of small packaging that people carry with them when they go out. Types of wipes include baby wipes, cosmetic wipes, specialty wipes and cleaning wipes. This model has been upgraded double lanes design with automatic fabric and film splicing,label autoamtic changing, the working performance has been improved a lot, the ourput can reach 1000-1200 pieces per minute.

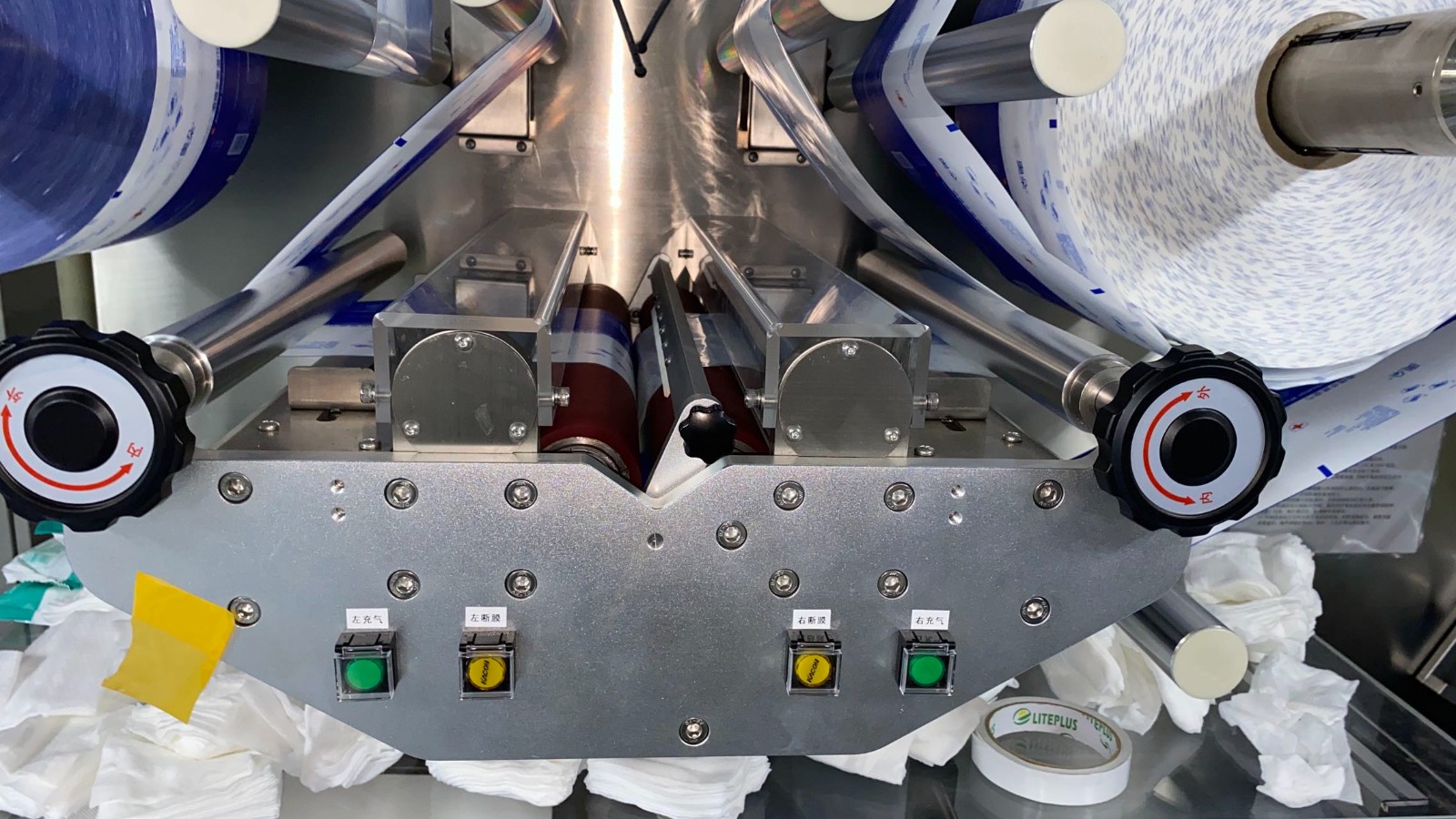

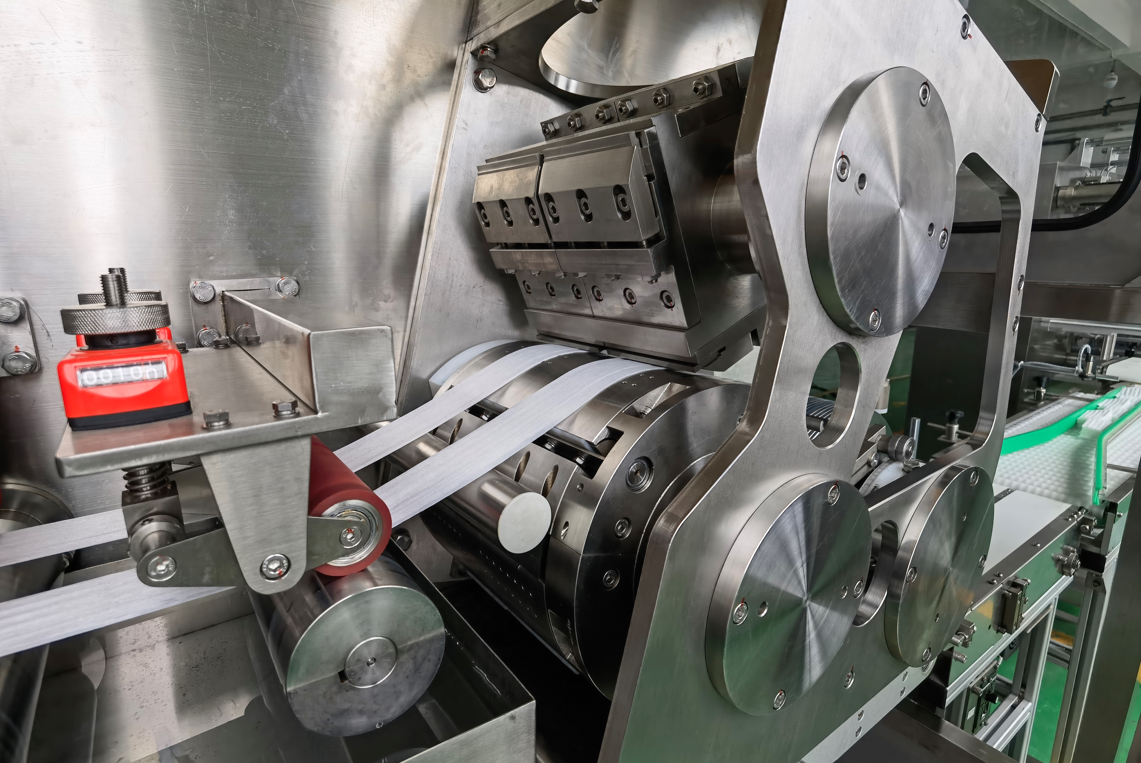

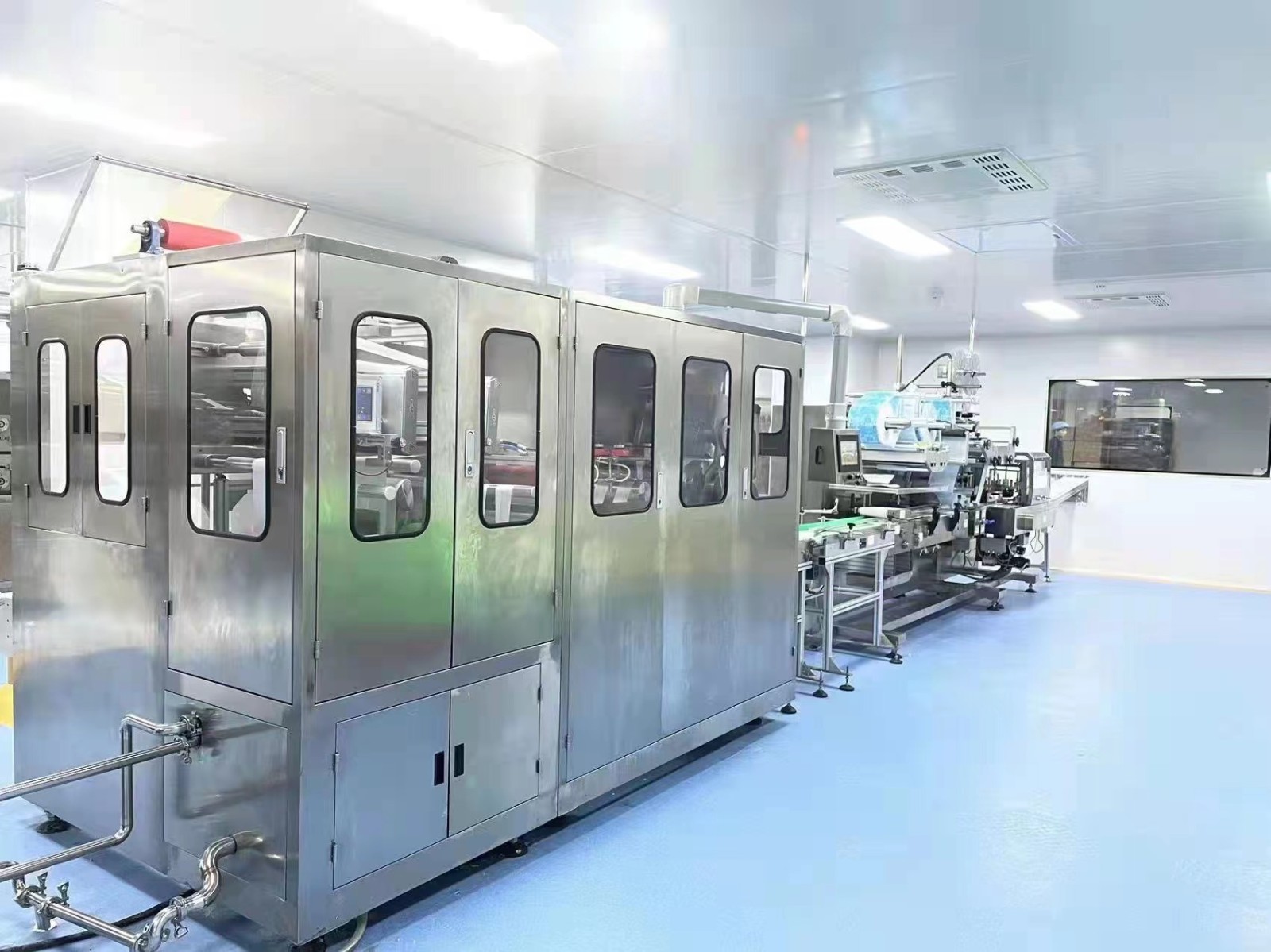

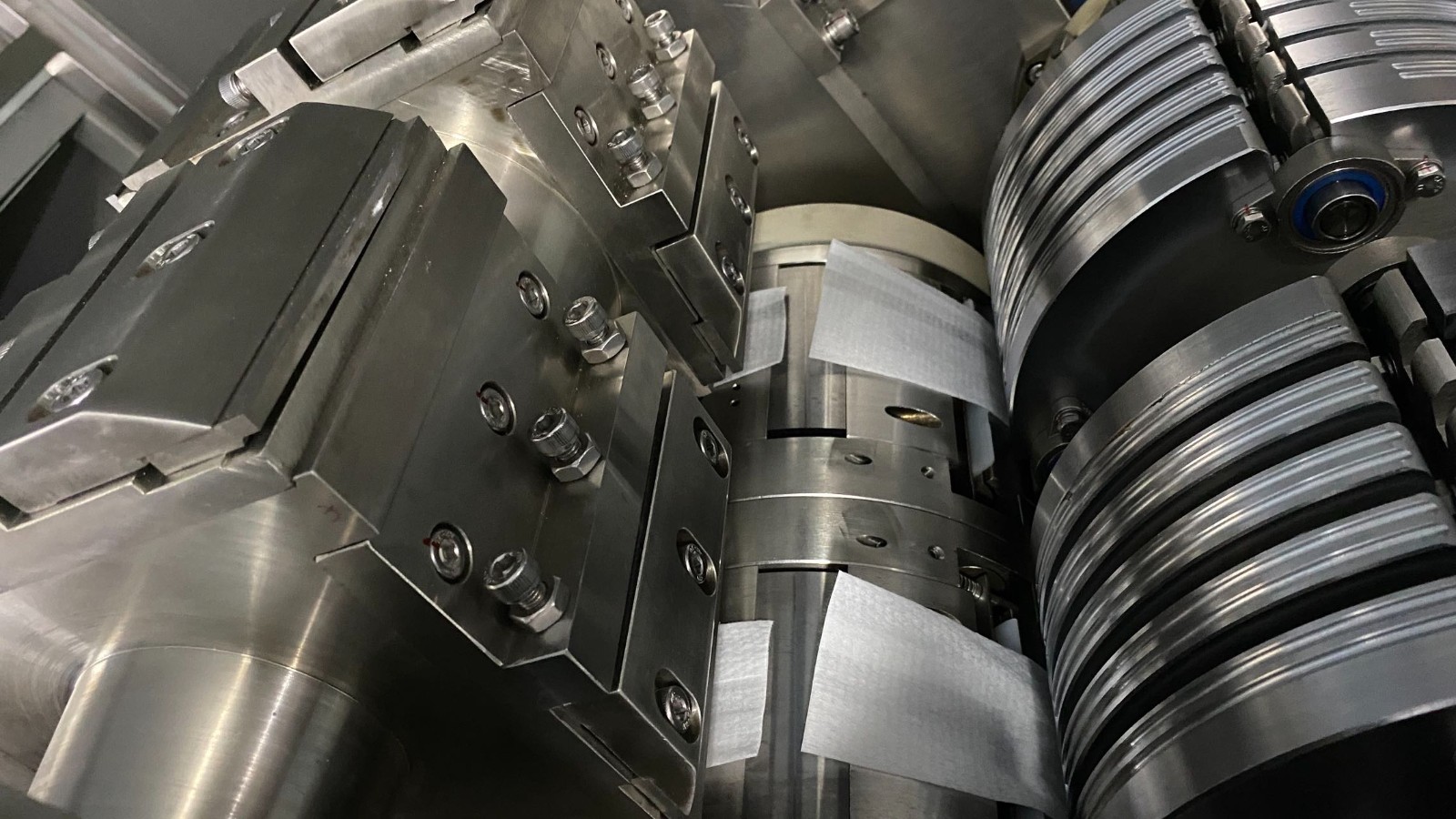

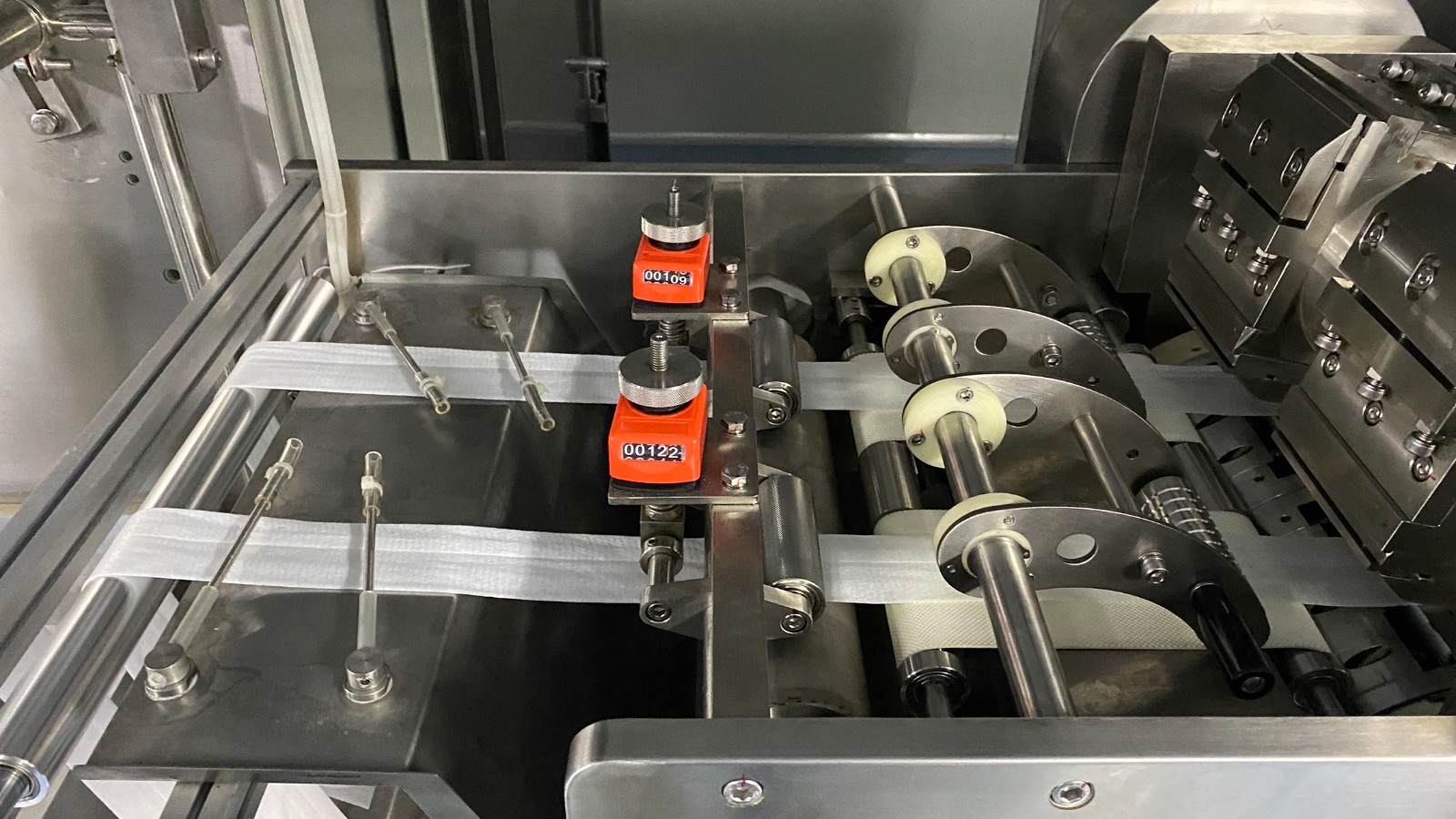

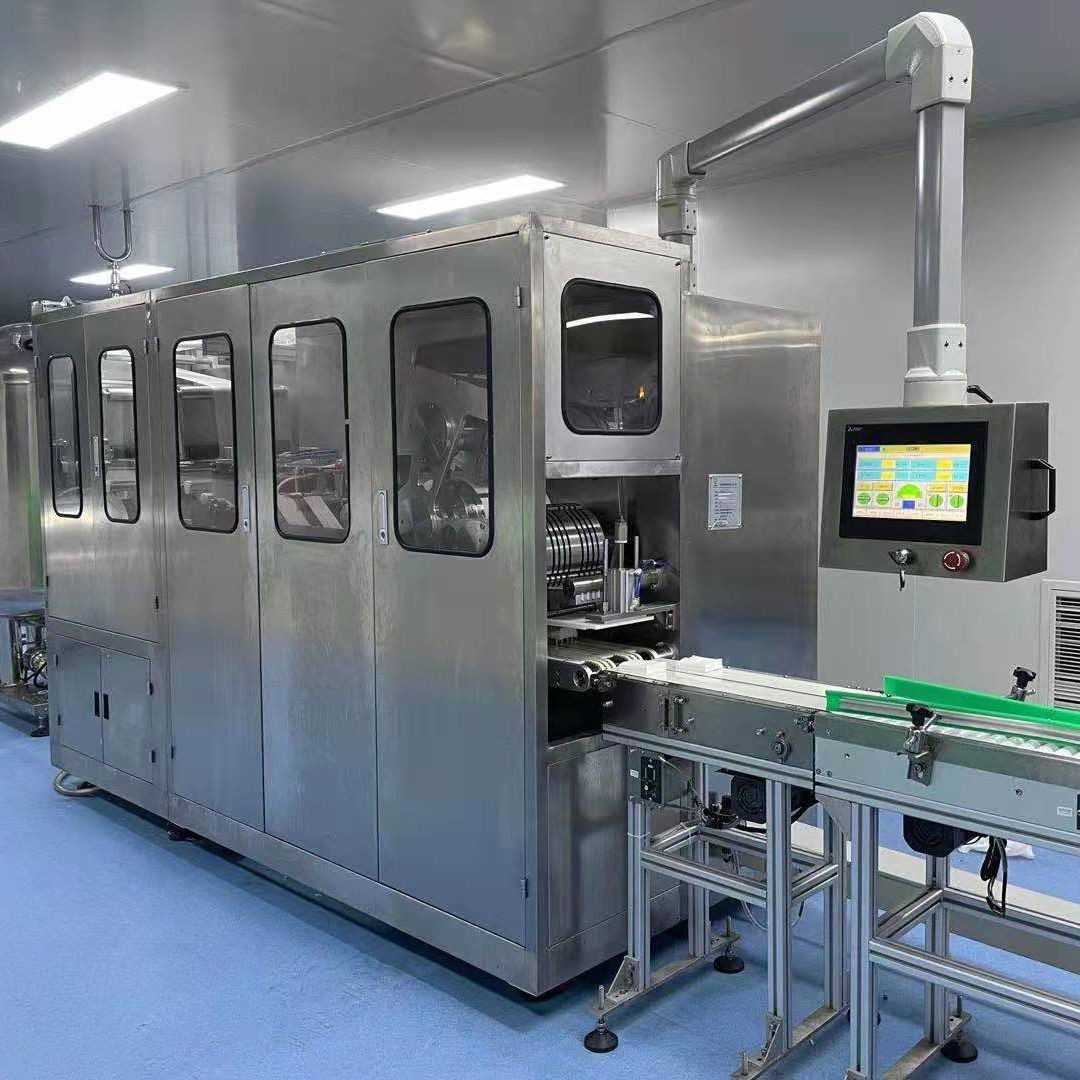

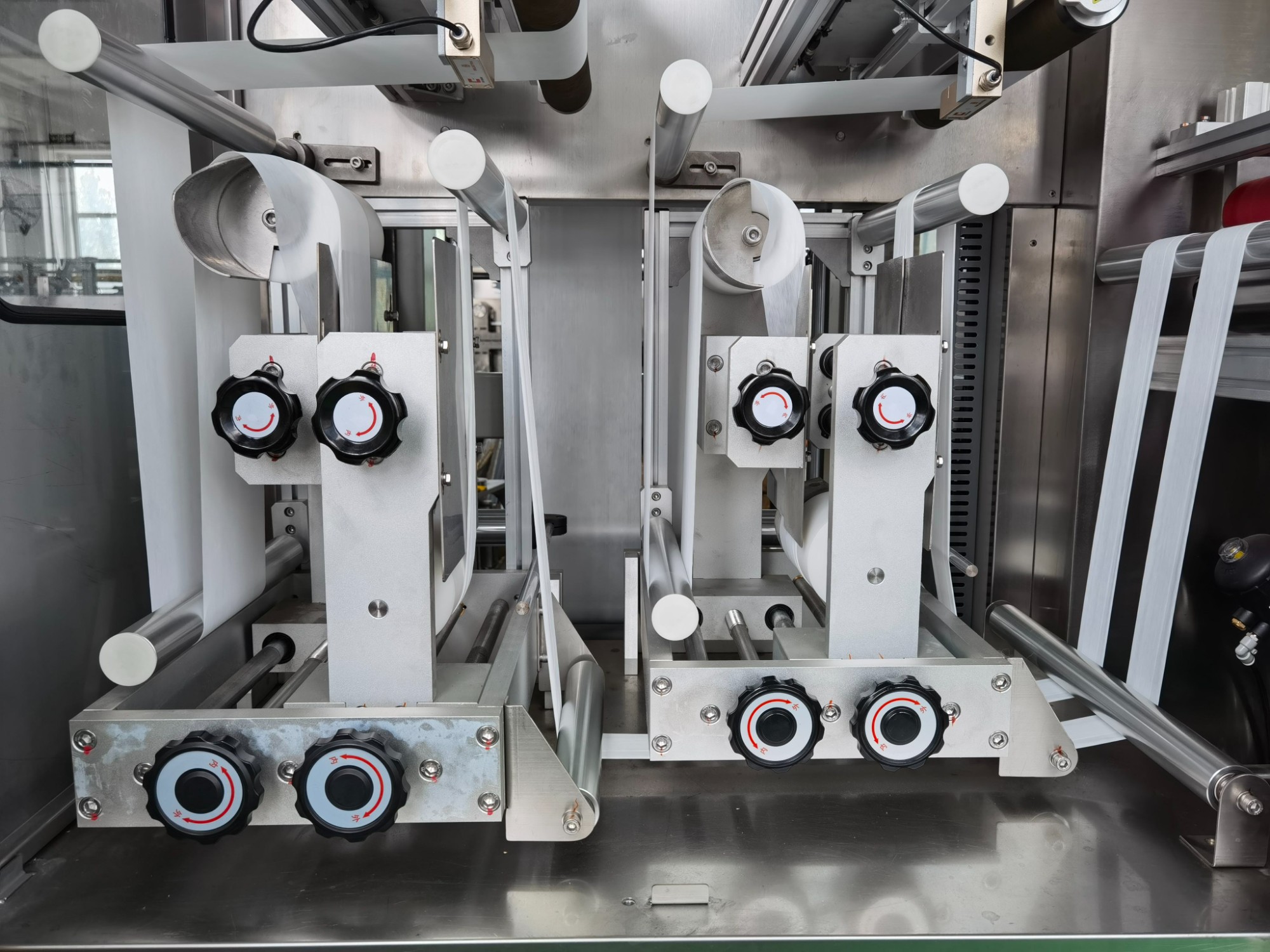

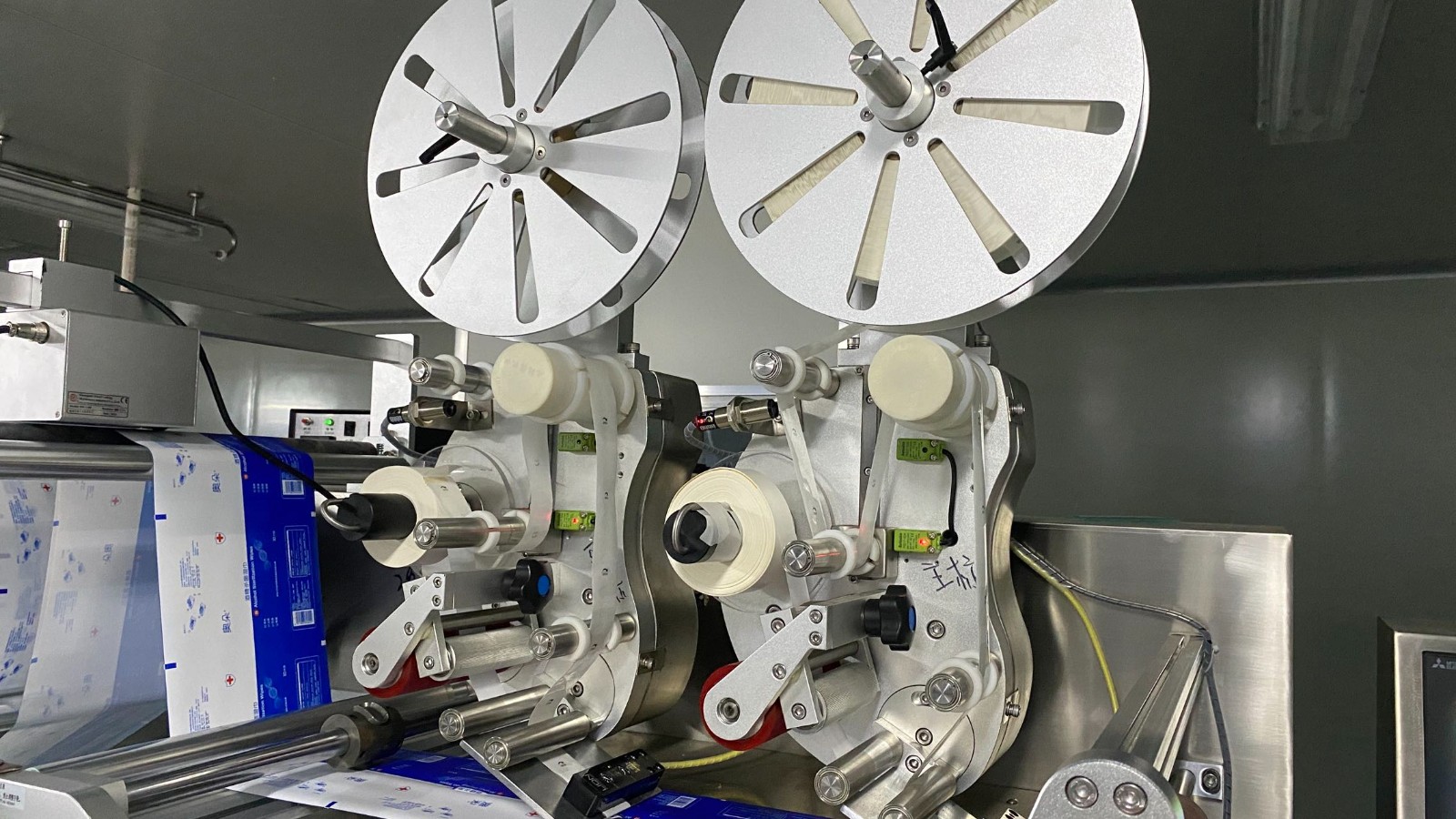

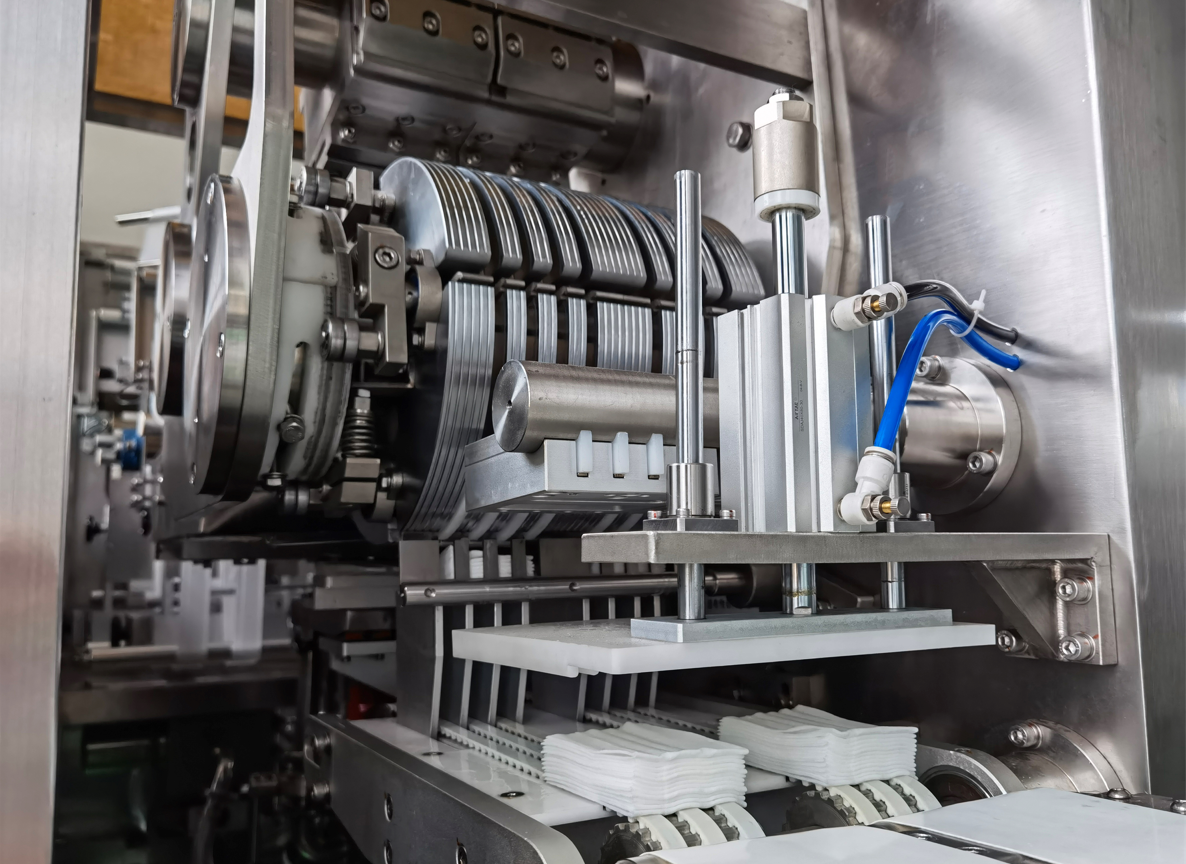

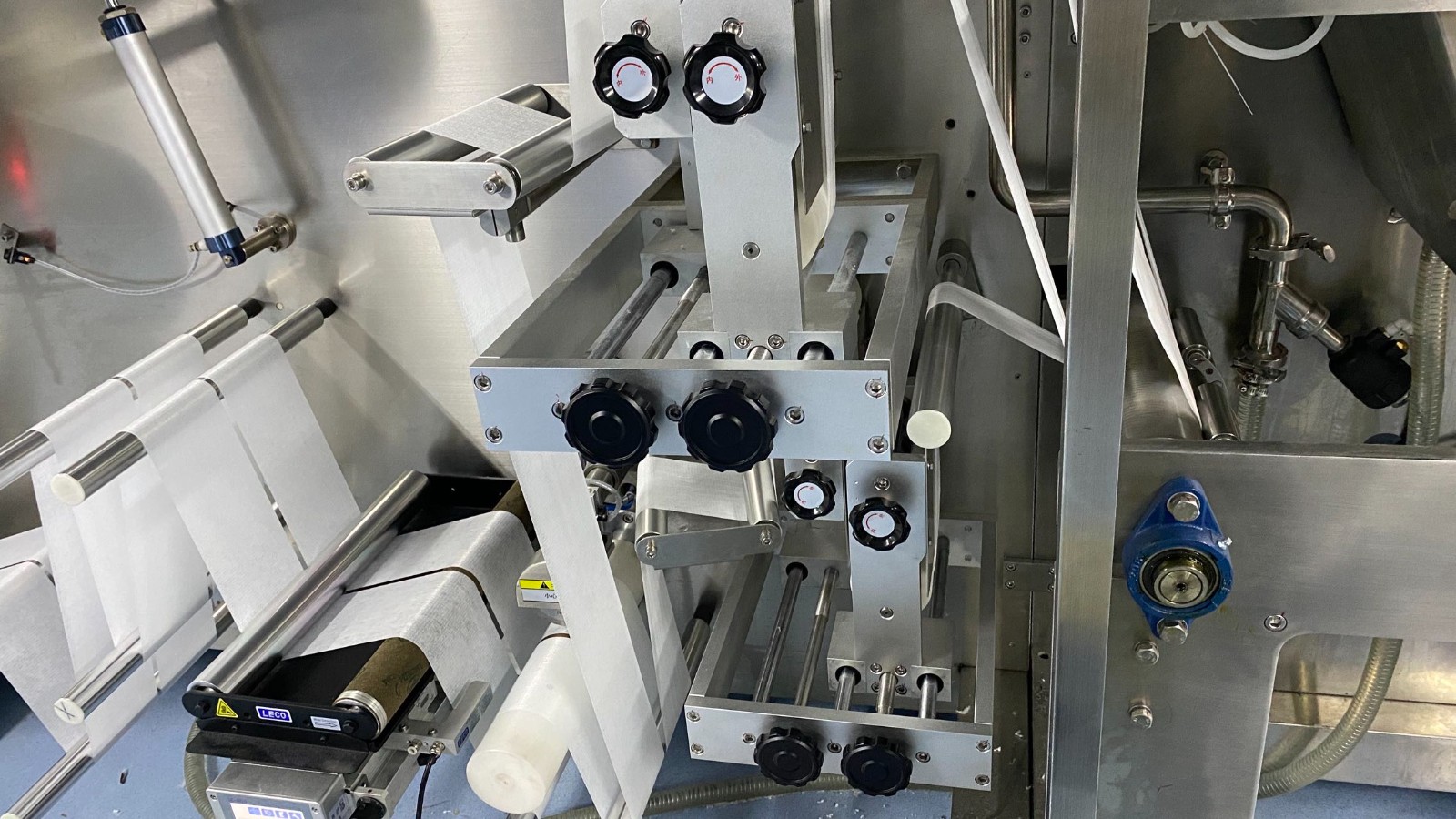

4. Detailed photos
