Fully Automatic Portable Wet Wipes Machine (5-30pcs/pack)

This is a model machine that can produce portable wipes from 5-30 pieces per pack, easy to operate, cost-effective.

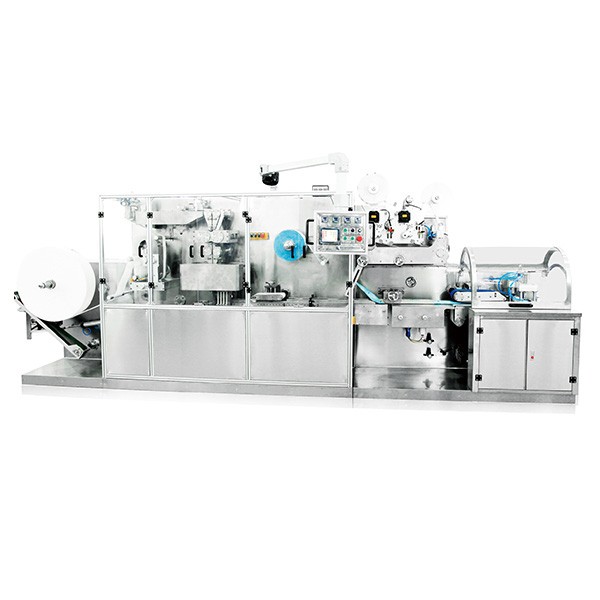

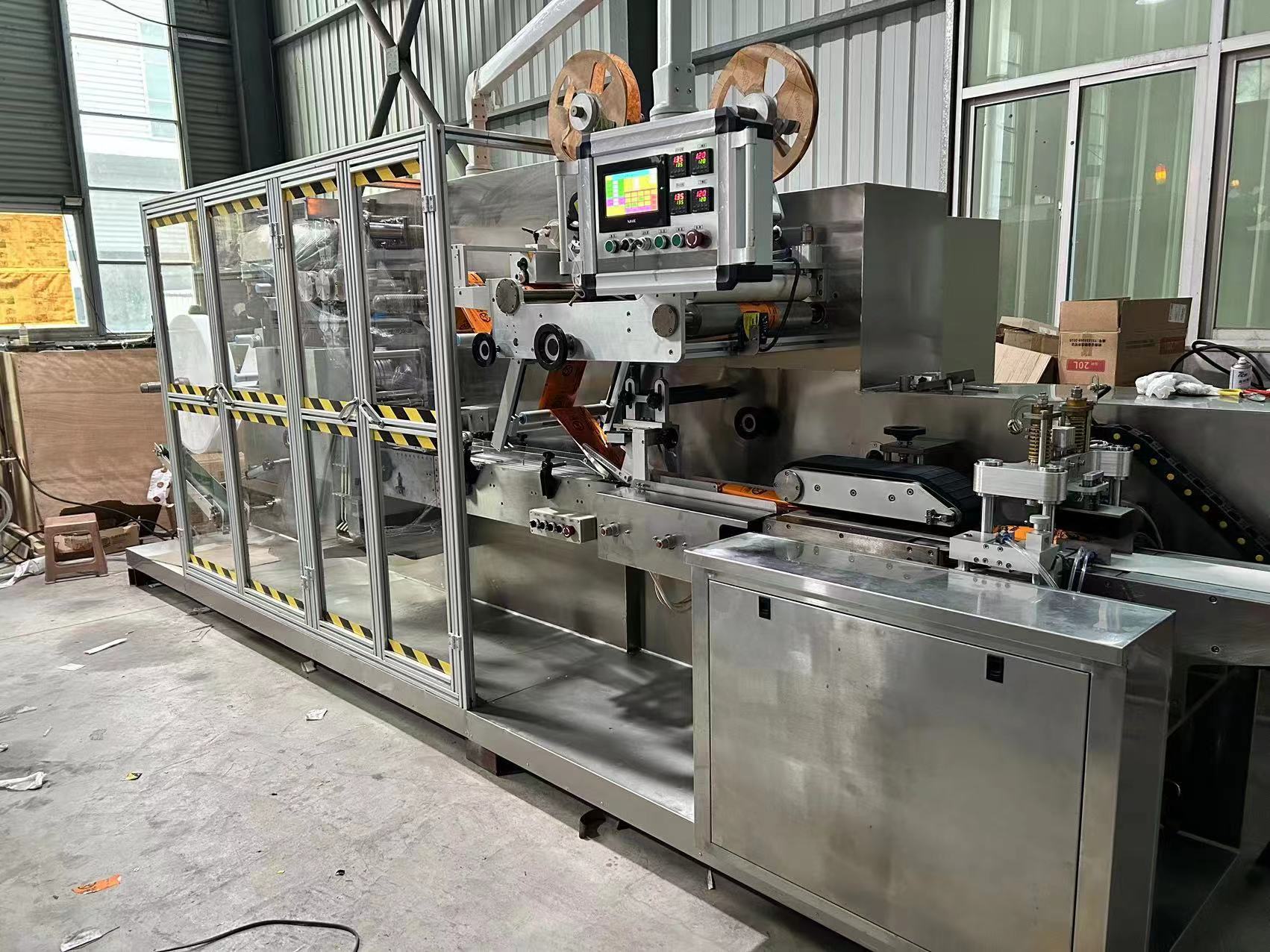

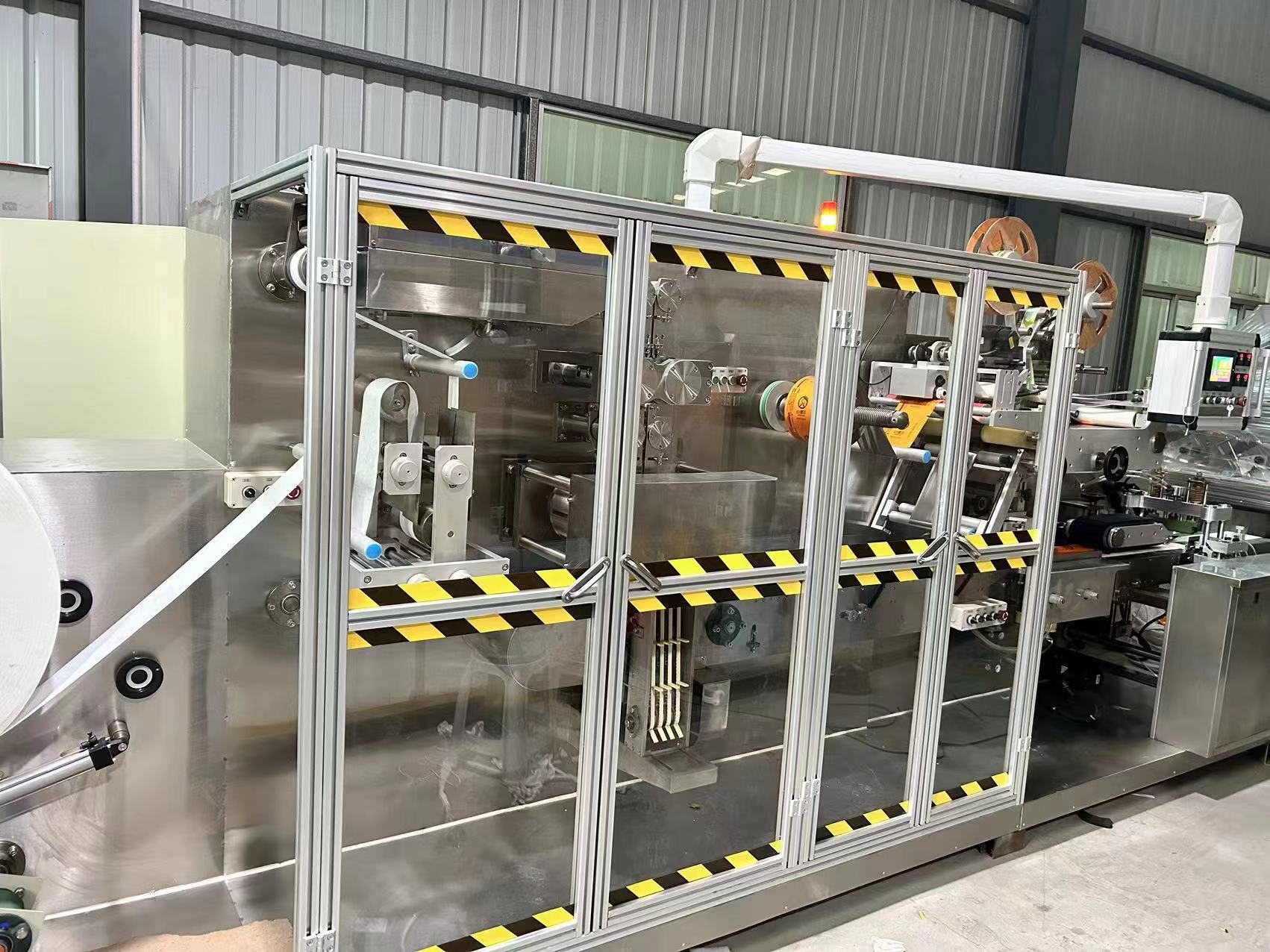

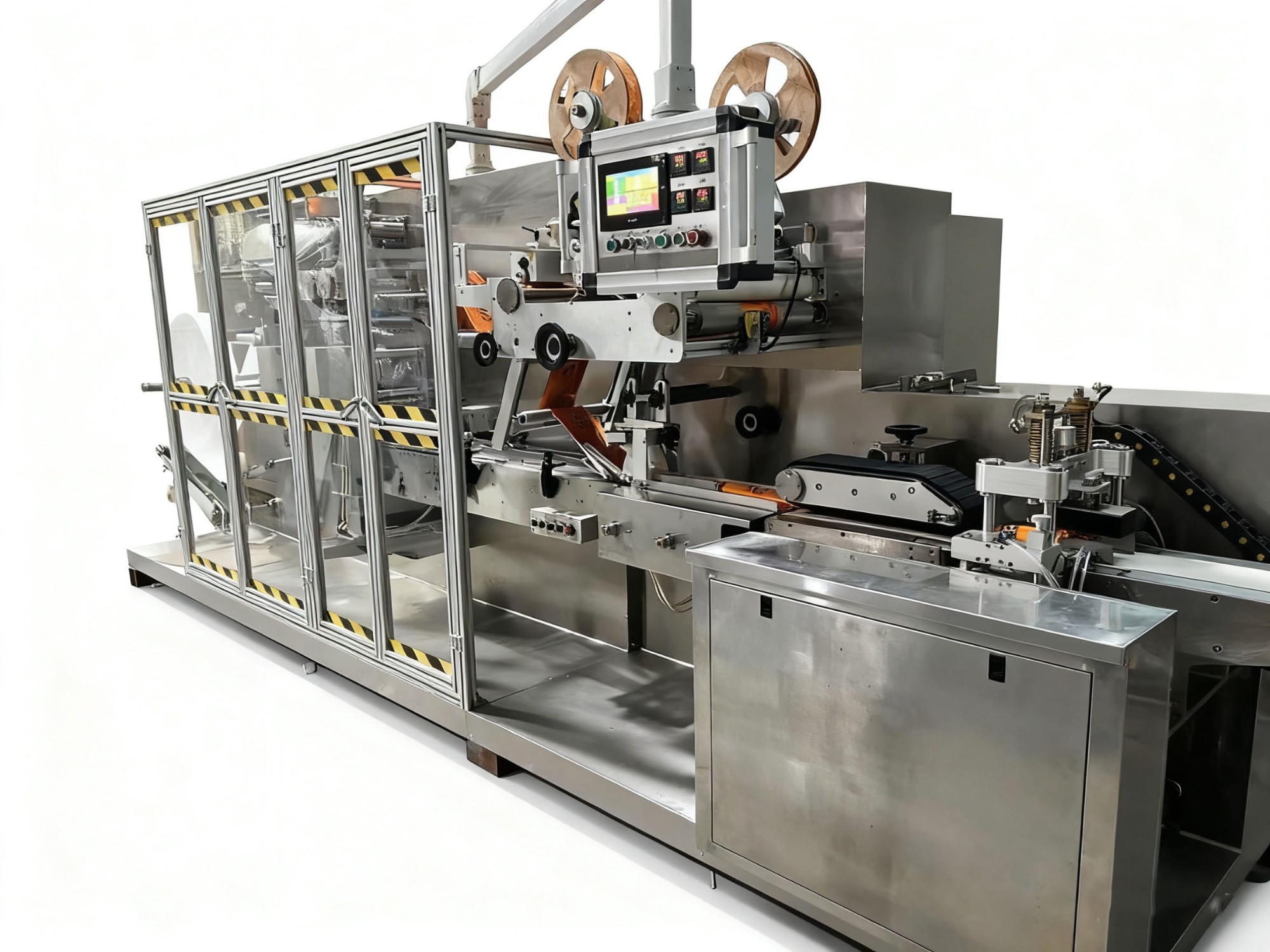

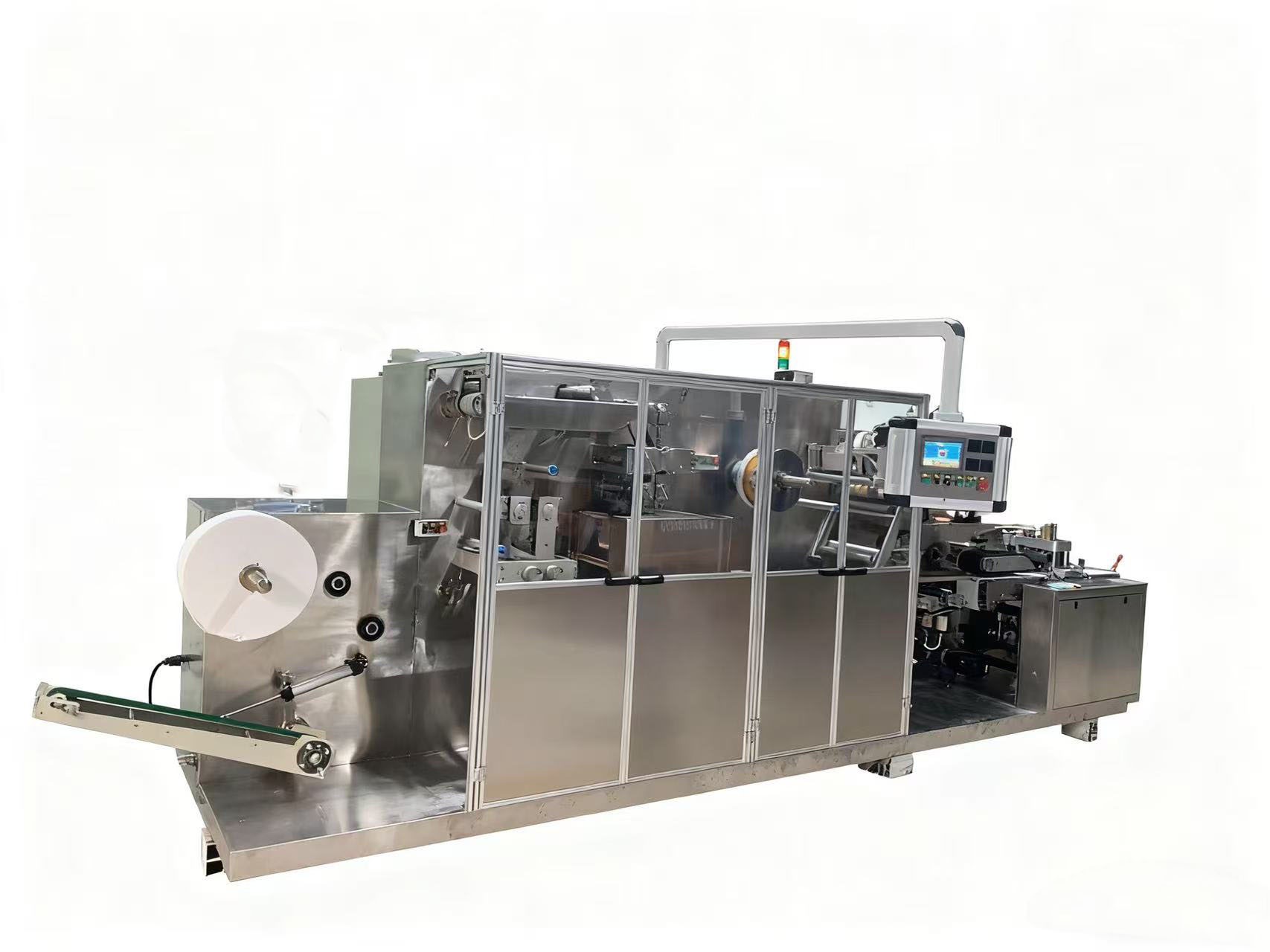

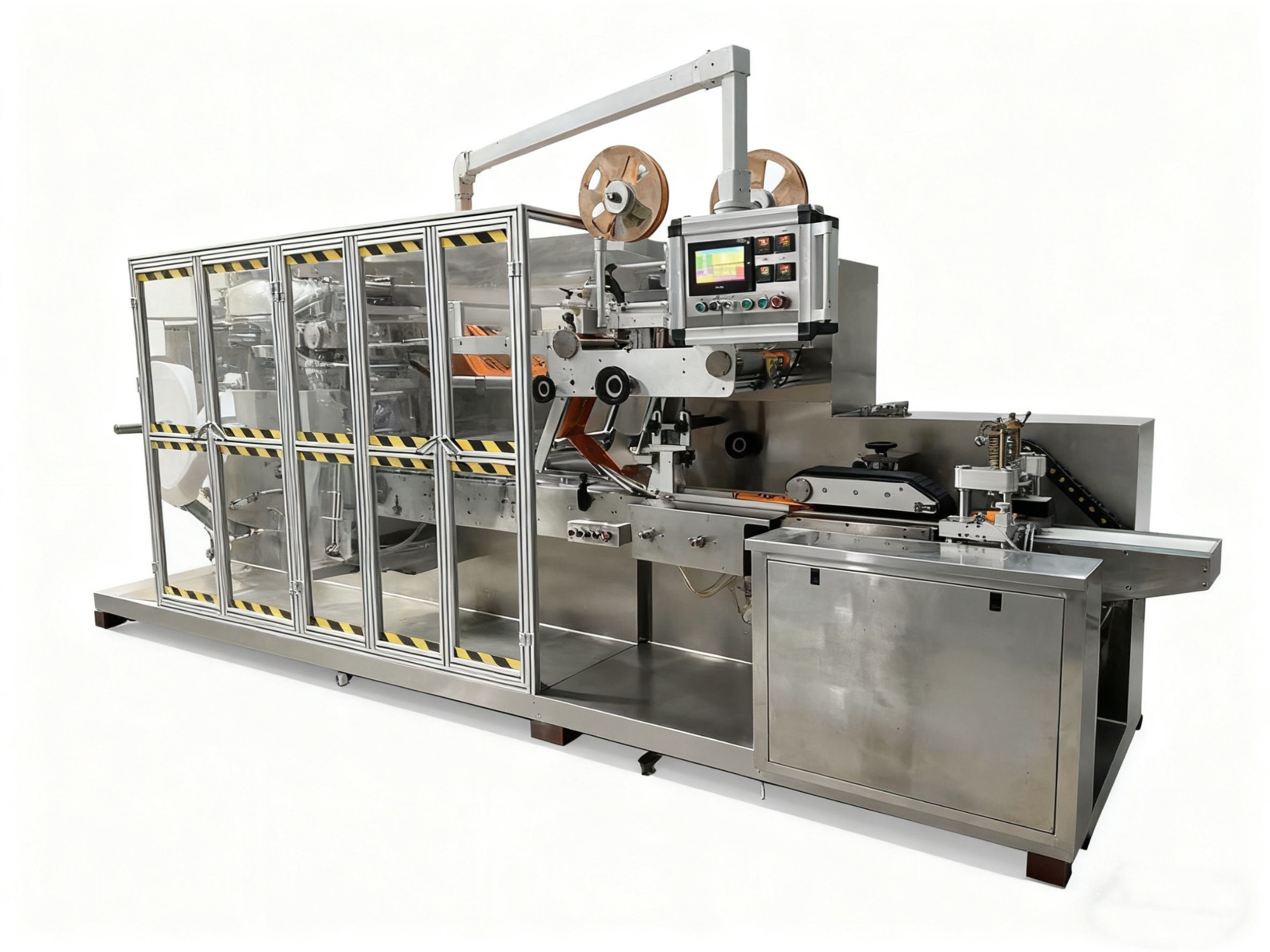

CW-2020G Fully automatic portable wet wipe folding and packing machine

1. Product parameters

Product Type	Disinfectant Wipes , Cosmetic Wipes , and Cleansing Wipes
Production speed	500-600 pieces/minute
Number of pieces per pack	5-30 pieces/pack
Applicable materials	spunlace non woven, degradable materials
Material weight	35 -80 grams/m2
Working voltage	380V 50HZ
Power	19KW
Raw material roll width	140-200mm
Unfolded size (mm)	( 140-200) x ( 140-200) ( L x W)
Folded size (mm)	(75- 100) x (50-100) ( L x W)
Packaging film	PE & PET, OPP & PE (aluminized film), OPP & CPP, PE T& CPP (aluminized film)
Humidification system	Mixing bucket with agitator, spray, soaking mode
Liquid storage tank	400Lx1
Machine size (mm)	5100× 1300× 2100(L×W×H)
Machine weight	3000kg

2. Production flow chart

Automatic unwinding→ Synchronized fabric feeding→ Longitudinal folding→ Soaking and humidifying→ Cut off and fold in half→ Stack counting→ Automatic packing→ Online coding→ Automatic hole opening→ Automatic labeling→ Vertical heat sealing→ Automatic angle inset→ Product air pressure→ Horizontal heat sealing and cutting → Finished product output

3. Production description

This machine is used to produce portable wet wipes, the number of that can be adjusted from 5 to 30 pieces per pack, to meet the needs of small packaging that people carry with them when they go out. Types of wipes include baby wipes, cosmetic wipes, specialty wipes and cleaning wipes. This model is a single-channel design, man-machine interface, convenient and fast parameter setting, simple operation of the production line, high stability, and stable speed of 50-60 bags per minute.
