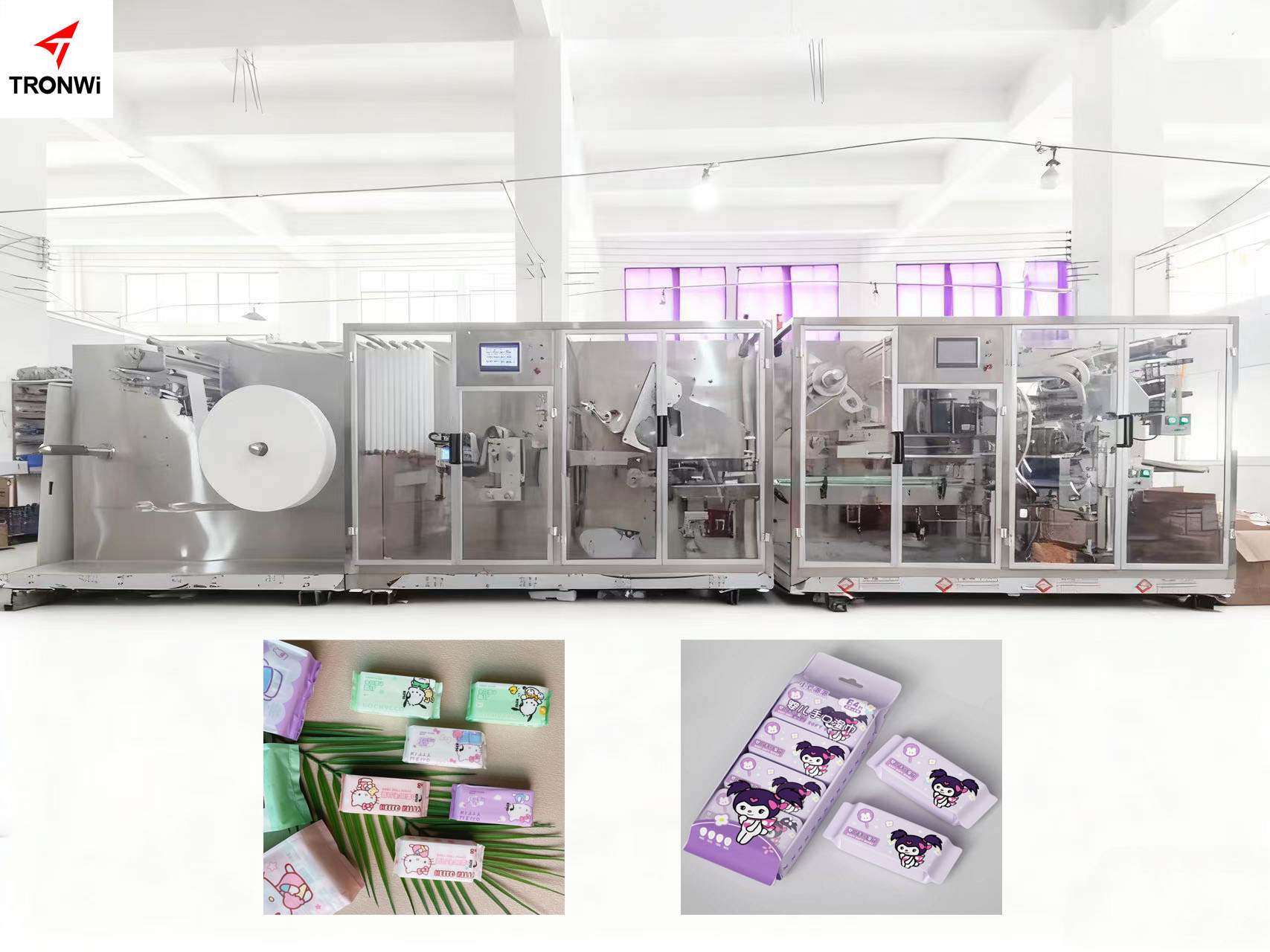

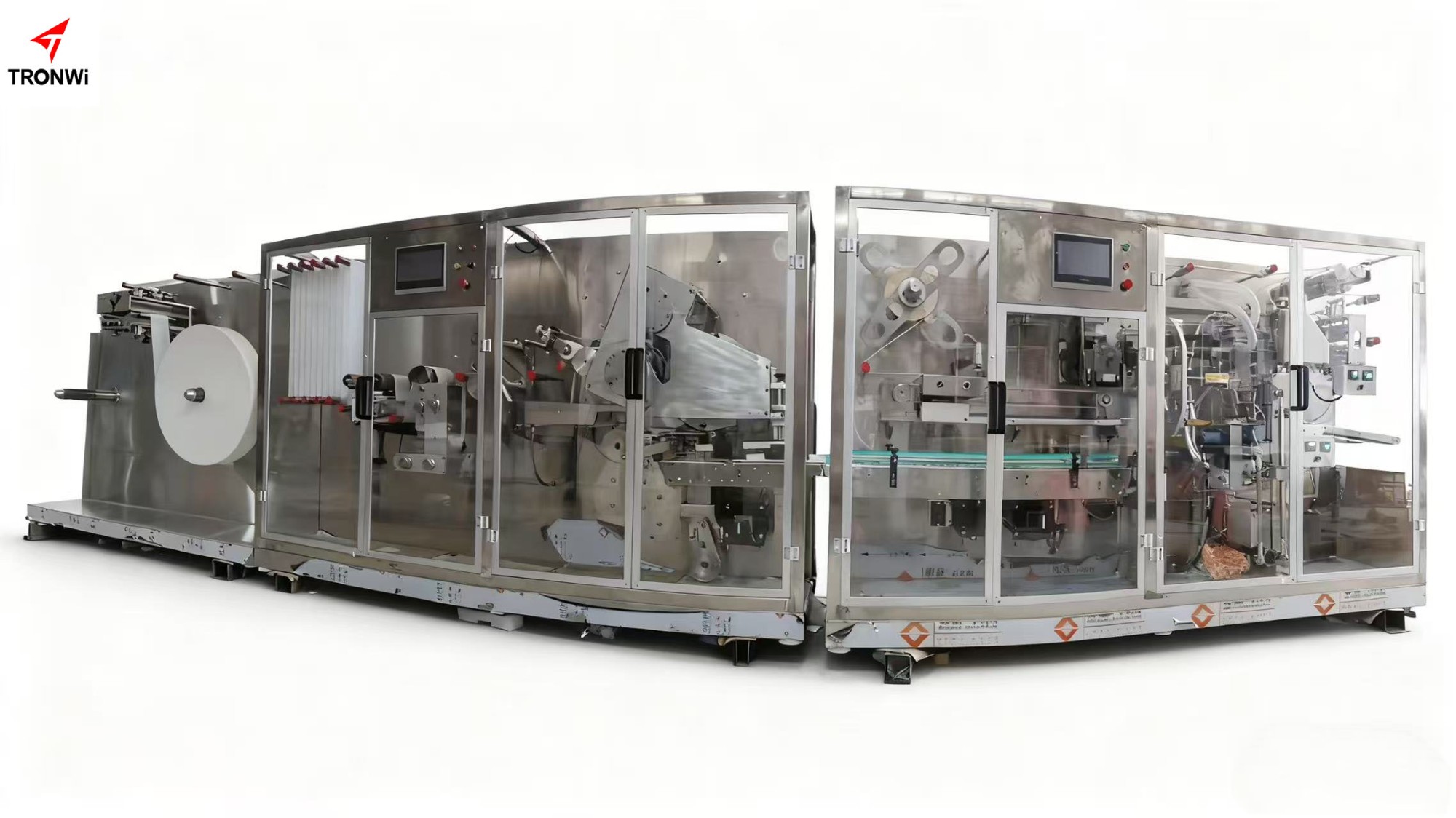

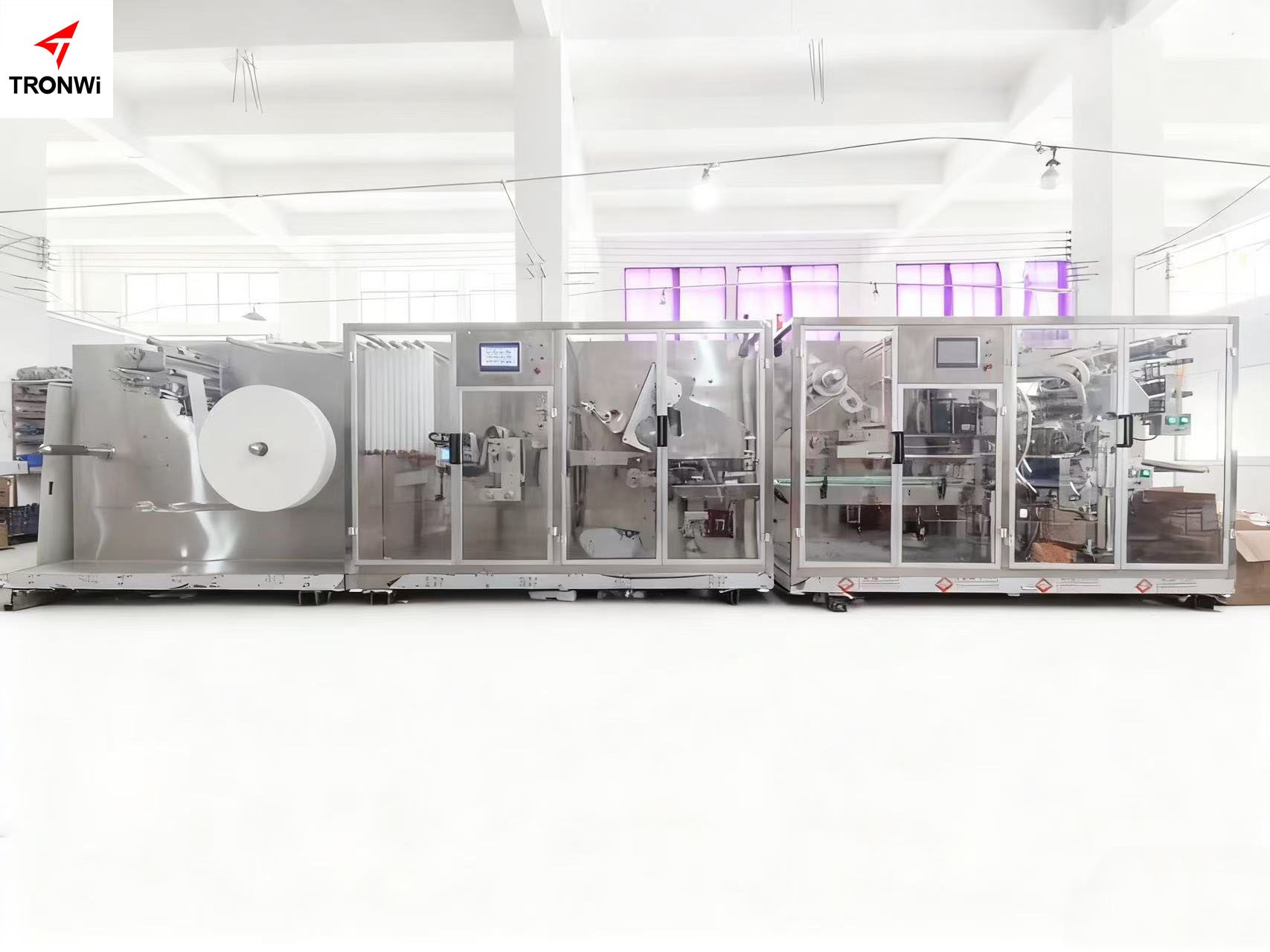

Ultra super mini wet wipes folding and packaging machine

Ultra super mini wet wipes folding and packaging machine

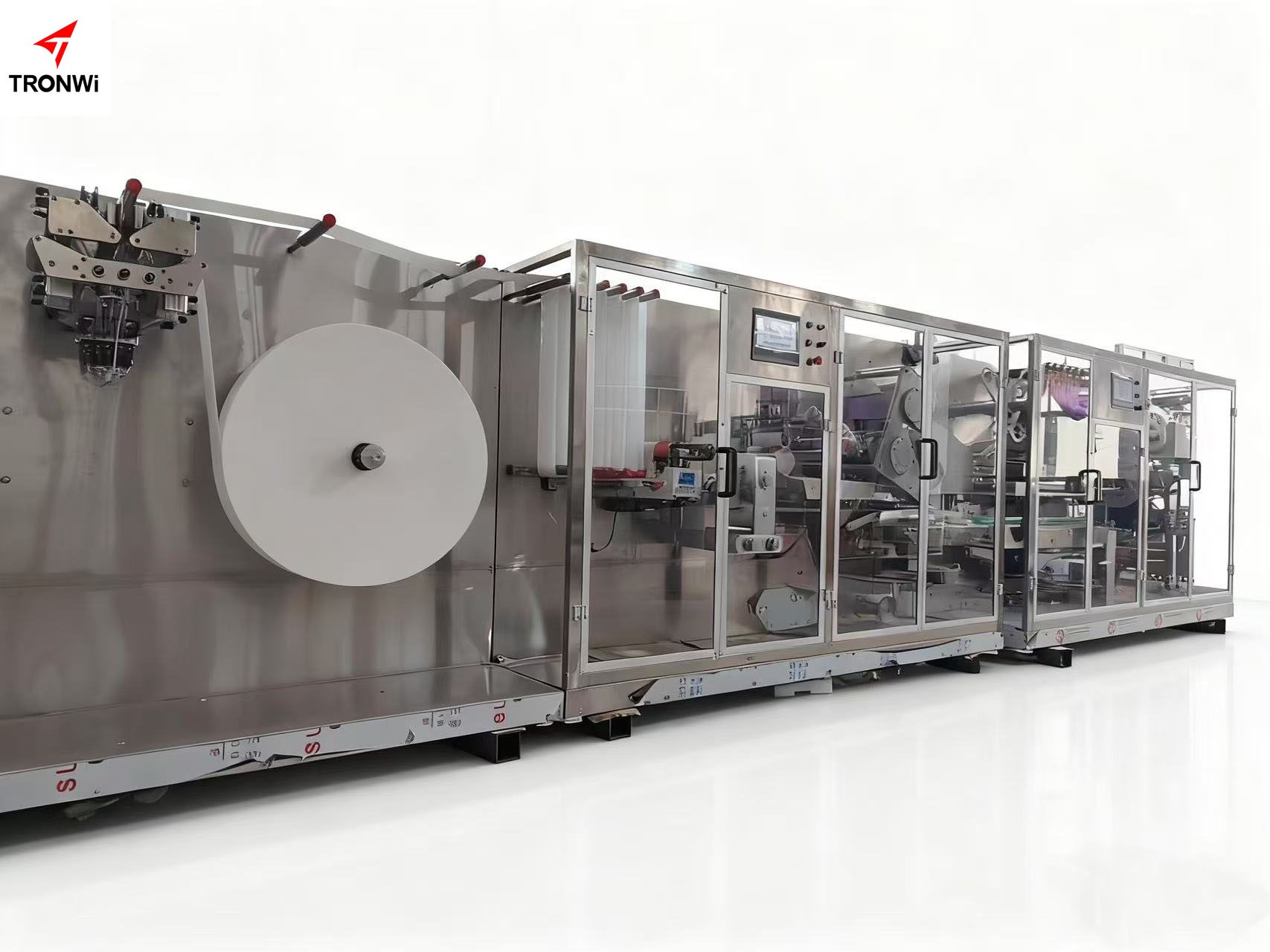

CW135-206 Fully automatic super mini wet wipes folding machine

Production Process: Raw material unwinding → Web correction → Folding → Humidification → Cutting → Stacking → Finished product output

Main Technical Parameters: (Suitable for wet wipes production: 5-30 wipes)

1-Production Speed: 450-650 wipes/min

2-Power Supply: 380V 50Hz

3-Total Power: 10kW

4-Applicable Materials: Spunlace non-woven fabrics, hot-rolled non-woven fabrics

5-Material Weight: 35-80g/㎡

6-Product Dimensions: Length 135-206mm, Width 50-90mm

7-Counting Method: Automatic counting, variable section length counting system

8-Control System: Full servo and PLC control system

9-Net Weight: 3000kg

10-Dimensions: 5000×1150×1750mm (L×W×H)

11-Mixer Tank Dimensions: 800×800mm (Diameter×H)

12-Capacity: 400L

 CW-BZJ Fully automatic super mini wet wipes packing machine

Production Process: Bag Making - Wet Wipes Queuing - Feeding - Pushing - Sealing - Cutting - Finished Product Output

Main Technical Parameters:

1-Product Type: Mini Wet Wipe Packaging Machine

2-Production Speed: 45-60 bags/minute

3-Wet Wipe Length: 65-110mm

4-Applicable Materials: CPP, PE Film, Paper-Plastic Film

5-Original Packaging Film Specifications: (38-120) x ￠600 (Width x Diameter)

6-System: Servo Motor

7-Power Supply: 380V 50Hz

8-Power: 11kW

9-Net Weight: 2500kg

10-Dimensions: 2800 x 1100 x 1700mm (Length x Width x Height)
