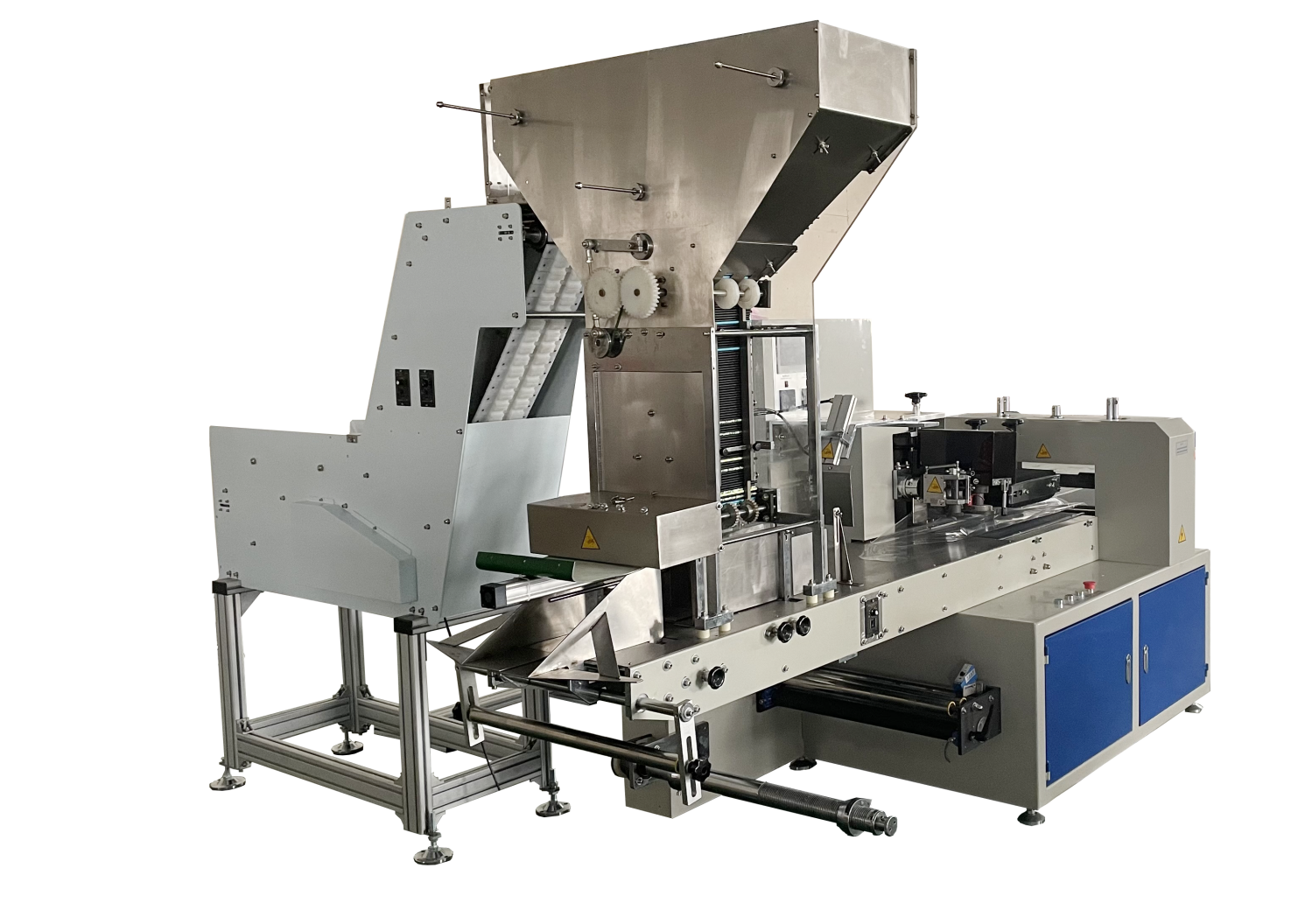

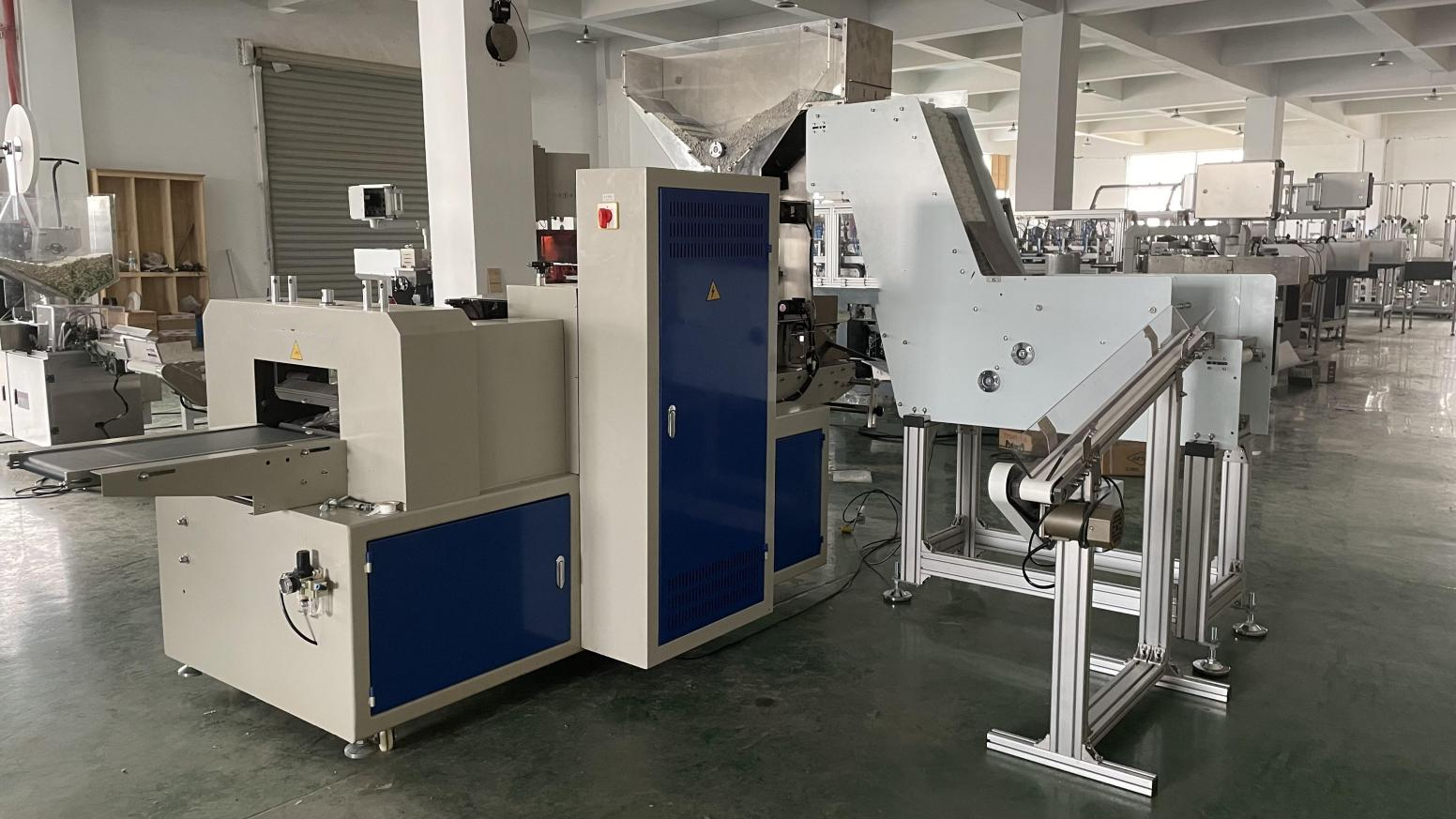

Automatic group bulk PP PLA plastic tube straw packing machine

Film thickness

0.02-0.06mm

Packing speed

1500 pcs/min

Straw Diameter

4-12 mm(The number of packaging straws is determined according to the thickness of the straw and the model)

Packing line dimensions

3000mm*1300mm*1300mm

Power

3.0kw

Weight

800kg

PLC

DVP32ES2

1

TAIWAN DELTA

Screen

DOP-107BV

1

TAIWAN DELTA

Air switch

DZ47-60-3PC20

1

ZHENGTAI

Air switch

DZ47-60-2PC10

1

ZHENGTAI

Air switch

DZ47-60-1PC10

3

ZHENGTAI

Servo drive

ASD-A2-1021-L

1

TAIWAN DELTA

Servo drive

ASD-A2-0421-L

1

TAIWAN DELTA

Servo drive

0.4KW

1

TAIWAN DELTA

Servo drive

1KW

1

TAIWAN DELTA

Adjust speed motor

100YT200GV22（1：10）

1

JINGYAN

Cylinder

9

JIAERLING

Temperature meter

2

YATAI

Magnetic valve

9

ARTAC

Solid

DC5-32V

2

DONGQI

Crystal Valve

ZH-8YR-A

1

ZHENHONG

Relay

ZH-5YR-A

1

ZHENHONG

AC

CJX2-1810

1

ZHENGTAI

Power

PMC24V50W1AA

1

DELTA
