Automaic single piece PP PLA straw packing machine

This model is used to pack single piece of straw, the speed can reach, with printing:300pcs/min
without printing:500pcs/min.

CW03-P Automatic Single Piece PP PLA Straw Packing Machine

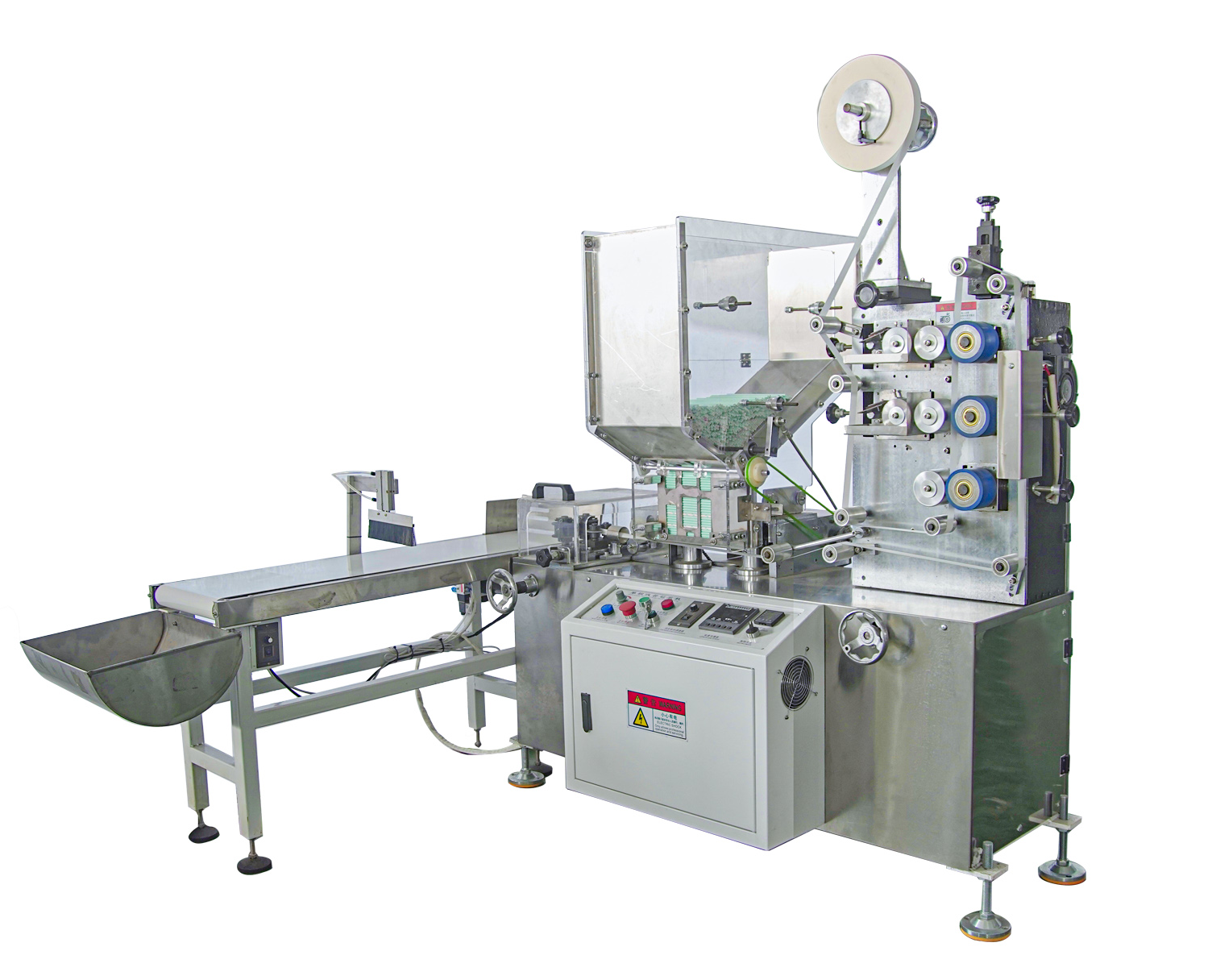

packing machine.png

Model		CW03-P
Suitable straw outer diameter		5-12mm
Straw length(mm)		140-260mm according to required of client
Package size		Paper/BOOP film,3 sides sealing width 25mm-30mm
Real production speed		With printing:300pcs/min Without printing:500pcs/min
Controller		Counter and buzzers:1set Inverter: 1.1KW, Schneider Temperature controller:1set Speed meter:1set
Total power（Kw）		1.5Kw(220V)
Dimension		(L×W×H)1900×1000×1600mm
Weight		400kg
Main Features
1. Printing, feeding, and packing/wrapping can complete in one operation. 2. Double color, one color, none printing chosen, various printing style. 3. Speed adjustable, automatic operating and with automatic product counting function, product quantity may pre-set, once the pre-set value is reached，the machine will give an alarm. 4. Packing straw length is adjustable within a certain range. 5. With printing positioning tracking function. 6. This drink straw packing machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube .
