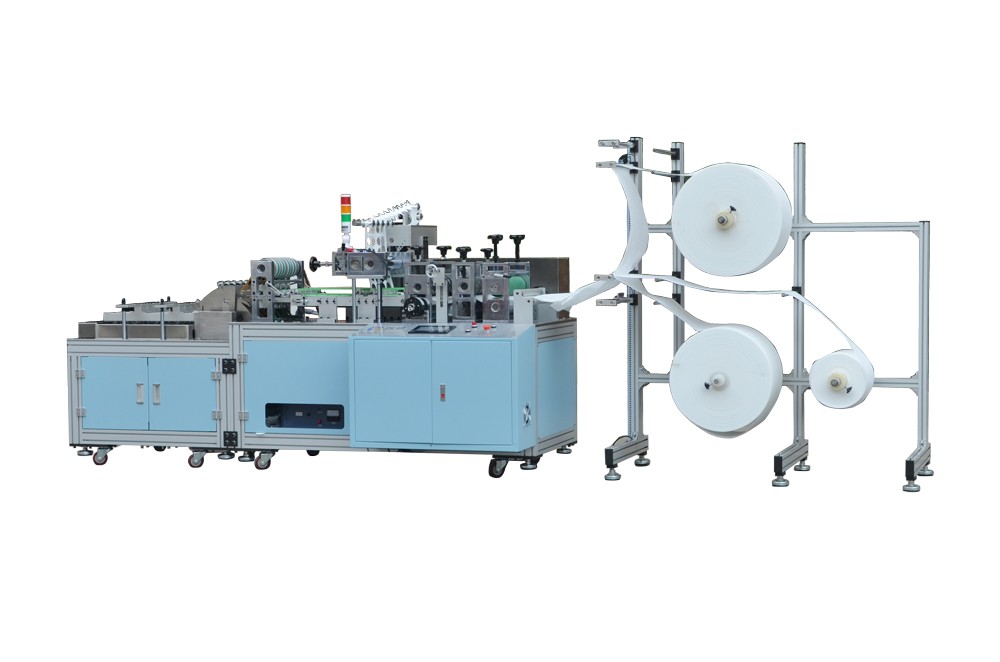

High Speed Automatic Makeup Remover Cotton Pads Machine

Cosmetic Cotton Pad Making Machine

CW-CPM800 High Speed Automatic Makeup Remover Cotton Pads Machine Cosmetic Cotton Pad Making Machine



1.Product parameters

Model No.:

CW-CPM800 Automatic Cotton Cosmetic Pads Making Machine

Voltage

380V/50Hz

Power

9000W

Air pressure

4-6 kg/cm2

Capacity

500-800pcs / min

Dimension

6500x800x1800mm (custom-made pad shape is available)


2. Main features

1. Pull tube feeding, positioning is more accurate, it can control to a minimum width of raw materials and save cost.
2. The length of product is controlled of uniform size, deviation ± 1mm, it can effectively control the product length, the
slice of product not only to meet the production process requirements, but also eliminate the waste.
3. Independent feeding shelf, easy to operate and adjust the raw material.
4. High degree of automation, low requirement of worker, just need to put on the raw material to the machine and take out the finished.
5. Automatic counting, can active control production efficiency and production schedule.
6. Inverter control, the production speed can be adjusted according to the request.
6. Rotary control box, the direction of the control box can be adjusted according to the request.
7. Automatic scraps collection, reduce the workload.
8. Machine frame adopt alloy aluminum, beautiful shape and not rust.
9. Adopt Taiwan ultrasonic system, Japan vibrator.
10. Adopt Delixi high quality 750 inverter, stable performance, and easy to operate.
11. Adopt inverter control, equipped photoelectric detector, and make the cutting angle more stable.
12. Automatic ultrasonic welding roller is made of high quality steel DC53, Increasing the use life, and more durability.
13. The ultrasonic mold is made of Cr12MoV material, compare to common mold, it is more hardness, and suitable for long time working, not easy out of shape.

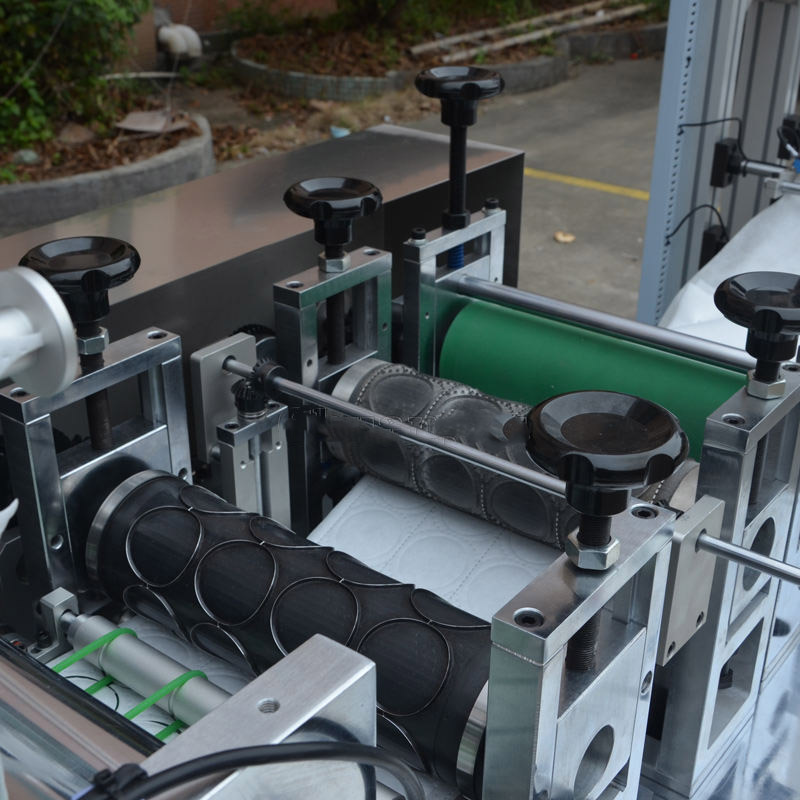

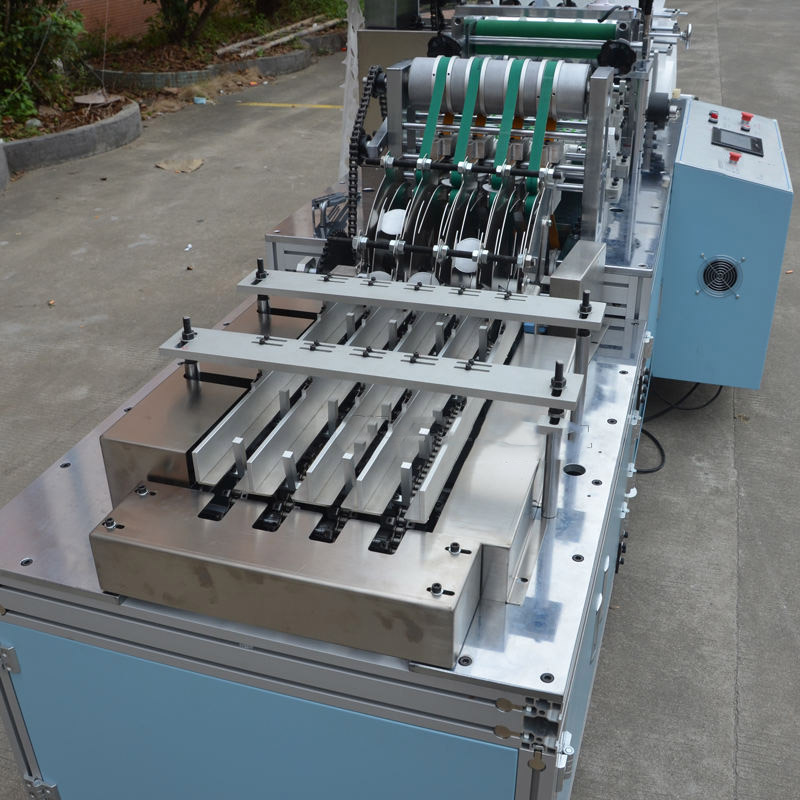

3. Detailed photos

cotton pad machine (3).jpg



4. Factory shows

TRONWi factory.jpg






5. Contact information


INQUIRY
