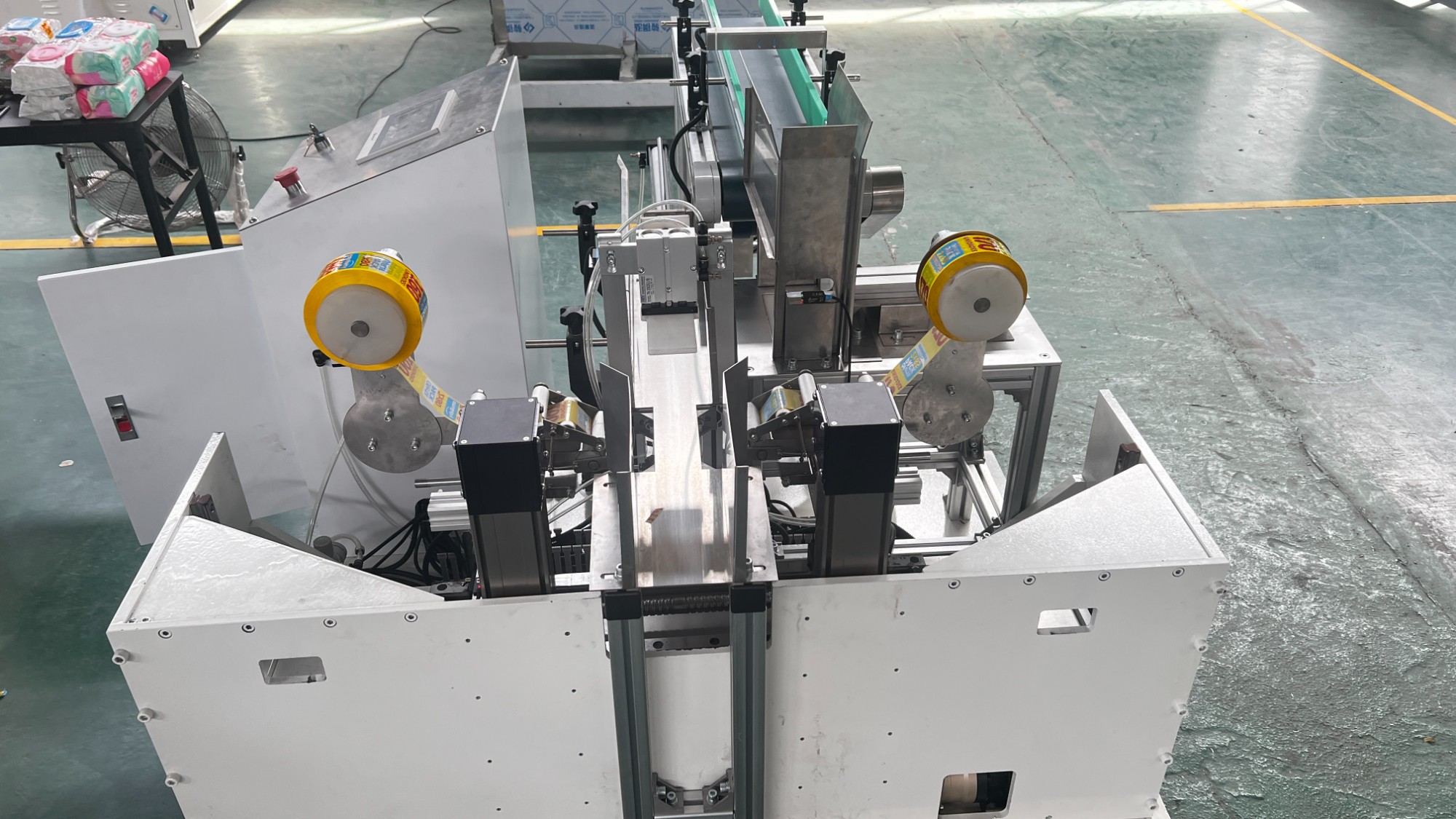

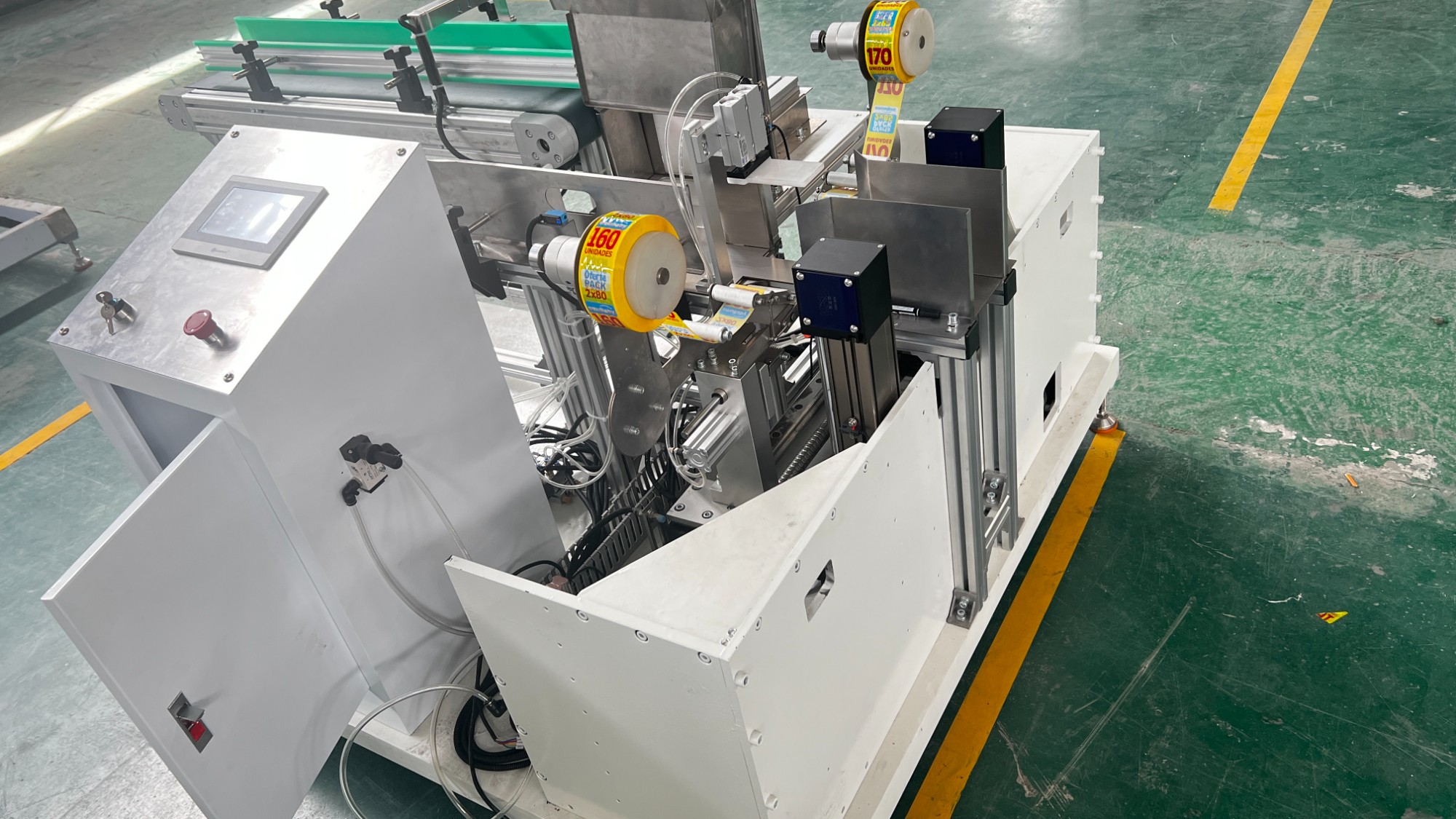

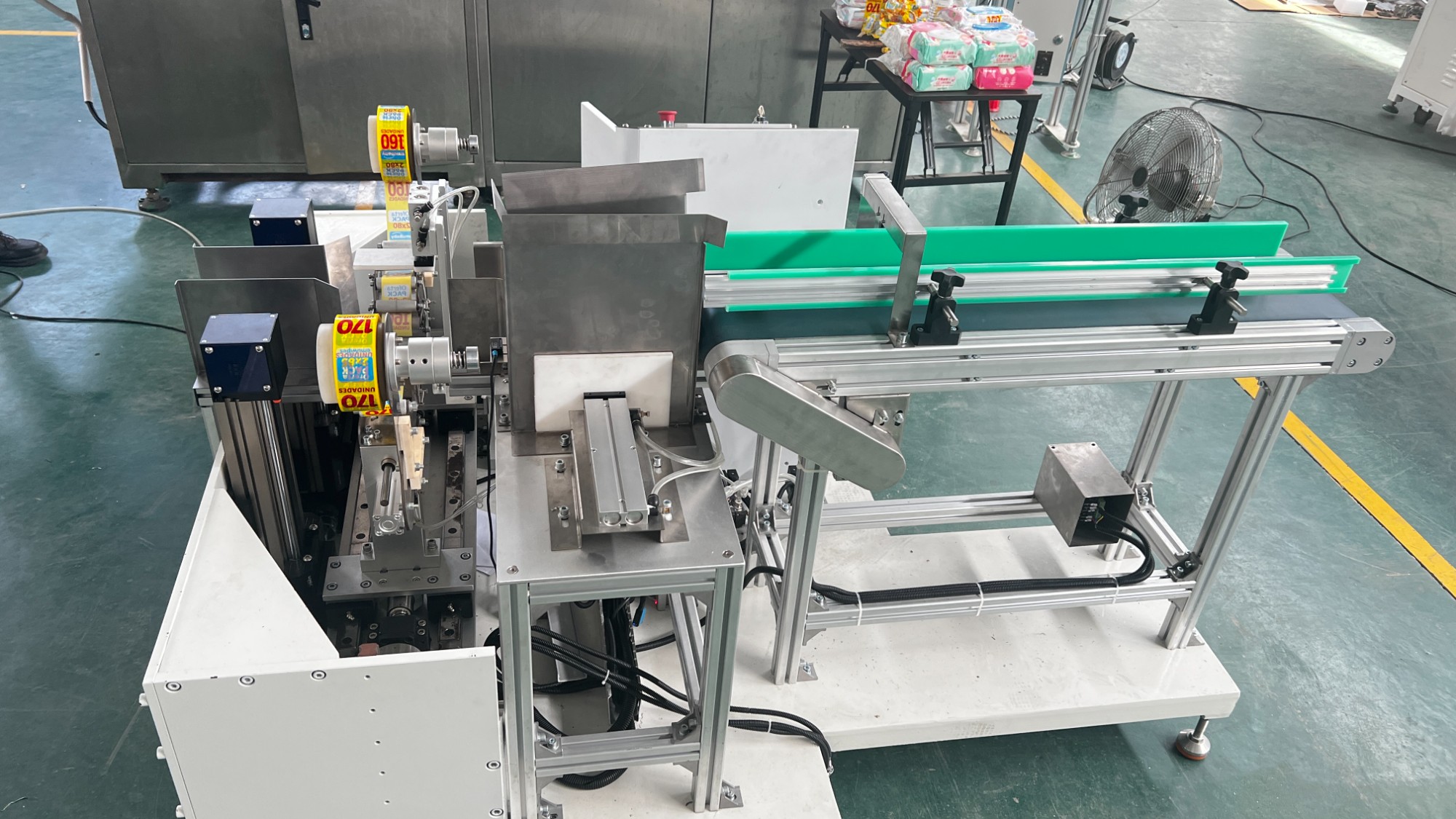

Automatic Wet Wipe Bag Double Sides Winding and Wrapping Machine with Tape

Automatic Wet Wipe Bag Double Sides Winding and Wrapping Machine with Tape

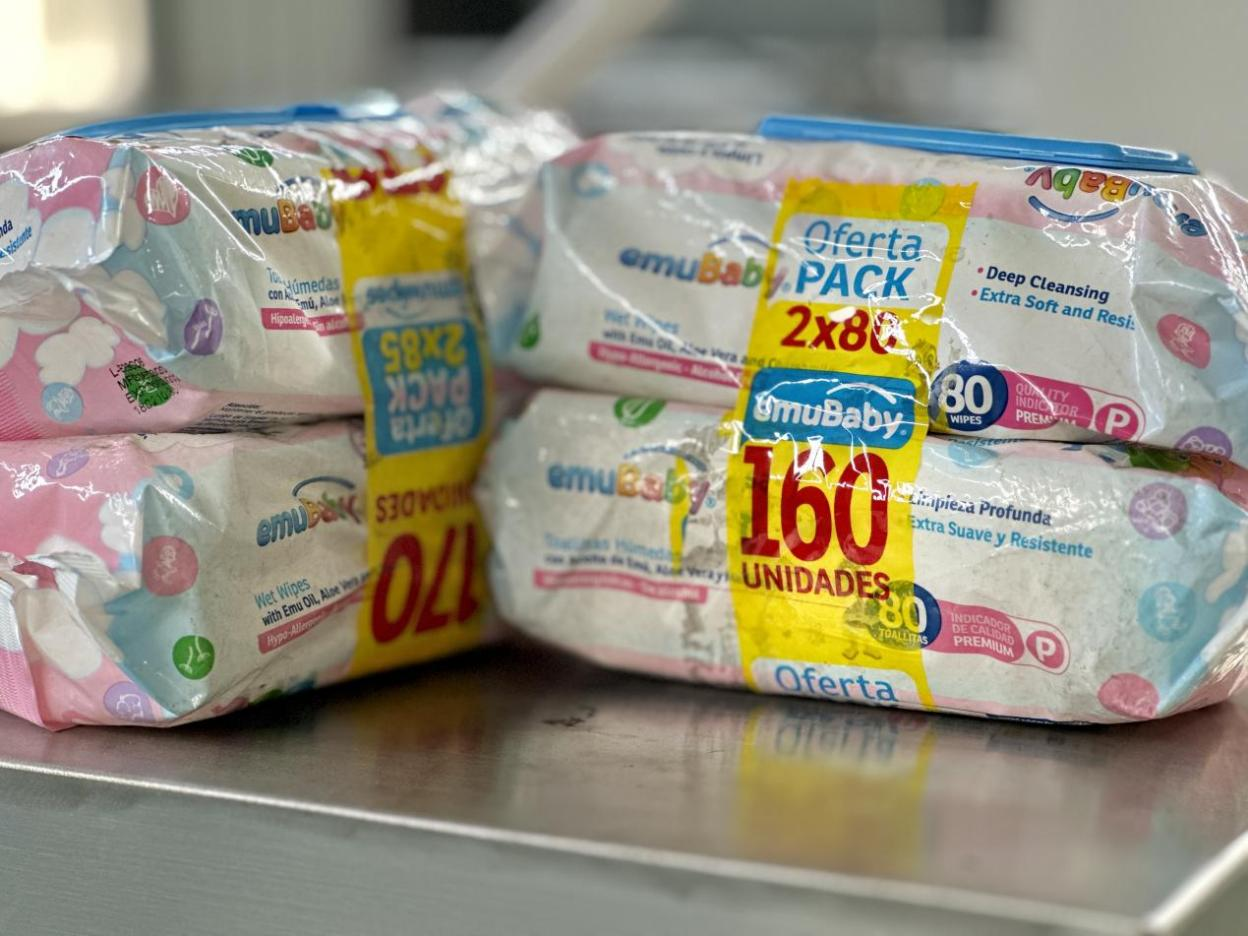

This is a new design model to use tape to wrap 2-3 packs wipes that is easy to carry, simply operation, low cost.

Automatic Wet Wipe Bag Double Sides Winding and Wrapping Machine with Tape

1. Product Parameters

Design speed	30 packs (2 bags /pack)
Production speed	15-25packs(2 bags /pack)
Product width	90mm-120mm
Product quantity	2-3 bags(it cannot exceed the design height)
Product height	160mm
Air pressure	0.4-0.8Mpa
Machine size	1832x1350x935mm(LWH)
Weight	1000kg

2. Product Features

1- Adhesive tape to each side of the product.

2- It is delivered by conveyor belt with count system.

3- Palletizing of the lower feeding cylinder.
4- Side push 1 cylinder material management.
5- Side push 2 cylinder feeding material.
6- The upper pressure cylinder is pressed and fixed.
7- The two sets of tape wrapping mechanisms are control actions.
8- Two sets of cutter cylinders cut off the adhesive tape after the lifting mechanism sticks the product height.
9- Scientific design,compact structure,less floor space,easy operation and maintenance,one person can operate multiple sets machine.
10- The main components are processed by four-axis machining center machine tools,and the electrical components adopt branded.
11- Man-machine interface operation control.
12- Finished product output.
