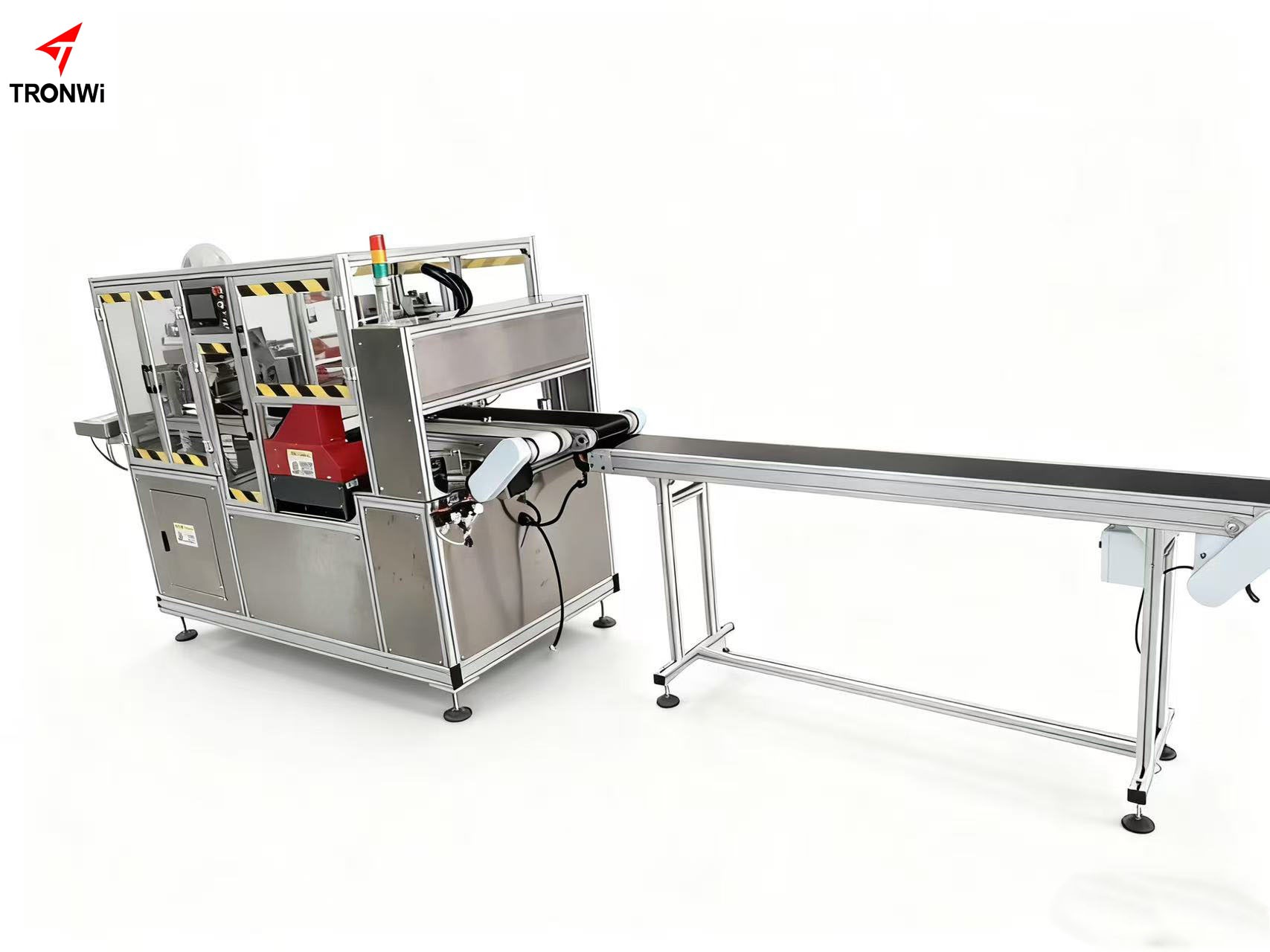

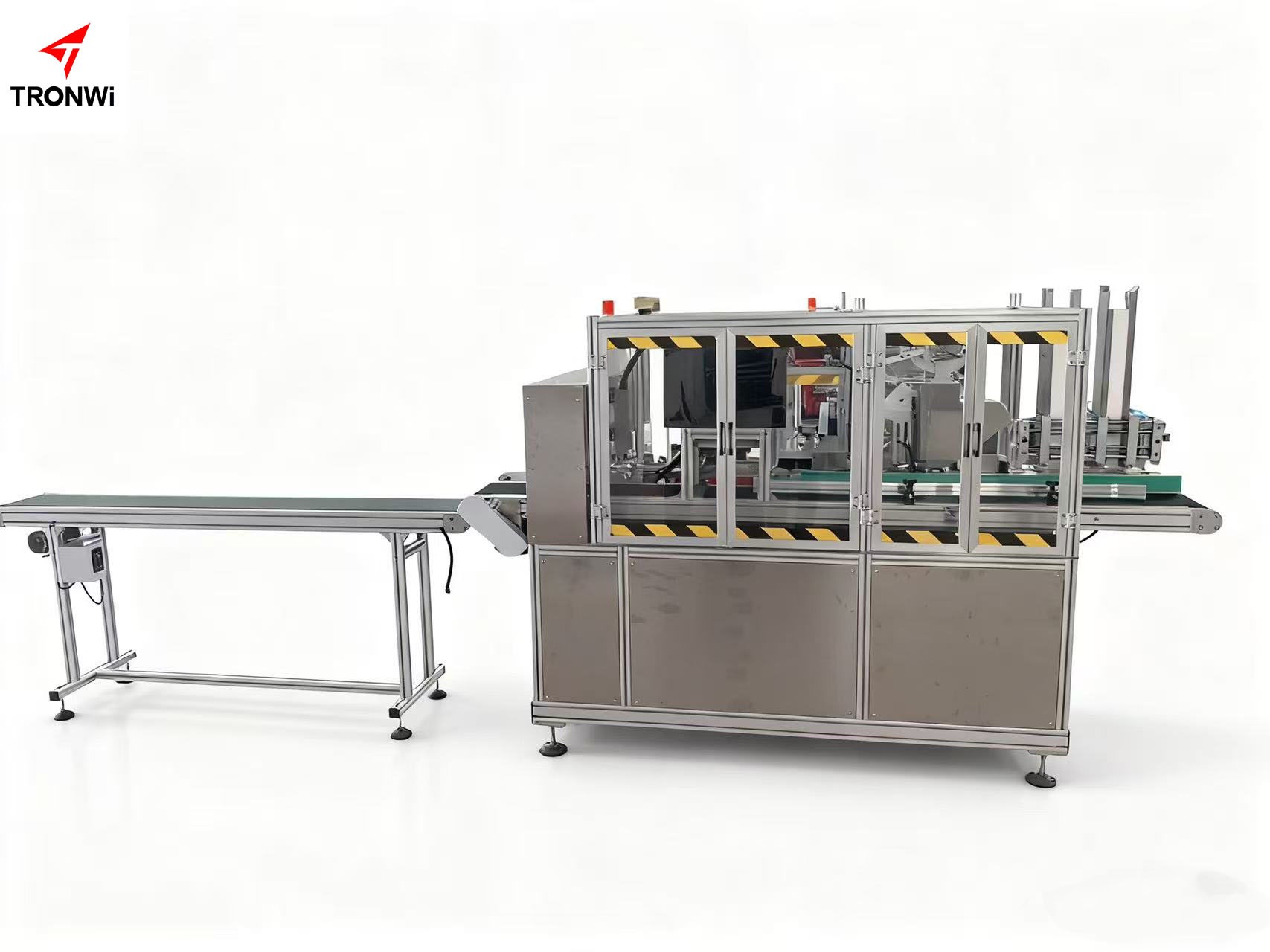

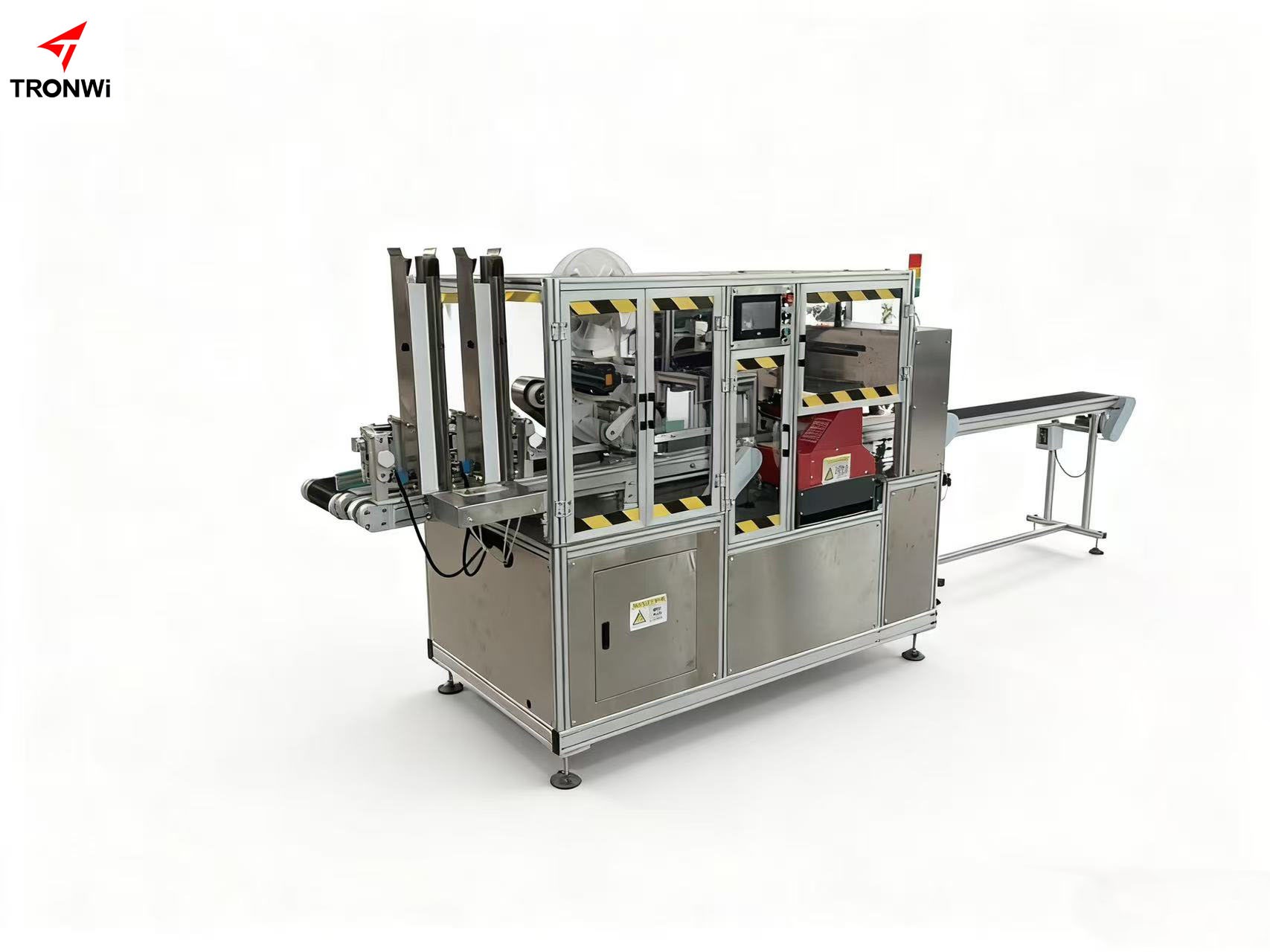

Fully automatic upgraded wet wipes lid applicator gluing machine

(1) Main technical parameters

1. Power supply: three-phase 220V, 50Hz

2. Power: about 5KW

3. Design speed: 50 packs/minute

4. Production speed: 40-45 packs/minute

5. Cover (mm): width ≤80, length ≤120

6. Label (mm): width ≤60, diameter ≤300

7. Material: plastic cover and label, hot melt adhesive

8. Machine size (mm): 2600*1000*1660 (length*width*height)

9. Servo motor control + vision + cover deviation correction control + automatic labeling control + automatic gluing

10. The head can be moveable and rotated according to the position of the finished product.

(2) Main features

1. 2 cover slots

2. Synchronous belt cover feeding mechanism (servo control).

3. One labeling machine, automatic stop when no cover.

4. Servo automatic cover removal and cover application robot.

5. Customized plastic box.

6. Guide mechanism.

4. Factory shows
